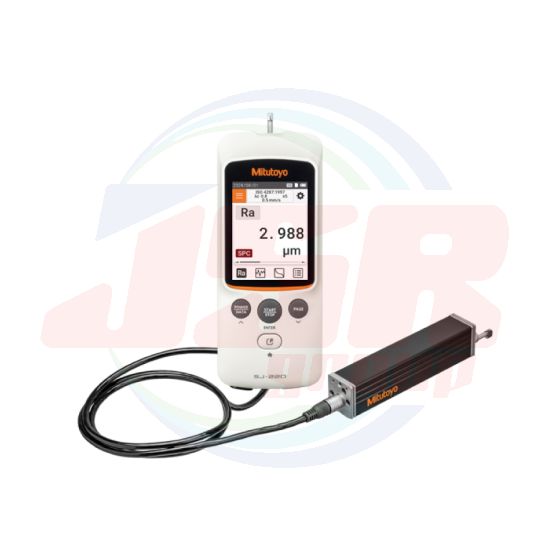

A portable surface roughness tester designed like a hand tool for easy on-site use
The SJ-200 series of portable surface roughness measuring instruments that has contributed to industrial development and technological progress through precision measurements, has evolved further still.
While maintaining excellent portability and ease of use on-site, it also provides touch screen functionality for intuitive operability.
Equipped with a built-in battery, it can perform measurements in environments where power is not available and can be used approximately 1000 times on a full charge.
Cableless and paperless work is made possible by using the U-WAVE-TIB, a Mitutoyo wireless data transmitter.
This is a user-friendly device that provides compatibility and versatility to meet diverse manufacturing needs.
SPECIFICATIONS
| Model | Standard drive unit | Retractable drive unit | Transverse tracing drive unit | |||||
| SJ-220 (0.75 mN type) |
SJ-220 (4 mN type) |
SJ-220 (0.75 mN type) |
SJ-220 (4 mN type) |
SJ-220 (0.75 mN type) |
SJ-220 (4 mN type) |
|||
| Order No. | inch /mm | 178-741-13 | 178-742-13 | 178-743-13 | 178-744-13 | 178-745-13 | 178-746-13 | |
| Measuring range |
Traverse length*1 | 17.5 mm | 5.6 mm | |||||
| Detector | Range | 360 μm (-200 μm to +160 μm) | ||||||
| Range/ Resolution |
AUTO / depending on the measurement range, 360 μm/3.5 nm, 100 μm/0.9 nm, 25 μm/0.2 nm | |||||||
| Tracing speed | During measurement: 0.25 mm/s, 0.5 mm/s, 0.75 mm/s, 1 mm/s During return: 1 mm/s | |||||||
| Measuring force | 0.75 mN | 4 mN | 0.75 mN | 4 mN | 0.75 mN | 4 mN | ||
| Stylus tip | Radius | 2 μm | 5 μm | 2 μm | 5 μm | 2 μm | 5 μm | |
| Angle | 60° | 90° | 60° | 90° | 60° | 90° | ||
| Skid force | Less than 400 mN | |||||||
| Applicable standards | JIS B 0601:1982, JIS B 0601:1994, JIS B 0601:2013, JIS B 0671:2002, JIS B 0631:2000, ISO 4287:1997, ISO 13565:1996, ISO 12085:1996, ISO 21920:2021, ASME B46.1, VDA2006 |
|||||||
| Assessed profiles | Primary profile (P), Roughness profile (R), DF profile, R-Motif | |||||||
| Filters | 2CR75 / PC75 / Gaussian | |||||||
| Cut-off length | λc | 0.08, 0.25, 0.8, 2.5, 8 mm | 0.08, 0.25, 0.8, 2.5 mm | |||||
| λs*2 | 2.5/NON, 2.5/NON, 2.5/NON, 8/NON, 8/25/NON (μm) | 2.5/NON, 2.5/NON, 2.5/NON, 8/NON (μm) | ||||||
| Sampling length | 0.08, 0.25, 0.8, 2.5, 8 mm | 0.08, 0.25, 0.8, 2.5 mm | ||||||
| Number of sampling lengths | ×1, ×2, ×3, ×4, ×5, ×6, ×7, ×8, ×9, ×10, Arbitrary (0.1 to 16.0 mm / 0.01 mm interval) |
×1, ×2, ×3, ×4, ×5, ×6, ×7, ×8, ×9, ×10, Arbitrary (0.3 to 16.0 mm / 0.01 mm interval) |
×1, ×2, ×3, ×4, ×5, ×6, ×7, ×8, ×9, ×10, Arbitrary (0.1 to 5.6 mm / 0.01 mm interval) |
|||||
| LCD specifications | 2.8" TFT color LCD touch panel with a backlight (320×240dot) Touch screen functions: Touch, swipe, flick, long press Backlight functions: Backlight adjustment (from 5 levels), ECO mode (The backlight turns off if the touch screen is not operated for 10 seconds) |
|||||||
| Display languages | 25 languages (Japanese, English, German, French, Italian, Spanish, Portuguese, Korean, Traditional Chinese, Simplified Chinese, Czech, Polish, Hungarian, Turkish, Swedish, Dutch, Russian, Slovenian, Romanian, Bulgarian, Finnish, Thai, Vietnamese, Indonesian, and Malay) |
|||||||
| Measurement result display | The number of calculation results and display orientations can be switched depending on the application. For trace display, the most recent 10 calculation results for a parameter can be displayed. Vertical display: 1-step display / 3-step display / trace display Horizontal display: 1-step display / 4-step display / trace display *The horizontal display is invertible left-right. |
|||||||
| Printing function | If an optional RS-232Ccable and a thermal printer are used, measurement conditions, calculation results, calculation results for each sampling length, a measurement profile, and BAC/ ADC profiles can be printed. (Print scale: Horizontal: ×1 to ×1K/AUTO, Vertical: ×10 to ×100K/AUTO) |
|||||||
| External I /O | USB I/F (Type-C) / Digimatic output / RS-232C I/F / Foot SW I/F / BLE I/F *Digimatic and RS-232C and BLE cannot be used parallelly. |
|||||||
| Functions | GO/NG judgment | Max value / 16% rule / Mean rule (Only “Mean rule” can be selected in ASME. “16% rule” cannot be selected in VDA) |
||||||
| Storage | • 10 sets of measurement conditions and 1 measurement result can be stored in the display unit. • microSD card (optional): 500 sets of measurement conditions, 10000 sets of measurement results, 500 sets of image data, txt file (measurement conditions, measurement data, evaluation profile, BAC, ADC) |
|||||||
| Calibration | Ra calibration / Average calibration can be performed with multiple measurements (Max.5 times) | |||||||
| Useful functions | 1. Data key allocation function: outputs Digimatic data, saves measurement data, prints with an external printer, and saves / screen a screen shot. 2. Stylus alarm function: informs an operator that the cumulative measuring distance exceeds the preset threshold. 3. Auto-save function: allows measurement data to be automatically saved after measurement. 4. Recalculation function (This function may not be available under certain measurement conditions, for example, for λc) 5. Displayed evaluation curves can be zoomed in/out. 6. Function restriction: Access to certain functions can be limited by password setting. 7. Self-timer: Measurement start can be delayed for a set length of time. 8. Calendar function: A data and time can be set. 9. Volume control function: The key operation sound can be adjusted at 5 levels and can be turned off. 10. Function to detect detector connection 11. Hard copy function (Bitmap data can be pasted) |
|||||||
| Hardware key specifications | [POWER/DATA] key (Power-on, data output. Long press: power-off) [START/STOP] key (Measurement start and stop) [PAGE] key (Page feed. Long press: Disabling the touch panel) [HOME] key (Return to the HOME screen. Display the [Daily menu] screen) |
|||||||
| Power saving function | Auto-OFF function (Standby time can be arbitrarily set from 10 to 600 seconds. The Auto-OFF function is disabled when the AC adaptor is used) | |||||||
| Power supply | AC adapter (USB type with interchangeable AC pin adapters), Input voltage: 100 VAC to 240 VAC ±10 % (50 Hz / 60 Hz) Output rating: 5.0 VDC/2.0 A, Internal battery (Ni-MH), USB standard supported: USB 2.0 (Full speed), USB charging standard: BC1.2 The following USB ports are supported: SDP "SDP (Standard Downstream Port)", CDP "CDP (Charging Downstream Port)", DCP "DCP (Dedicated Charging Port)" |
|||||||
| Built-in battery | Charging time: Up to 4 hours (operable during charging) * The charging time above is applied when the supplied AC adapter is used. When the battery is charged via a USB connection with a PC, etc., charging may take more than four hours to complete. Number of measurable times: Approx. 1,000 times (depending on the measurement conditions with full charge) Charging temperature : 5°C to 40°C * If the ambient temperature is too high, the battery may not charge sufficiently |
|||||||

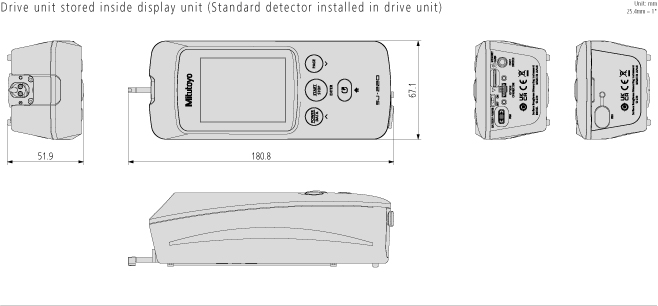

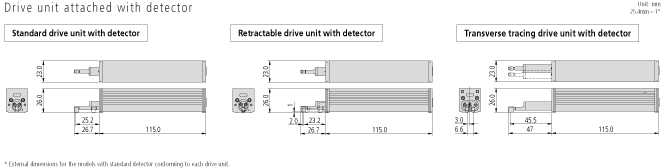

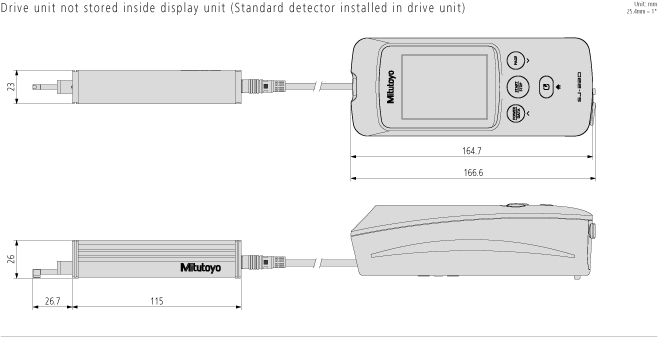

| Size (W × D × H) |
Display unit | 164.7×67.1×51.9 mm | ||||||
| Drive unit | 115×23×26 mm | |||||||
| Mass | 330 g (Display unit), 180 g (Drive unit), 7.8 g (Detector) | |||||||
| Standard accessories | 12AAY583: Handy Case 12BAA303: Connecting Cable 12BAS450: AC Adaptor 12BAS451: USB2.0 Cable 178-601-1: Roughness Specimen (mm) / (178-602-1: inch/mm) 12BAK700: Calibration Stage 12BAS476: Tool for Operating The Internal Battery Switch Manual Documentations Warranty |
12AAY583: Handy Case 12BAA303: Connecting Cable 12BAS450: AC Adaptor 12BAS451: USB2.0 Cable 178-605: Roughness Specimen (mm) / (178-606: inch/mm) 12BAK700: Calibration Stage 12BAS476: Tool for Operating The Internal Battery Switch 12AAE643: Point-contact Adapter 12AAE644: V-type Adapter Manual Documentations Warranty |
||||||
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Inch/Metric |
