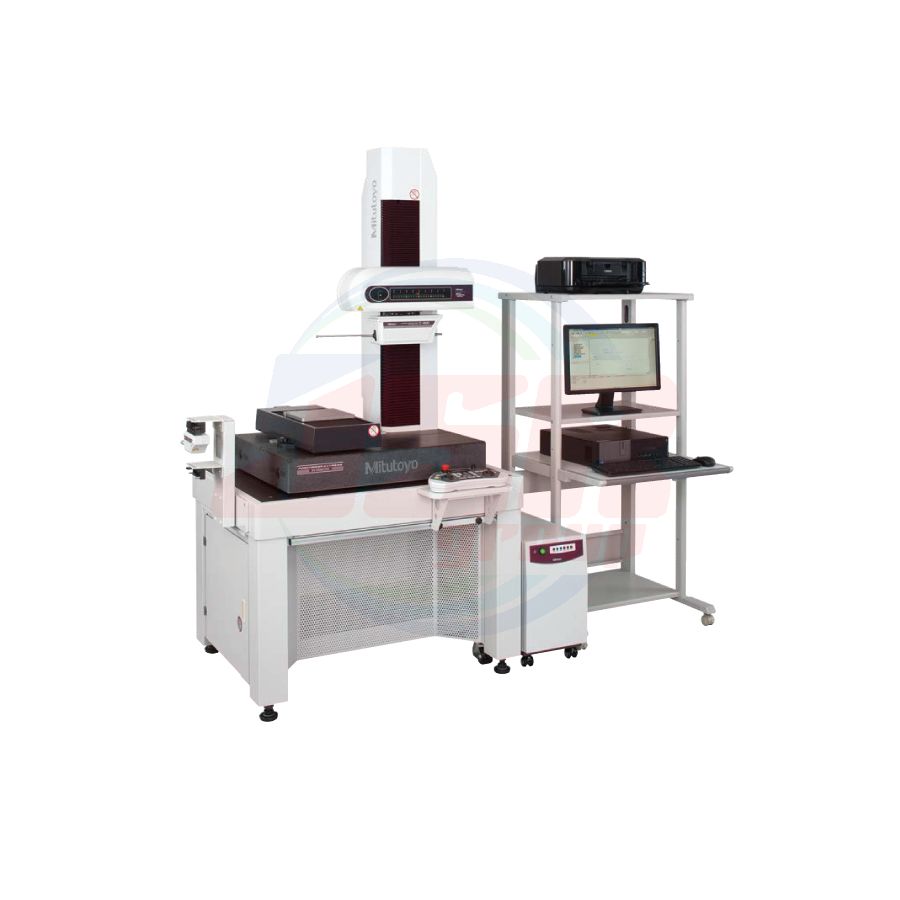

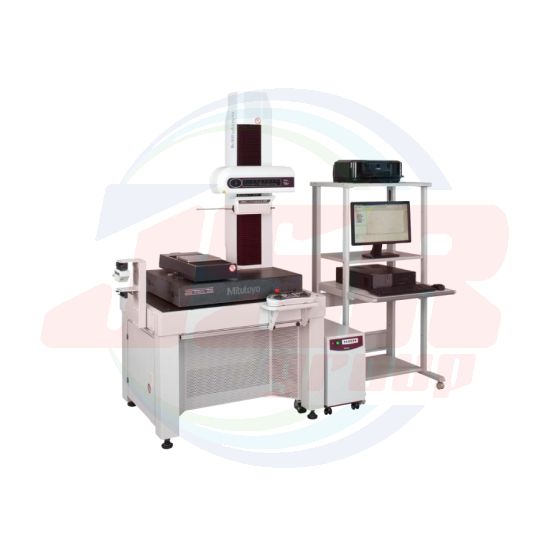

SV-C4500CNC HYBRID
CNC Surface Roughness and Contour Measuring System
FORMTRACER Extreme
SV-C4500CNC HYBRID TYPE1
Complex CNC measuring systems that can support both surface roughness and contour measurement in a single system by switching the detector without turning off the machine.
Measuring range (X axis): 200 mm
Roughness measuring range (Z1 axis): 800 μm/80 μm/8 μm
Contour measuring range (Z1 axis): Contour 60 mm
SV-C4500CNC HYBRID
| X1 axis (drive unit) | Measuring range | 200 mm | |
| Resolution | 0.05 μm | ||
| Scale unit | Reflective-type linear encoder | ||
| Drive speed | CNC mode | Max. 200 mm/s | |
| Joystick control mode | 0 to 50 mm/s | ||
| Measuring speed | 0.02 to 2 mm/s | ||
| Form/contour mode | Measuring direction | Forward/backward | |
| Straightness | 2 μm/200 mm | ||
| Accuracy (20 °C) | ±(0.8+4L / 200) μm L: Measurement length (mm) | ||
| Surface roughness mode | Measuring direction | Backward | |
| Straightness | 0.5 μm/200 mm | ||
| Non-contact type | Straightness | 0.5 μm/200 mm | |
| Accuracy | ±(0.8+4L / 200) μm L: Measuring length (mm) | ||
| Y axis | Measuring range | 200 mm | |
| Resolution | 0.05 μm | ||
| Maximum table loading | 20 kg | ||
| Z1 axis (detector unit) | Form/contour mode | Measuring range | 60 mm (±30 mm from the horizontal plane) |
| Resolution | 0.02 μm | ||
| Measuring direction | Upward/downward direction (Direction can be switched by FORMTRACEPAK) | ||
| Stylus up/down operation | Arc movement | ||
| Scale unit | Arc scale | ||
| Accuracy (20 °C) | ±(0.8+|2H| / 100) μm H: Measurement height from the horizontal position (mm) | ||
| Measuring force | 10, 20, 30, 40, 50 mN (Can be switched by software) | ||
| Traceable angle | 70° for ascent, 70° for descent (depending on the surface texture) | ||
| Stylus tip | 30° cone, Carbide | ||
| Surface roughness mode | Measuring range | 800 μm/80 μm/8 μm | |
| Resolution | 0.01 μm/0.001 μm/0.0001 μm | ||
| Measuring force | 0.75 mN | ||
| Non-contact type detector CPS2525* | Measuring range | 1.2 mm | |
| Resolution | 25 nm | ||
| Non-contact type detector CPS0517* | Measuring range | 0.1 mm | |
| Resolution | 5 nm | ||
| Z2 axis (column) | Travel range | 500 mm | |
| Resolution | 0.05 μm | ||
| Scale unit | Reflective-type linear encoder | ||
| Drive speed | CNC mode | Max. 200 mm/s | |
| Joystick control mode | 0 to 50 mm/s | ||
| Accuracy (20 °C) | ±(3.5+15H/1000) μm H: Z2 axis measurement height (mm) | ||
| Base size (W×D) | 750×600 mm | ||
| Base material | Granite | ||
* Select either CPS2525 or CPS0517.
Note: While the appearance of the natural stone measuring table varies according to the source, the high stability for which this material is known can always be relied upon.
