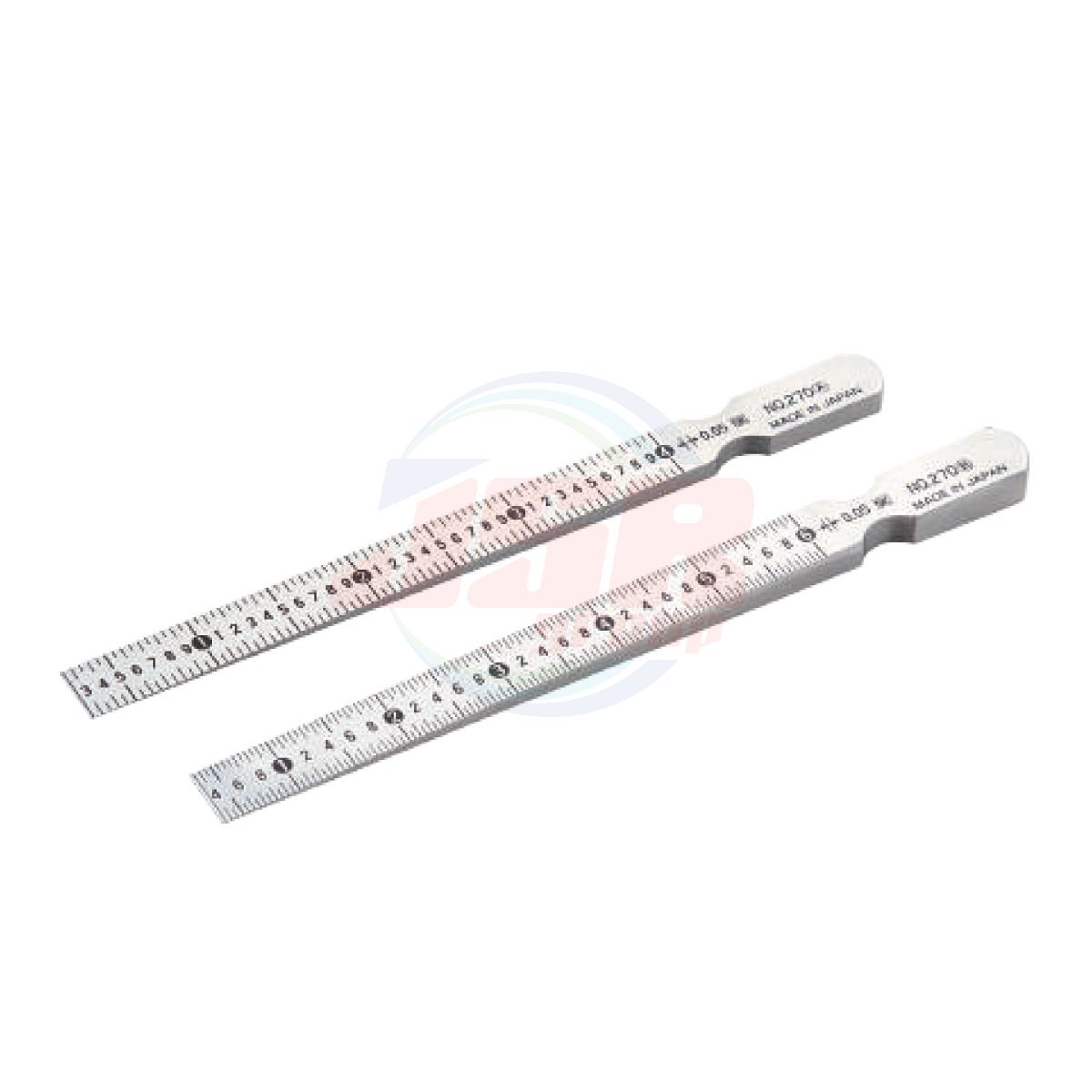

TAPER GAUGE | FUJI TOOL
THB 0.00
พร้อมส่ง
SKU
TAPER GAUGE
USE
●For measurement of groove and gap etc.
MATERIAL
●Carbon steel for machine structual use （Non-hardened）
FEATURES
● Each number marked on the gauge shows gauge thickness of its point
which enables to measure width of inner gap
● Satin finish
● Packed in plastic carrying case
| Order No. | Model No. | Standard | Measuring Range （mm） |
Accuracy （mm） |
Graduation （mm） |
Taper Angle | Full Length H×W（mm） |
Weight |
| 007000 | TPG-270A | 270A | 0.3-4 | ±0.04 | 0.05 | 1°54′33″ | 158×12 | 95g |
| 007000 | TPG-270B | 270B | 0.4-6 | ±0.04 | 0.05 | 2°51′45″ | 158×12 | 95g |

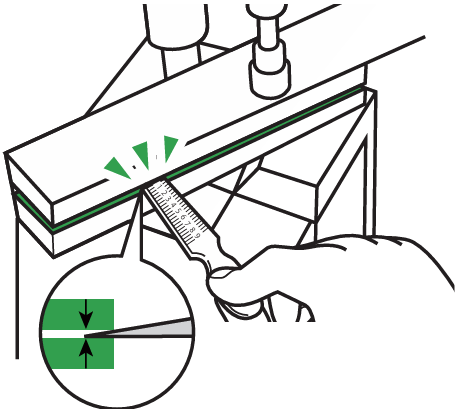

Graduation shows the gap width
