UMAP Vision System
Microscopic Form Measurement System

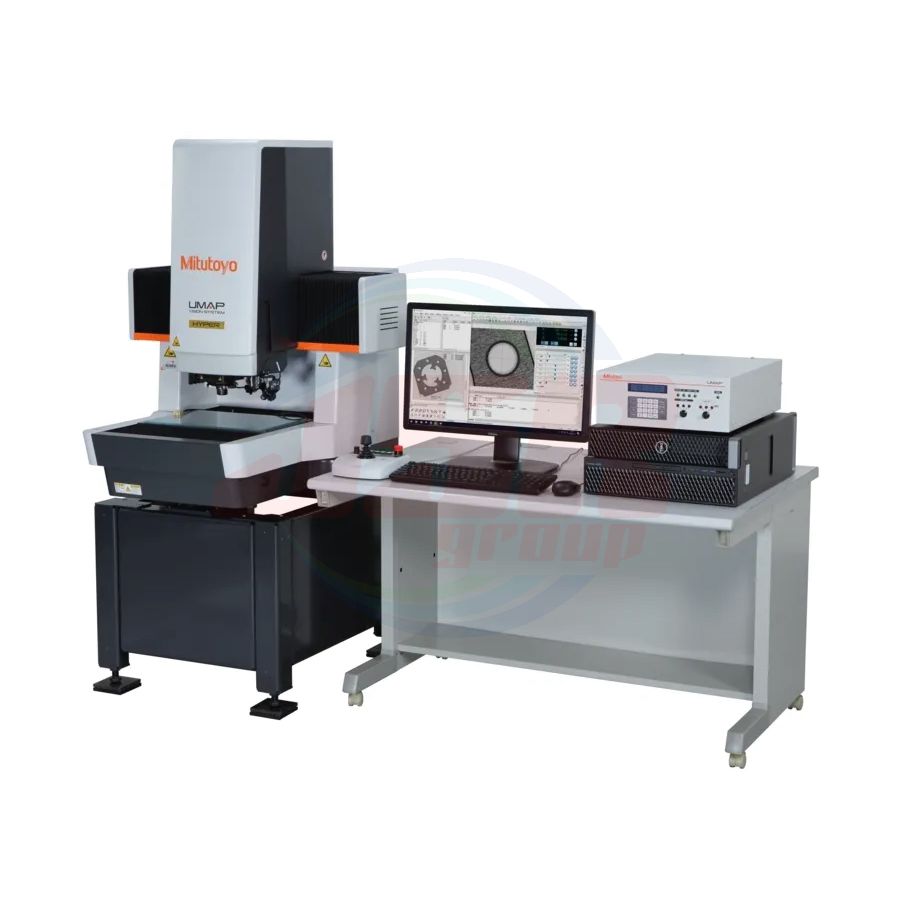

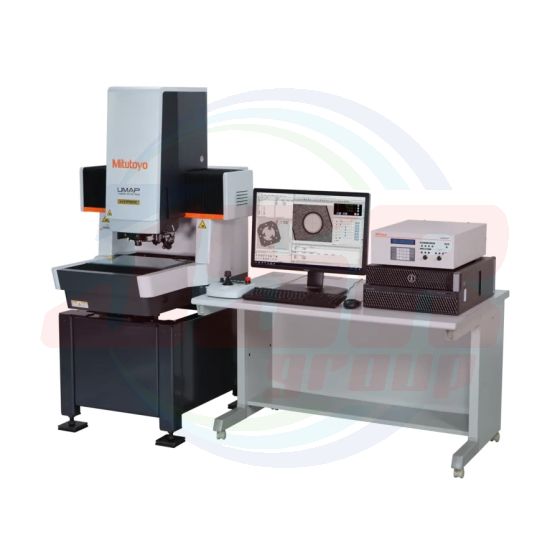

UMAP Vision System
Extremely small styli down to ø15 μm make contact measurement of microscopic form a reality
The UMAP Vision System is an ultra-low-measuring-force probe that uses Mitutoyo's proprietary sensing technology.
With a lineup of styli ranging from a minimum diameter of 15 μm, this product responds to the needs of our customers for microscopic dimension and form measurement.
SPECIFICATIONS
| Model Name. |
UMAP Vision System TYPE2 HYPER 302 Pro | UMAP Vision System TYPE2 ULTRA 404 | ||
| Model |
UVS2-H302P1L-E | UVS2-U404P1L-E | ||
| Measuring range (X×Y×Z) [mm] | Vision | 300×200×200 | 400×400×200 Effective measuring range when contour light is used:360×400×200 |
|
| Vision+UMAP | 185×200×175 | 285×400×175 | ||
| Stage glass (W×D) [mm] | 399×271 | 493×551 | ||
| External dimensions (D×W×H) (Including dedicated stand) [mm] |
930×866×1612 | 1736×1172×1910 | ||
| Main unit mass (Including dedicated stand) [kg] | 365 | 2185 | ||
| Imaging device | B&W CMOS digital camera | |||
| Observation unit*¹ | Programmable power turret 1x, 2x, 6x, (12x) | |||
| Illumination unit | Vertical coaxial light | White LED | White LED | |
| Stage light | White LED | White LED | ||
| Programmable ring light | White LED | White LED | ||
| Maximum stage loading [kg]*² | 15 kg | 40 kg | ||
| Vision measuring accuracy [μm]*³ |
Vision*⁴ | E UX,MPE / E UY,MPE | ① (0.8 + 2 L/1000)μm / ② (0.8 + 3L/1000) | ① (0.35 + 1.3 L/1000)μm / ② (0.35 + 1.8 L/1000) |
| E UZ,MPE | ① (1.5 + 2 L/1000)μm / ② (1.5 + 3.5L/1000) | ① (1.5 + 2 L/1000)μm / ② (1.5 + 3.5 L/1000) | ||
| E UXY,MPE | ① (1.4 + 3 L/1000)μm / ② (1.4 + 4L/1000) | ① (0.5 + 2 L/1000)μm / ② (0.5 + 2.5 L/1000) | ||
| STREAM (optional) |
E 1X, E1Y | (1.5 + 3 L/1000) | – | |
| E 2XY | (2.0 + 4 L/1000) | – | ||
| Optical magnification | 2.5x objective (QV-HR2.5x or QV-SL2.5x) and middle magnification tube lens | 5x objective (QV-5x or QV-HR5x) and middle magnification tube lens | ||
| UMAP*⁵ | E 1X, E 1Y | (1.7 + 3 L/1000) | (1.5 + 3 L/1000) | |
| Repeatability [μm] | Dimensional measurement within the FOV | – | 3σ≤0.2 | |
| UMAP*³ *⁶ | UMAP101, 103, 107 | σ≤0.1 | σ≤0.08 | |
| UMAP110, 130 | σ≤0.15 | σ≤0.12 | ||
| Operating temperature range*7 |
Ambient temperature | ① 20±2 °C / ② 19 to 24 °C | ||
| Temperature variation | 0.5 °C/1H and 1 °C/24H | |||
| Thermal compensation function | Automatic | |||
| Air supply | Pressure | 0.4 MPa (Air supply pressure to be in range 0.5 to 0.9 MPa.) | ||
| Required air flow rate*8 | – | 300 L/min (ANR) Operating air pressure | ||
*1 Programmable power turret 1x, 2x, 4x, 6x model is available by special order. Digital magnification function allows 8x and 12x in addition to 1x, 2x, 4x, 6x. 6 steps of magnification are available in total.
*2 An excessively biased or concentrated load is excluded.
*3 Inspected to a Mitutoyo standard. L: arbitrary measuring length (unit: mm)
*4 According to ISO 10360-7:2011 (JIS B 7440-7:2015)
*5 The assured accuracy of UMAP is specific to that of UMAP110 in the case of a measuring speed of 10 μm/s.
*6 The accuracies are guaranteed for a measuring speed of 5 μm/s for the UMAP101 and a measuring speed of 10 μm/s for the UMAP103, 107, 110, and 130.
*7 The guaranteed accuracy depends on ambient temperature.
*8 UMAP Vision System TYPE2 HYPER 302 Pro only uses air to move UMAP up and down.
