CARBIDE SHANK STRAIGHT TYPE | MOLDINO
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
CARBIDE SHANK STRAIGHT TYPE
| แบรนด์สินค้า | MOLDINO |
|---|
|
商品コード |
在庫 Stock |

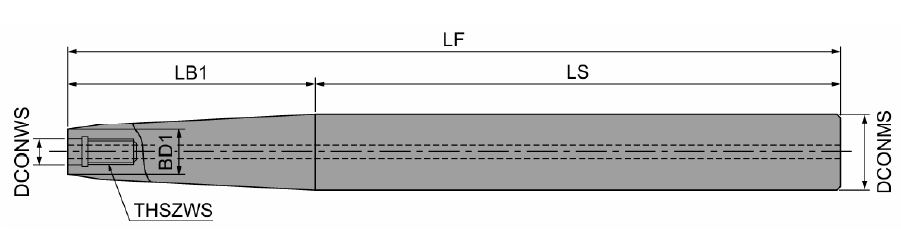

寸 法 Size(mm) |
Cutter body | With/without air hole | |||
|---|---|---|---|---|---|---|---|
| DCONWS | THSZWS | LF | DCONMS | ||||
| ASC10-6.5-80-0Z | ● | 6.5 | M6 | 80 | 10 | Φ10 Φ11 | 〇 |
| ASC10-6.5-130-0Z | ● | 130 | |||||
| ASC12-6.5-100-0Z | ● | 100 | 12 | Φ12 Φ13 | 〇 | ||
| ASC12-6.5-150-0Z | ● | 150 | |||||
| ASC15-8.5-210-0Z | ● | 8.5 | M8 | 210 | 15 | Φ16 Φ17 Φ18 | 〇 |
| ASC16-8.5-130-0Z | ● | 8.5 | M8 | 130 | 16 | Φ16 Φ17 Φ18 | 〇 |
| ASC16-8.5-210-0Z | ● | 210 | |||||
| ASC18-10.5-240-0Z | ● | 10.5 | M10 | 240 | 18 | Φ20 Φ21 Φ22 | 〇 |
| ASC20-10.5-150-0Z | ● | 10.5 | M10 | 150 | 20 | Φ20 Φ21 Φ22 | 〇 |
| ASC20-10.5-250-0Z | ● | 250 | |||||
| ASC23-12.5-300-0Z | ● | 12.5 | M12 | 300 | 23 | Φ25 Φ26 Φ28 | 〇 |
| ASC25-12.5-175-0Z | ● | 12.5 | M12 | 175 | 25 | Φ25 Φ26 Φ28 | 〇 |
| ASC25-12.5-300-0Z | ● | 300 | |||||
Supported tool
| TR2F-M | TR4FM | TD4N-M | ASRM | ASRTM | ASRFM |
