Adjustable hand dial indicator
• The hand position can be adjusted independently of the vertical movement of the spindle by rotating the top knob.
SPECIFICATIONS
Metric
| Order No. | Graduation (mm) |
Range (range/rev) (mm) |
Maximum permissible error (MPE) (μm) | Dial reading |
Measuring force (N | ||||||
| w/ lug | Flat-back | Indication error | Hysteresis | Repeatability | |||||||
| 1/10 Rev | 1/2 Rev | 1 Rev | Measuring range | ||||||||
| 2048A-10 | 2048AB-10 | 0.01 | 10 (1) | 5 | 9 | 10 | 15 | 3 | 3 | ±0-100 | 1.4 or less |
Note: Completed products inspection is performed in the vertical orientation (contact point downward) and the stated accuracy is guaranteed.
 Continuous scale |
||||||
 |
||||||
|
Graduation: 0.01 mm, |
2048A-10 |
|||||
 |
With coaxial revolution counter | |||||
 |
Adjustable hand | |||||
 |
Jeweled bearing | |||||
FEATURES
Metric
| Order No. | |
|
 |
|
|
|
| w/lug | Flat-back | |||||
| 2048A-10 | 2048AB-10 | √ | √ | √ | √ | |
| แบรนด์สินค้า | MITUTOYO |
|---|

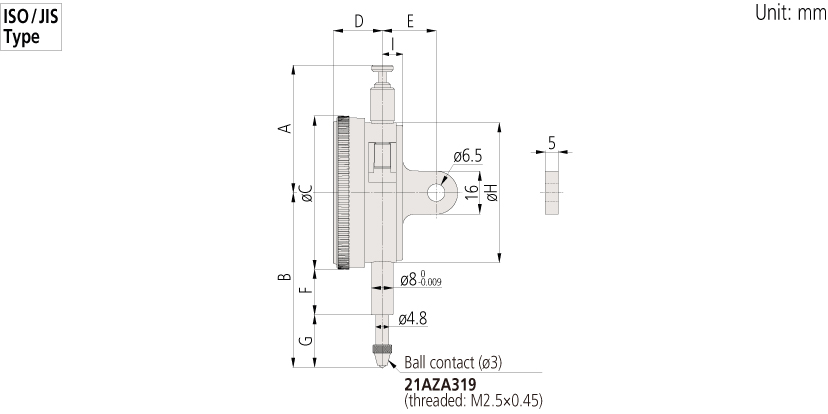

| Order No. | A | B | C | D | E | F | G | H | I | Mass (g) | |
| w/lug | Flat-back | ||||||||||
| 2048A-10 | 47.4 | 64.9 | 57 | 18.1 | 20 | 16.9 | 19.5 | 52 | 7.6 | 144 | 135 |
Note: The shoulder on a contact point (standard accessory) acts as a stop to prevent spindle overrun that may
otherwise damage the indicator. When replacing it with an optional contact point with a connector not
exceeding ø7 mm in outside diameter, insert a washer (with ø7 mm outside diameter, ø3 mm inside
diameter, and approximately 0.5 mm thickness) above the contact point.
