• Activation handle with precision-balanced spring allows for easier inside-diameter measurements.
• Titanium-coated measuring pins provide excellent durability and impact resistance.
• Three-Point contact measuring head enables stable measurement.
• Can measure deep holes using an extension rod (optional).
SPECIFICATIONS
Metric ___ Individual
| Order No. | Range*² (mm) | Resolution (mm) |
Maximum permissible error J MPE (μm)*¹ |
Mass (g) |
Extension Rod (optional) |
| 568-361-10 | 6 - 8 | 0.001 | ±5 (maximum difference 5) |
480 | 952322 (100 mm) |
| 568-362-10 | 8 - 10 | 485 | |||
| 568-363-10 | 10 - 12 | 485 | |||
| 568-364-10 | 12 - 16 | 475 | 952621 (150 mm) |
||
| 568-365-10 | 16 - 20 | 480 | |||
| 568-366-10 | 20 - 25 | ±6 (maximum difference 6) |
540 | 952622 (150 mm) |
|
| 568-367-10 | 25 - 30 | 555 | |||
| 568-368-10 | 30 - 40 | 565 | |||
| 568-369-10 | 40 - 50 | 610 | |||
| 568-370-10 | 50 - 63 | 730 | 952623 (150 mm) |
||
| 568-371-10 | 62 - 75 | 740 | |||
| 568-372-10 | 75 - 88 | 790 | |||
| 568-373-10 | 87 - 100 | 800 | |||
| 568-374-10 | 100 - 113 | 900 | |||
| 568-375-10 | 112 - 125 | 910 |
Inch / Metric ___ Individual
| Order No. | Range*² (mm) | Resolution (mm) |
Maximum permissible error J MPE (μm)*¹ |
Mass (g) |
Extension Rod (optional) |
| 568-461-10 | 0.275 - 0.35 | 0.00005 in/ 0.001 mm |
±0.00025 (maximum difference 0.00025) |
480 | 952322 (100 mm) |
| 568-462-10 | 0.25 - 0.425 | 485 | |||
| 568-463-10 | 0.425 - 0.5 | 485 | |||
| 568-464-10 | 0.5 - 0.65 | 475 | 952621 (150 mm) |
||
| 568-465-10 | 0.65 - 0.8 | 480 | |||
| 568-466-10 | 0.8 - 1 | ±0.0003 (maximum difference 0.0003) |
540 | 952622 (150 mm) |
|
| 568-467-10 | 1 - 1.2 | 555 | |||
| 568-468-10 | 1.2 - 1.6 | 565 | |||
| 568-469-10 | 1.6 - 2 | 610 | |||
| 568-470-10 | 2 - 2.5 | 730 | 952623 (150 mm) |
||
| 568-471-10 | 2.5 - 3 | 740 | |||
| 568-472-10 | 3 - 3.5 | 790 | |||
| 568-473-10 | 3.5 - 4 | 800 | |||
| 568-474-10 | 4 - 4.5 | 900 | |||
| 568-475-10 | 4.5 - 5 | 910 |
• Response speed: Unlimited
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Position detection method: Electrostatic capacitance type absolute encoder
• Battery life: Approx. 5 years under normal use. Approx. 10,000 hours in continuous use.
*1 Additionally, the difference in permissible error allowable is limited to a value within this range, as given in parentheses, and
is measured with the entire measuring surface in contact with the object measured.
*2 The measurement range cannot be enlarged by measuring heads that are not standard-supplied (the accuracy is not
guaranteed).
Note: Setting rings are optional.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |

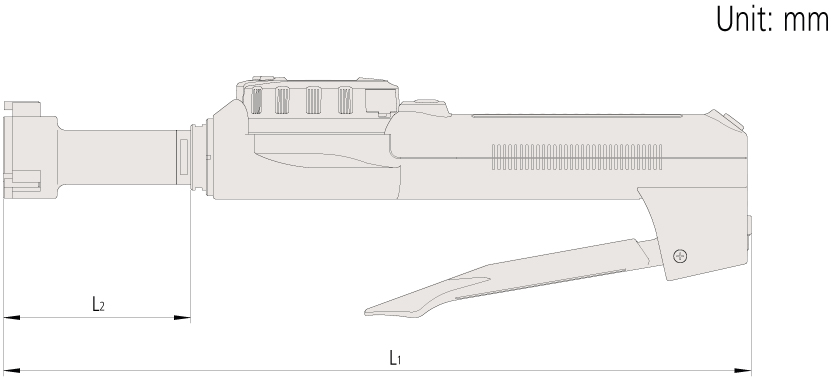

| Range | L2 | L1 |
| 6 - 8, 8 - 10, 10 - 12 mm | 83 | 284 |
| 12 - 16, 16 - 20 mm | 53 | 255 |
| 20 - 25, 25 - 30 mm | 59 | 261 |
| 30 - 40, 40 - 50 mm | 67 | 269 |
| 50 - 63, 62 - 75, 75 - 88, 87 - 100, 100 - 113, 112 - 125 mm |
75 | 277 |
Note: External appearance differs depending on the measuring range.

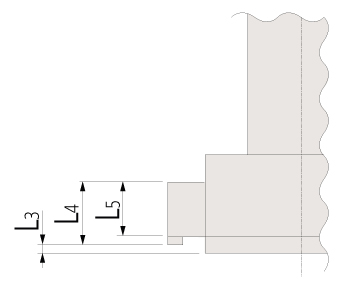

Reference dimensions when measuring a blind hole
| Range (mm) | L3 (mm) | L4 (mm) | L5 (mm) |
| 6 - 12 | 2 or below | - | 2.5 |
| 12 - 20 | 0.3 or below | 5.6 | 3.5 |
| 20 - 30 | 8.3 | 5.2 | |
| 30 - 50 | 13.0 | 10.0 | |
| 50 - 125 | 17.0 | 14.0 |
