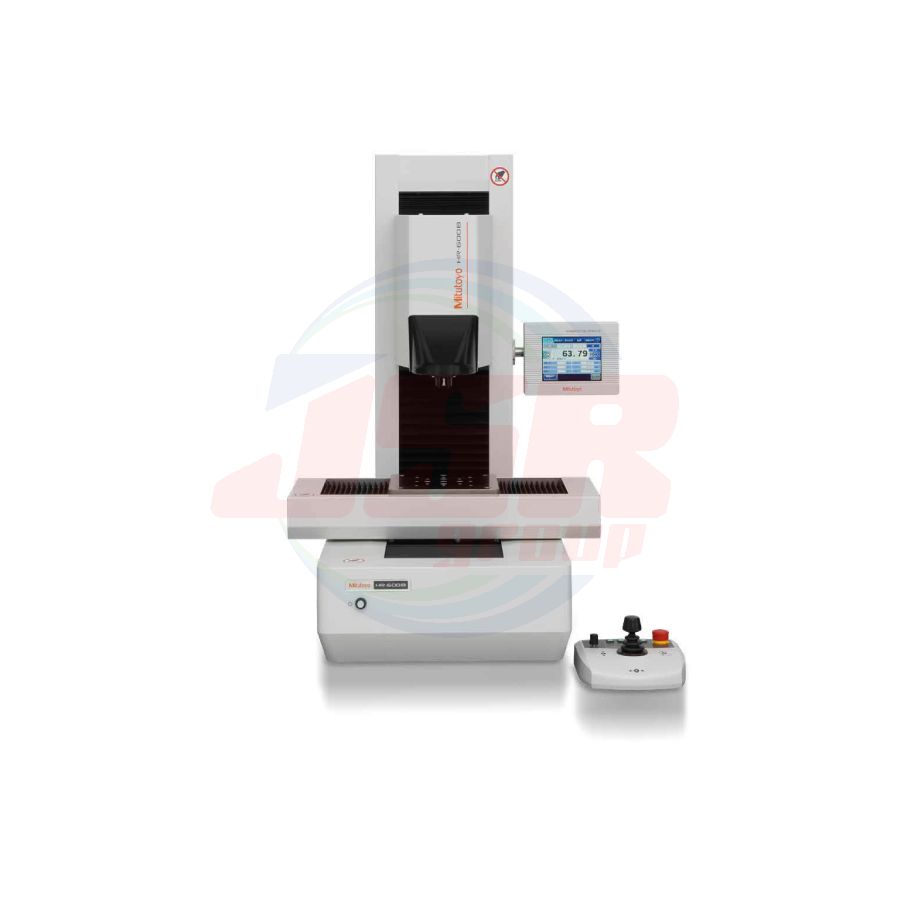

CNC Rockwell Hardness Testing Machine
HR-620B
• Electrically powered Y-axis table equipped as standard. (Can be expanded with an electrically powered X-axis table)
• Perform automatic Rockwell multi-point testing of multiple parts or workpieces.
• It is also possible to incorporate a fully automatic Rockwell hardness test system where even workpiece transport is automatic.
(Linking with PLC requires the FORMEio software (sold separately).)
Test force: 9.807 - 2,452 N (1 - 250 kgf)
Maximum load: 100 kg
Applicable standards and test force
| HR-620A | ||
| Test methods/ Standard No. |
Rockwell | JIS B7726:2017, ISO 6508-2:2015, ASTM E18-20 |
| Brinell* | JIS B7724:2017, ISO 6506-2:2017, ASTM E10-18 | |
| Plastic | ISO 2039-1:2001 | |
| JIS K7202-2:2001, ISO 2039-2:1987, ASTM D785-08 [A&B] | ||
| Indentation Brinell hardness | VDI/VDE 2616 | |
| Indentation Vickers hardness | VDI/VDE 2616 | |
| Initial test force N (kgf) |
Rockwell | 29.42 (3) 98.07 (10) |
| Plastic | 9.807 (1) | |
| 98.07 (10) | ||
| Indentation Brinell hardness | 98.07 (10) 490.3 (50) | |
| Indentation Vickers hardness | 9.807 (1) | |
| Test force N (kgf) |
Rockwell | 147.1 (15) 294.2 (30) 441.3 (45) 588.4 (60) 980.7 (100) 1471 (150) |
| Brinell | 9.807 (1) - 2452 (250) | |
| Plastic | 49.03 (5) 132.4 (13.5) 358.0 (36.5) 962.1 (98.1) | |
| 588.4 (60) 980.7 (100) 1471 (150) | ||
| Indentation Brinell hardness | 612.9 (62.5) 1839 (187.5) 2452 (250) | |
| Indentation Vickers hardness | 294.2 (30) 490.4 (50) | |
* For Brinell hardness testing, an indenter (optional) and a measurement microscope are required. A measurement microscope should be prepared by customer.
Specifications
| Model | HR-620A | |||
| Unit (display unit) | ̶ | |||
| Indenter type*¹ | 1/16" Steel ball | 1/16" Tungsten carbide ball | ||
| Testable hardness | Rockwell hardness / Rockwell Superficial hardness / Brinell hardness/ Indentation Brinell hardness / Plastics hardness / Indentation Vickers hardness |
|||
| Test force range | 9.807 to 2452 N (1 to 250 kgf) | |||
| Specimen height (Z-axis stroke) | 40 to 250 mm | |||
| Workpiece criteria |
Minimum surface dimensions | 18×4 mm or more | ||
| Minimum inner diameter of pipe-type workpiece |
ø400 mm or more | |||
| Concave workpiece | R25 mm or more, Height 20 mm or less | |||
| Minimum outside diameter | ø20 mm or more | |||
| Z-axis speed | Approx. 10 mm/s | |||
| Maximum depth (from indenter center) | 220 mm | |||
| X-axis stroke | None (Option: 160 mm or 300 mm) | |||
| Y-axis stroke | 160 mm | |||
| Maximum table loading | 100 kg | |||
| Display | Standard | Number of data displayed: 1, Hardness value, Scale, Test numbering, Hold time (Initial test force), Hold time (Total test force), Reading time, Hardness conversion, Judgment, Correction, Unit |
||
| Simple | Number of data displayed: 1, Hardness value, Scale, Judgment, Correction | |||
| List average/list | Number of data displayed: 5, Hardness value, Average hardness value, Hardness variation, Scale, Hardness conversion, Judgment, Correction | |||
| Multipoint | Depending on set test points, Hardness value, Scale, Test numbering, Judgment, Correction, Unit | |||
| Calculation | GO/NG judgment function | Test results judged according to set maximum/minimum values | ||
| Conversion function | Converts obtained test results to another scale | |||
| Correction functions |
Curved surface compensation | Corrects results according to specimen shape (cylindrical, spherical, etc.) | ||
| User correction |
Shift | Corrects by increasing/decreasing value according to hardness value | ||
| Multipoint | Corrects based on the results of tests conducted on multiple standard blocks (Rockwell/superficial only) | |||
| External output settings |
Serial | For printer (RS-232C compliant) 1-ch | ||
| Digimatic | Digimatic interface outputs 1-ch | |||
| USB2.0 | For USB memory/1-ch for PC communication | |||
| Languages | Supports the following 15 languages Japanese, English, German, French, Italian, Spanish, Korean, Chinese (simplified/traditional), Turkish, Portuguese, Polish, Czech, Hungarian and Dutch |
|||
| Hardness value | Digital display | Max. 7-digit (including decimal point and sign) | ||
| Minimum reading | 0.01 (settings can be changed) | |||
| Average hardness valu | Average value of valid data | |||
| Hardness variation | Variations in valid data (Max. - Min. ) | |||
| Scale | HRC/HR15N/HBW2.5/187.5 etc. | |||
| Display | Hardness value, test condition, OK/NG judgment result, statistical calculation result, X-R control chart, hardness conversion value | |||
| Test numbering | When testing a single specimen: 1, 2, 3... | |||
| When testing a group of specimens: 1/5-1, 2/5-1, 3/5-1, 4/5-1, 5/5-1, 1/5-2, 2/5-2... | ||||
| Hold time | Initial test force | 1 to 120 s (configurable in seconds) | ||
| Total test force | 1 to 120 s (configurable in seconds) | |||
| Reading time | 0 to 120 s (configurable in seconds) | |||
| Hardness conversion | MITUTOYO HARD STEEL, SOFT METAL/SAE J417 T1/ASTM E140 T1, T2, T4 ISO 18265 TA. 1/BS 860 T2, T3, T4 | |||
| Judgment | OK, ±NG | |||
| Correction | Displays whether or not correction was applied: cylindrical, spherical, user (multipoint/shift correction) Unit mm |
|||
| Unit | mm (X-, Y- and Z-axis stage displacements) | |||
| Power supply | AC100 to 240 V 50/60 Hz | |||
| Mass | 205 kg | |||
*1 Supplied as standard.
Note 1: Plastic tests may not be supported depending on the plastic material.
Note 2: For Brinell hardness testing, an indenter (optional) and a measurement microscope are required. A measurement microscope should be prepared by customer.
Note 3: No indenter and hardness standard block is supplied with the unit. These items (conform to the applicable standard) must be purchased separately.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | HR-620B |
| Test force | 9.807 - 2,452 N (1 - 250 kgf) |
