Step Master SERIES 516 | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 22,952.57
พร้อมส่ง
SKU
1MIT-STEP-MASTER
• Step master is a master gage of different height that is useful for the z-axis (vertical direction) calibration of optical instruments.
• Each adjacent step is measured down to 0.01 μm by using a interferometer within ±0.20 μm allowance.
• Steel and ceramic types are available.

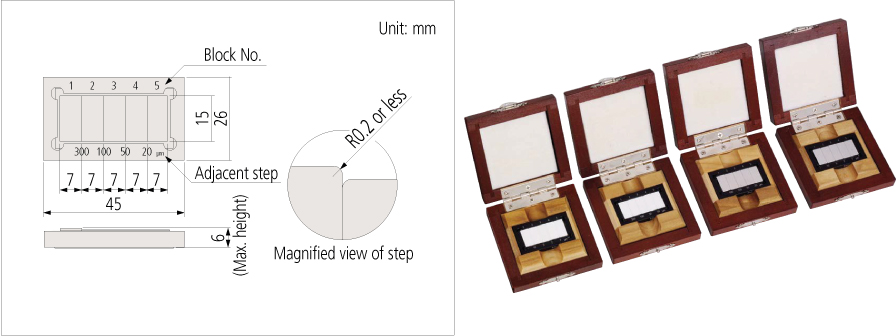

SPECIFICATIONS
Steel type
| Order No. | 516-198 | 516-199 | ||||||||||||||||||
| Block No. | 1 | 2 | 3 | 4 | 5 | 1 | 2 | 3 | 4 | 5 | ||||||||||
| Cumulative step (μm) | 0 | 10 | 15 | 17 | 18 | 0 | 300 | 400 | 450 | 470 | ||||||||||
| Step value between adjacent blocks (μm) |
10 | 5 | 2 | 1 | 300 | 100 | 50 | 20 | ||||||||||||
Ceramic type
| Order No. | 516-498 | 516-499 | ||||||||||||||||||
| Block No. | 1 | 2 | 3 | 4 | 5 | 1 | 2 | 3 | 4 | 5 | ||||||||||
| Cumulative step (μm) | 0 | 10 | 15 | 17 | 18 | 0 | 300 | 400 | 450 | 470 | ||||||||||
| Step value between adjacent blocks (μm) |
10 | 5 | 2 | 1 | 300 | 100 | 50 | 20 | ||||||||||||
Note: ○○○ - ○○○ -24: Provided with Calibration Certificate
| แบรนด์สินค้า | MITUTOYO |
|---|
