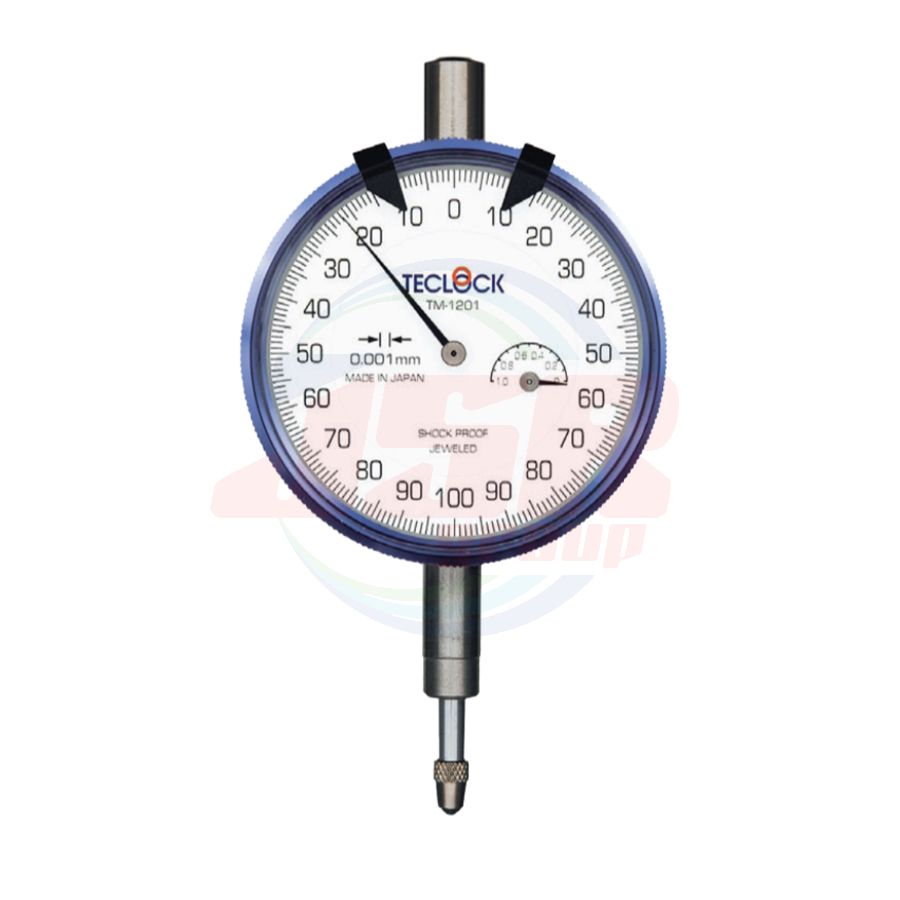

0.001mm Dial Indicator
• Standard type dial indicators of graduation 0.001mm and bezel diameter 56mm.
• Durability is pursued by protecting mechanical parts like gears with shock absorbing mechanism (Teclock unique shock proof mechanism).
• Jeweled bearing is applied for improving durability.
• Stable repeatability accuracy is realized with lever enlargement mechanism built–in.
• Tolerance hand is provided as standard accessory for all models for positive tolerance setting.
• Lifting lever (Option) can be mounted (Refer to page 25).
• Bezel clamp (Option) can be mounted (except for
TM-1201PW).
• Measuring ability can be changed .
• In case that flat back is required, add suffix “f” to the end of model number (example =TM-1201f).
Specifications
| Order No. | Graduation (mm) |
Measuring Range (Free Stroke) (mm) |
Repeatability (μm) |
Indication Error(μm) | Hysteresis (μm) |
Standard Contact Point |
Measuring Force (N) |
Weight (g) |
|||
| 1/10 Revolution |
1/2 Revolution |
1 Revolution |
Total Range |
||||||||
| TM-1201 | 0.001 | 1 (3) | 0.5 | 2 | 3.5 | 4 | 5 | 2 | ZS-017 | 1.5 or less | 170 |
| TM-1201PW | 0.001 | 1 (3) | 0.5 | 2 | 3.5 | 4 | 5 | 2 | ZS-028 | 1.5 or less | 180 |
| TM-1251 | 0.001 | 1 (3) | 0.5 | 2 | 3.5 | 4 | 8 | 2 | ZS-017 | 1.5 or less | 170 |
| TM-1202 | 0.001 | 2 (2) | 0.5 | 2 | 4 | 5 | 14 | 2 | ZS-017 | 1.5 or less | 170 |
| TM-1205 | 0.001 | 5 (-) | 1 | 3.5 | 5 | 6 | 15 | 4 | ZS-017 | 1.5 or less | 165 |
Final inspection is done in the vertical orientation and the accuracy is guaranteed.
| แบรนด์สินค้า | TECLOCK |
|---|

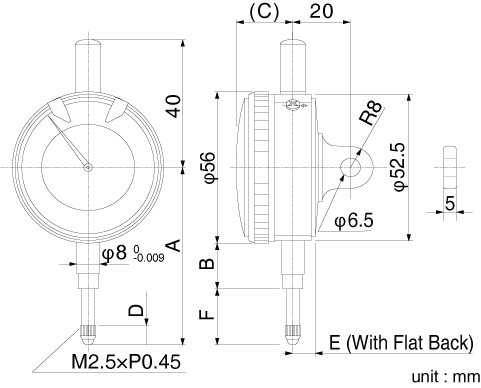

| Order No. | A | B | C | D | E | F |
| TM-1201 | 62 | 18 | 15 | 7.5 | 8 | 16 |
| TM-1201PW | 65.5 | (18) | 13.5 | 11 | 8.5 | (19.5) |
| TM-1251 | 62 | 18 | 15 | 7.5 | 8 | 16 |
| TM-1202 | 62 | 19 | 15 | 7.5 | 8 | 16 |
| TM-1205 | 62 | 19 | 15.5 | 7.5 | 8 | 16 |
