Dial Thickness Gauges
0.001mm type PAT. No. 3052674
● New thinkness gauges with 0.001mm graduations.
● Newly developed special frame minimizes inspecting errors resulting from thermal changes. Zero reference point will remain accurate even after many hours of use or extreme swings in temperature.
Specifications
| Order No. | Graduation (mm) |
Range (mm) |
Throat depth (mm) |
Accuracy (μm) |
Contact Point | Measuring force less than(N) |
|
| Dia (mm) | Parallelism (μm) | ||||||

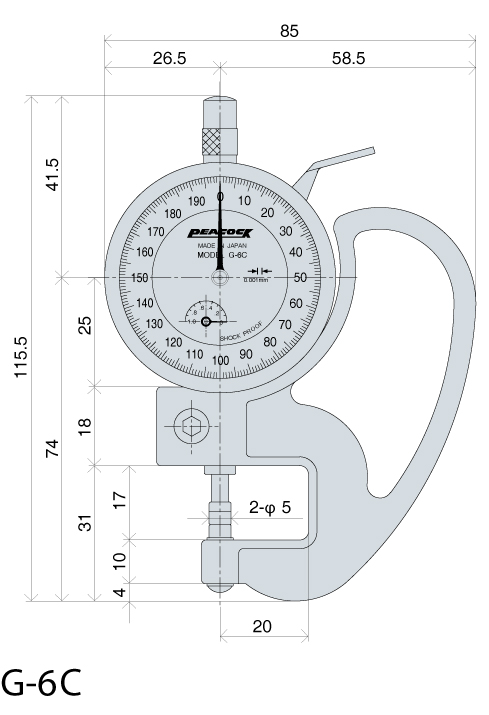

| G-6C | 0.001 | 0～1 | 20 | ±5 | 5 | 3 | 1.8 |
| G-7C | 0.001 | 0～5 | 20 | ±10 | 5 | 3 | 1.8 |
| แบรนด์สินค้า | PEACOCK |
|---|
