0.01, 0.005mm Dial Indicator | TECLOCK
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
TEC-TM-0.01_0.005

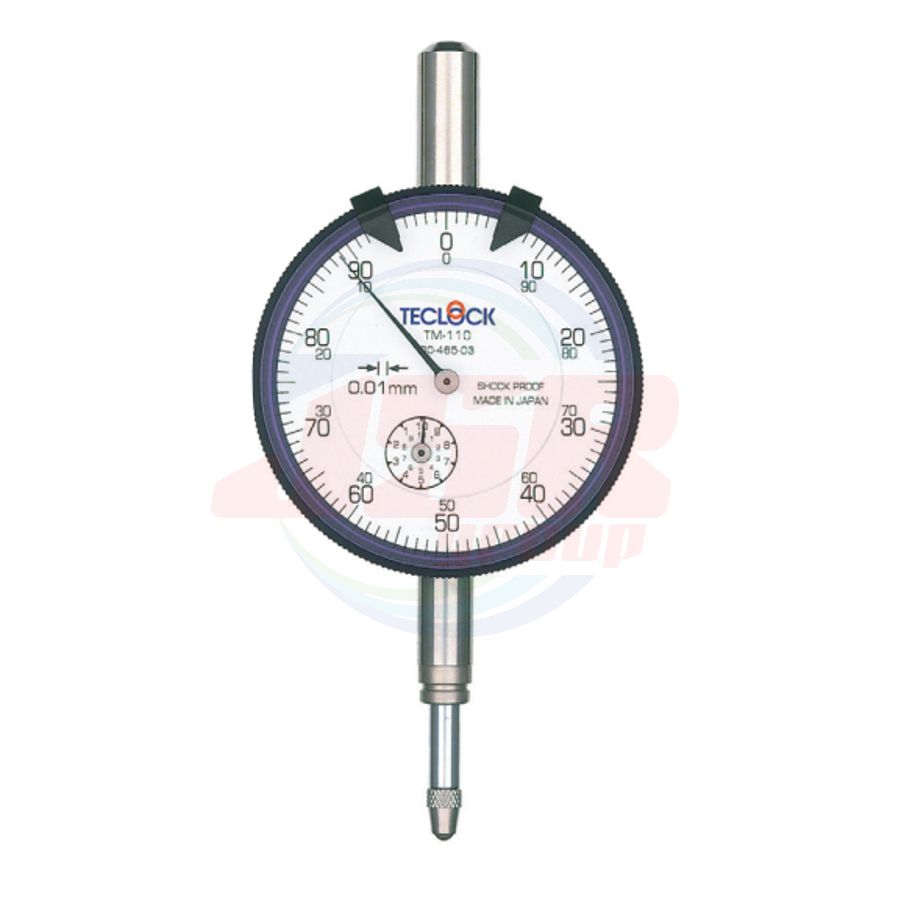

0.01mm Dial Indicator
• This is the most standard type dial indicator of graduation 0.01mm
• The model can be selected out of stainless stem, coaxial revolution pointer, oil discharge function and analog function depending on usage.
• These are standard series with high durability and high accuracy by pursuing parts accuracy.
• Lifting lever (Option) can be mounted.
• Bezel clamp (Option) can be mounted (except for TM-110PW).
• Measuring ability can be changed .
• In case that flat back is required, add suffix “f” to the end of model number (example =TM-110f).
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Repeatability (μm) |
Indication Error(μm) | Hysteresis (μm) |
Standard Contact Point |
Measuring Force (N) |
Weight (g) |
|||
| 1/10 Revolution |
1/2 Revolution |
1 Revolution |
Total Range |
||||||||
| TM-110 | 0.01 | 10 | 3 | 5 | 9 | 10 | 15 | 3 | ZS-017 | 1.4 or less | 110 |
| TM-110R | 0.01 | 10 | 3 | 5 | 9 | 10 | 15 | 3 | ZS-017 | 1.4 or less | 110 |
| TM-110D | 0.01 | 10 | 3 | 7 | 9 | 10 | 15 | 4 | ZS-017 | 1.4 or less | 115 |
| TM-110-4A | 0.01 | 10 | 3 | 5 | 9 | 10 | 15 | 3 | ZS-017 | 1.4 or less | 110 |
| TM-110PW | 0.01 | 10 | 3 | 5 | 9 | 10 | 15 | 3 | ZS-028 | 1.4 or less | 150 |
| TM-110P | 0.01 | 10 | 3 | 5 | 9 | 10 | 15 | 3 | ZS-017 | 1.4 or less | 110 |
| TM-105 | 0.01 | 5 | 3 | 5 | 9 | 10 | 12 | 3 | ZS-017 | 1.4 or less | 110 |
| TM-105W | 0.01 | 5 | 3 | 5 | 9 | 10 | 12 | 3 | ZS-017 | 1.4 or less | 110 |
| TM-5106 | 0.01 | 5 | 3 | 5 | 9 | 10 | 12 | 3 | ZS-017 | 1.4 or less | 145 |
| TM-5105 | 0.005 | 5 | 3 | 5 | 9 | 10 | 12 | 3 | ZS-017 | 1.4 or less | 145 |
Final inspection is done in the vertical orientation and the accuracy is guaranteed.
| แบรนด์สินค้า | TECLOCK |
|---|

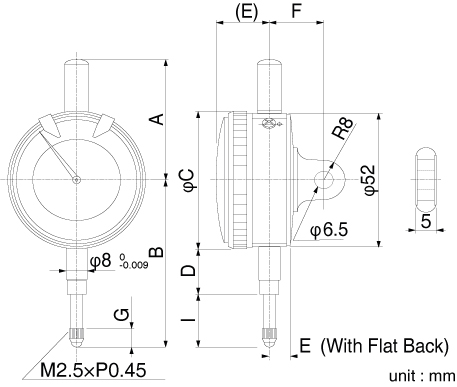

| Order No. | A | B | C | D | E | F | G | H | I |
| TM-110 | 48.7 | 65 | 55 | 18 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |
| TM-110R | 48.7 | 65 | 55 | 18 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |
| TM-110D | 48.7 | 65 | 55 | 18 | 17.6 | 20 | 7.5 | 7.8 | 19.5 |
| TM-110-4A | 48.7 | 65 | 55 | 18 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |
| TM-110PW | 44.5 | 68.5 | 56 | (17.5) | 14.5 | 20 | 11 | 8.3 | 23.0 |
| TM-110P | 48.7 | 65 | 55 | 18 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |
| *TM-105 | 48.7 | 65 | 55 | 18 | 15.5 | * | 7.5 | 7.8 | 19.5 |
| TM-105W | 48.7 | 65 | 55 | 18 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |
| TM-5106 | 48 | 65 | 55 | 19 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |
| TM-5105 | 48 | 65 | 55 | 19 | 15.5 | 20 | 7.5 | 7.8 | 19.5 |
*Indicator is supplied with Flat back.
