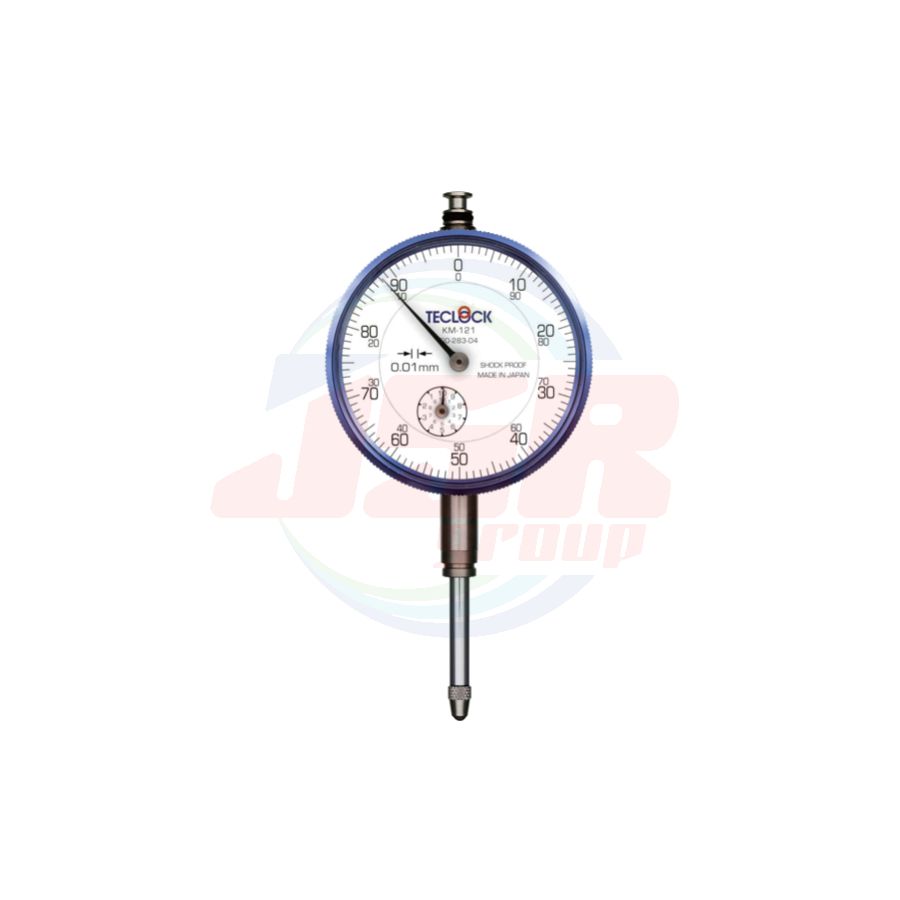

0.01mm Long Stroke Dial Indicator
• 20mm, 30mm long stroke dial indicators are available.
• Teclock unique shock proof mechanism is built–in to all models.
• Lifting lever (Option) can be mounted (except for KM-121PW).
• Bezel clamp (Option) can be mounted (except for KM-121PW).
• In case that flat back is required, add suffix “f” to the end of model number (example =KM-121f ).
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Repeatability (μm) |
Indication Error(μm) | Hysteresis (μm) |
Standard Contact Point |
Measuring Force (N) |
Weight (g) |
|||
| 1/10 Revolution |
1/2 Revolution |
1 Revolution |
Total Range |
||||||||
| KM-121 | 0.01 | 20 | 4 | 8 | 10 | 15 | 25 | 5 | ZS-017 | 2.2 or less | 110 |
| KM-121D | 0.01 | 20 | 4 | 8 | 10 | 15 | 25 | 5 | ZS-017 | 2.2 or less | 115 |
| KM-121PW | 0.01 | 20 | 4 | 8 | 10 | 15 | 25 | 5 | ZS-028 | 2.2 or less | 120 |
| KM-131 | 0.01 | 30 | 5 | 10 | 12 | 15 | 30 | 7 | ZS-017 | 2.5 or less | 150 |
| KM-132D | 0.01 | 30 | 5 | 10 | 12 | 15 | 30 | 7 | ZS-017 | 2.5 or less | 155 |
| KM-130 | 0.01 | 30 | 5 | 10 | 12 | 15 | 30 | 7 | ZS-017 | 2.2 or less | 150 |
| KM-130R | 0.01 | 30 | 5 | 10 | 12 | 15 | 30 | 7 | ZS-017 | 2.2 or less | 150 |
| KM-130D | 0.01 | 30 | 5 | 10 | 12 | 15 | 30 | 7 | ZS-017 | 2.2 or less | 155 |
Final inspection is done in the vertical orientation and the accuracy is guaranteed.
| แบรนด์สินค้า | TECLOCK |
|---|

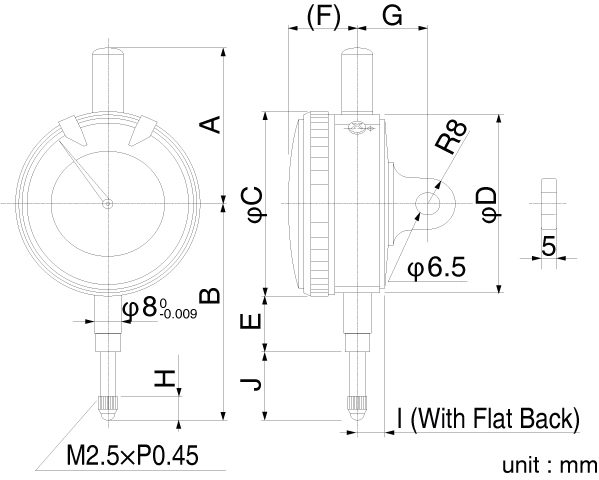

| Order No. | A | B | C | D | E | F | G | H | I | J |
| KM-121 | 36 | 75 | 55 | 52 | 18 | 15.5 | 20 | 7.5 | 7.8 | 29.5 |
| KM-121D | 36 | 75 | 55 | 52 | 18 | 17.6 | 20 | 7.5 | 7.8 | 29.5 |
| KM-121PW | 55 | 89 | 56 | 52 | (17.5) | 14.5 | 20 | 11 | 8.3 | (43.5) |
| KM-131 | 36 | 86 | 55 | 52 | 19 | 15.5 | 20 | 7.5 | 8 | 39.5 |
| KM-132D | 36 | 86 | 55 | 52 | 19 | 17.3 | 20 | 7.5 | 8 | 39.5 |
| KM-130 | 38.5 | 92 | 59 | 54.5 | 22.7 | 17.5 | 22 | 7.5 | 9.6 | 39.8 |
| KM-130R | 38.5 | 92 | 59 | 54.5 | 22.7 | 17.5 | 22 | 7.5 | 9.6 | 39.8 |
| KM-130D | 38.5 | 92 | 59 | 54.5 | 22.7 | 19.5 | 22 | 7.5 | 9.6 | 39.8 |
