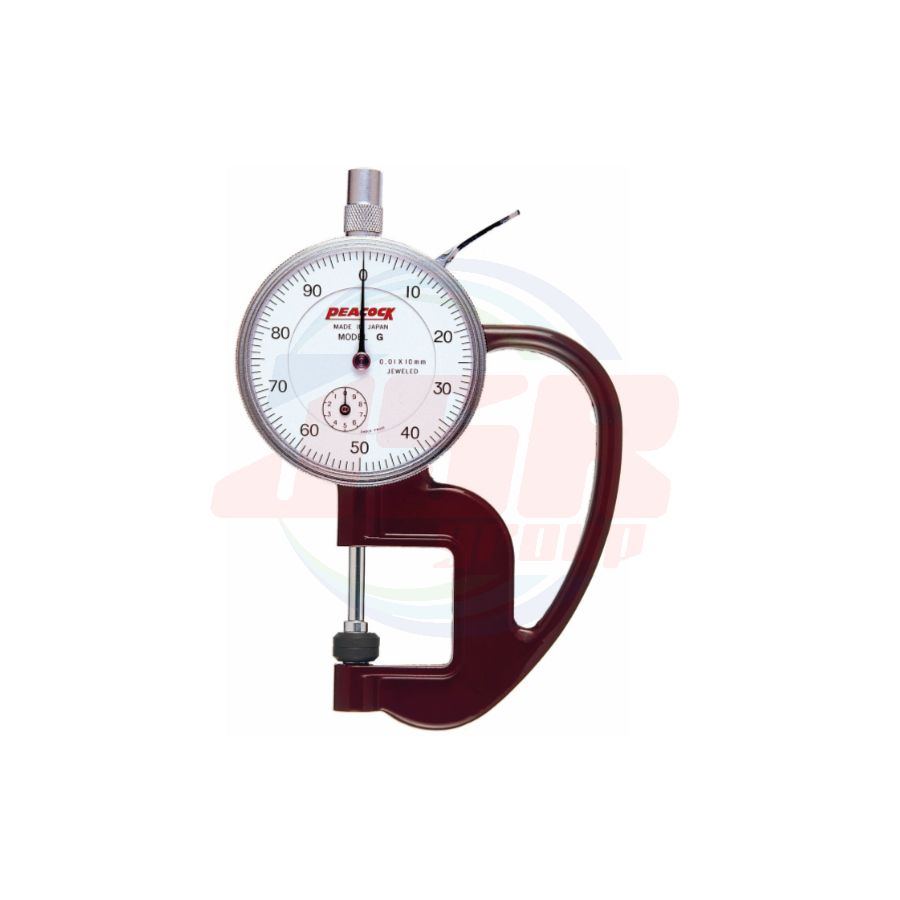

Dial Thickness Gauges
0.01mm type
These thickness gauges are especially handy for measuring thickness of small parts, metal, rubber, vinyl, paper, foil and other sheet material.
● The objects to be measured is clamped by simple lever operation. The measured values are read directly on the dial gauge.
● Since the anvil and the contact point are adjusted for parallelism, accurate measured values are obtained.

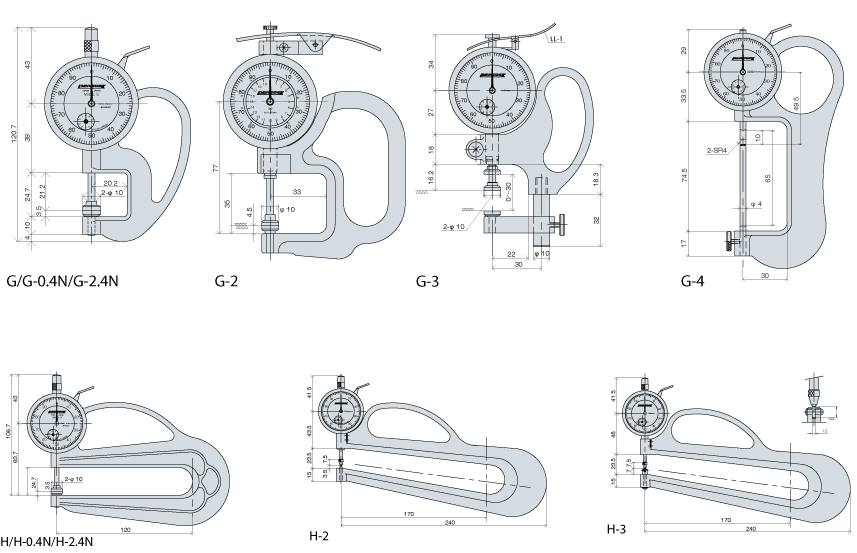

Specifications
| Order No. | Graduation (mm) |
Range (mm) |
Throat depth (mm) |
Accuracy (μm) |
Contact Point | Measuring force less than(N) |
|
| Dia (mm) | Parallelism (μm) | ||||||
| G | 0.01 | 0～10 | 20 | ±20 | 10 | 5 | 1.8 |
| G-0.4N | 0.01 | 0～10 | 20 | ±20 | 10 | 5 | Initial pressure 0.4N |
| G-2.4N | 0.01 | 0～10 | 20 | ±20 | 10 | 5 | Final pressure 2.4N |
| G-MT | 0.01 | 0～10 | 20 | ±20 | 10（Metal） | 5 | 1.8 |
| G-1A | 0.01 | 0～10 | 20 | ±20 | 5 | 5 | 1.8 |
| G-1M | 0.01 | 0～10 | 20 | ±20 | 6 | 5 | 1.8 |
| G-2 | 0.01 | 0～20 | 33 | ±20 | 10 | 5 | 2.0 |
| G-3* | 0.01 | 30 | 20 | ±20 | 10 | 5 | 1.8 |
| G-4* | 0.01 | 65 | 30 | ±20 | Spherical | - | 1.8 |
| G-20 | 0.01 | 0～10 | 20 | ±20 | 20（Metal） | 15 | 1.8 |
| G-30 | 0.01 | 0～10 | 20 | ±20 | 30（Metal） | 20 | 1.8 |
| H | 0.01 | 0～10 | 120 | ±20 | 10 | 5 | 1.8 |
| H-0.4N | 0.01 | 0～10 | 120 | ±20 | 10 | 5 | Initial pressure 0.4N |
| H-2.4N | 0.01 | 0～10 | 120 | ±20 | 10 | 5 | Final pressure 2.4N |
| H-MT | 0.01 | 0～10 | 120 | ±20 | 10（Metal） | 5 | 1.8 |
| H-1A | 0.01 | 0～10 | 120 | ±20 | 5 | 5 | 1.8 |
| H-2 | 0.01 | 0～10 | 170 | ±20 | Ball type | - | 1.8 |
| H-3 | 0.01 | 0～10 | 170 | ±20 | Ball type | - | 1.8 |
| H-20 | 0.01 | 0～10 | 120 | ±20 | 20（Metal） | 15 | 1.8 |
| H-30 | 0.01 | 0～10 | 120 | ±20 | 30（Metal） | 20 | 1.8 |
※ G-3/G-4 : Measuring range of dial gauge is 10mm.
