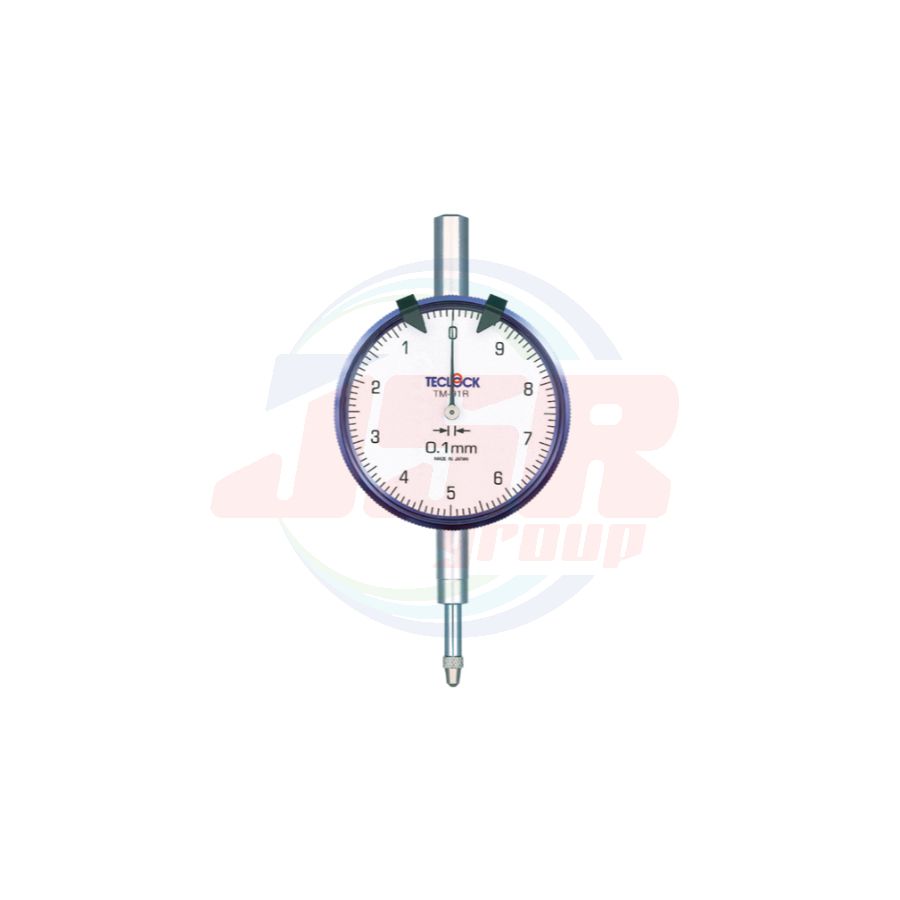

0.1mm Dial Indicator
• These are 0.1mm graduation dial indicators.
• 3 types of 10mm, 20mm and 30mm are available depending on measuring ranges.
• Lifting lever (Option) can be mounted.
• This is used to measure approximate dimensional judgment for woodwork and leather goods etc. and also applicable for measurement of judge deviation dimension.
• Lifting lever (Option) can be mounted.
• Measuring ability can be changed. (Refer to page 23)
• In case that flat back is required, add suffix “f” to the end of model number (example =TM-91f ).
Specifications
| Order No. | Graduation (mm) |
Measuring Range (mm) |
Repeatability (μm) |
Indication Error(μm) | Standard Contact Point |
Measuring Force (N) |
Weight (g) |
|
| 1 Revolution |
Total Range |
|||||||
| TM-91 | 0.1 | 10 | 35 | - | 50 | ZS-017 | 1.4 or less | 110 |
| TM-91R | 0.1 | 10 | 35 | - | 50 | ZS-017 | 1.4 or less | 110 |
| KM-92 | 0.1 | 20 | 35 | 30 | 40 | ZS-017 | 2.2 or less | 110 |
| KM-93 | 0.1 | 30 | 35 | 50 | 60 | ZS-017 | 2.2 or less | 120 |
Final inspection is done in the vertical orientation and the accuracy is guaranteed.
| แบรนด์สินค้า | TECLOCK |
|---|

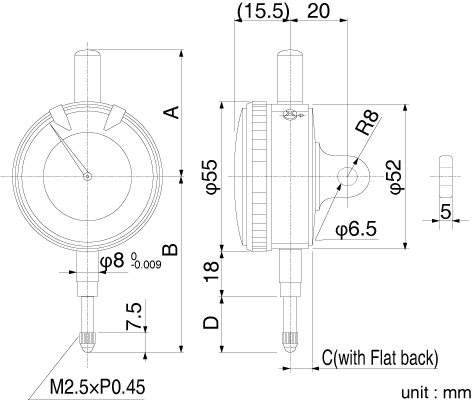

| Order No. | A | B | C | D |
| TM-91 | 48 | 65 | 7.8 | 19.5 |
| TM-91R | 48 | 65 | 7.8 | 19.5 |
| KM-92 | 36 | 75 | 7.8 | 29.5 |
| KM-93 | 36 | 85 | 7.8 | 39.5 |
