002011 (GCC-400) | COMBINATION CALIPER WITH METRIC GRADUATIONS | SK Niigata Seiki
THB 0.00
พร้อมส่ง
SKU
002011 (GCC-400)

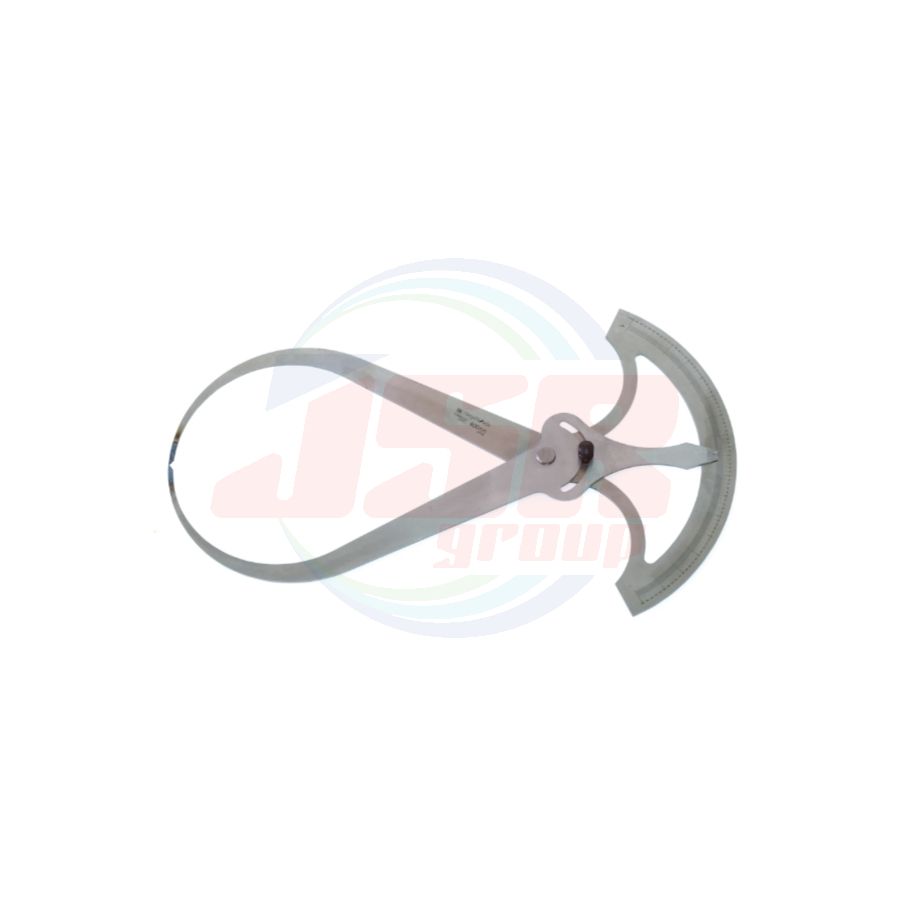

COMBINATION CALIPER WITH METRIC GRADUATIONS
For measuring outside diameter, inner diameter and thickness, and taking dimensions as tips can be crossed
USE
● OD, ID, Thickness and groove measurement
MATERIAL
● Stainless steel（ hardened tip）
FEATURES
● Graduated in millimeters from the center by photo etching on the head of the calipers
● Combination calipers are engineered for measuring both inner and outer diameters
| Order No. | Model No. | Nominal Size （mm） |
Graduation （mm） |
Accuracy （mm） |
Weight |
| 002003 | GCC-100 | 100 | 1 | ± 0.5 | 70g |
| 002005 | GCC-150 | 150 | 155g | ||
| 002007 | GCC-200 | 200 | 340g | ||
| 002009 | GCC-300 | 300 | 700g | ||
| 002011 | GCC-400 | 400 | 1040g | ||
| 002014 | GCC-600 | 600 | 2600g |
| แบรนด์สินค้า | SK NIIGATASEIKI |
|---|---|
| Order No. | 002011 (GCC-400) |
| Nominal Size | 400 mm |
Unit： mm
| Model No. | A | B | C | Thickness |
| GCC-100 | 152 | 100 | 98 | 1.5 |
| GCC-150 | 225 | 150 | 143 | 1.5 |
| GCC-200 | 300 | 200 | 190 | 2.0 |
| GCC-300 | 450 | 300 | 268 | 2.5 |
| GCC-400 | 600 | 400 | 360 | 2.5 |
| GCC-600 | 900 | 600 | 545 | 3.0 |
