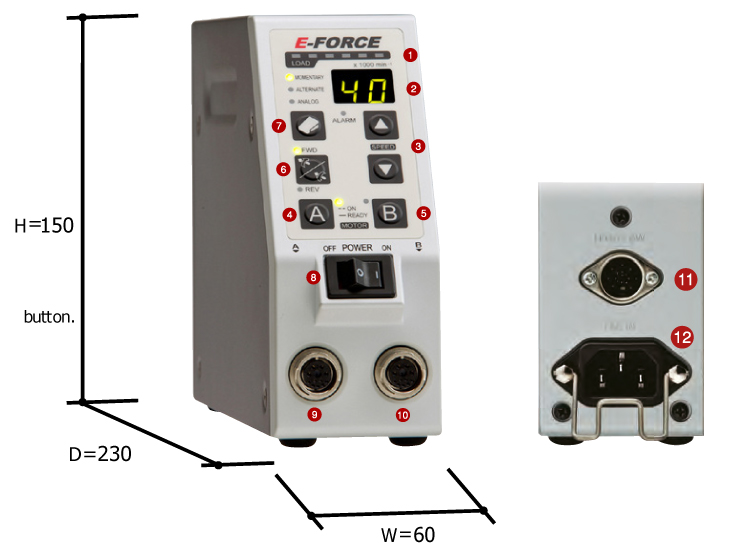

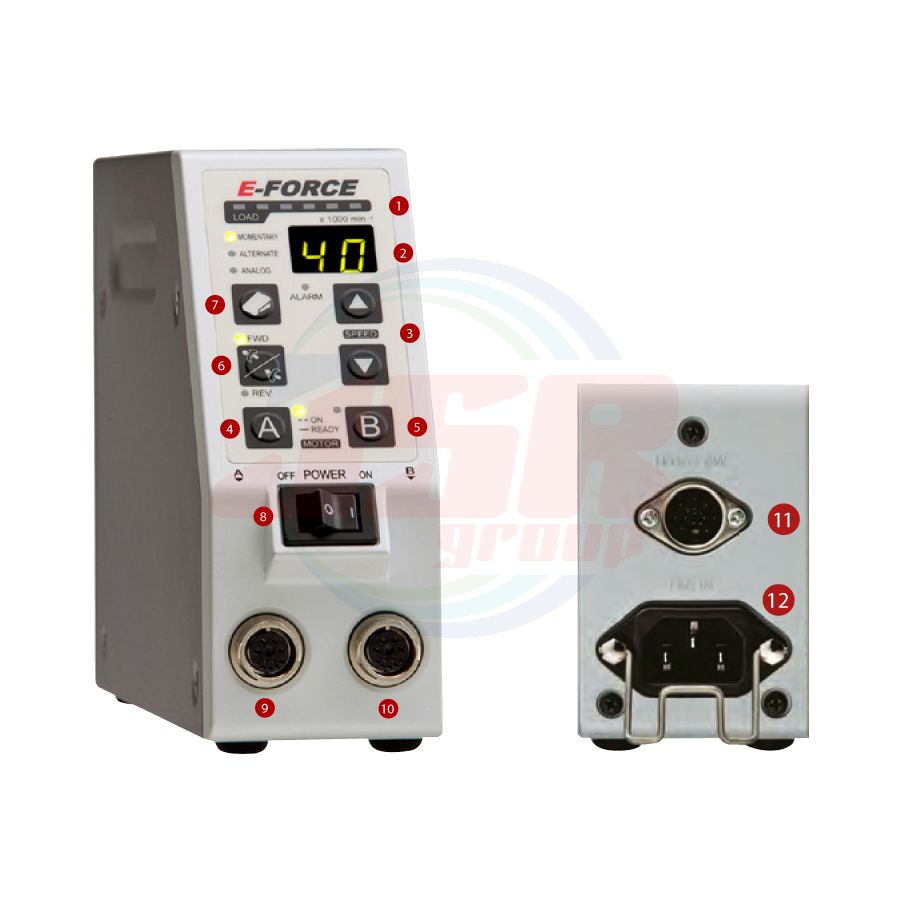

1001 | CONTROLLER | EIKO E-FORCE

 1. LOAD Meter

     (Continuously operable level. Recommended to use within this range.)

     ■:Continuous Load Range

     ■:Intermittent Load Range (Operable level with intermission.)

     ■:Overloaded Condition (Too much load.)

2. Rotation Speed Indicator

      Indicates the rotation speed and the error codes.

3. Rotation Speed Set Button (▲▼)

      Increases the rotation speed by pressing ▲ button, and decreases with ▼ button.

4. Motor Ａ Button

     Turns ＯＮ/ＯＦＦ Motor A.

5. Motor B Button

     Turns ＯＮ/ＯＦＦ Motor B.

6. Rotation Direction Switch Button

     Switches the direction of rotation.

7. Foot Switch Mode Select Button

     Available when the foot switch (optional) is connected.

     • Momentary Mode : Tool rotates at the set speed during pressing the foot switch.

     • Alternate Mode : Tool starts rotating at the set speed by pressing once, and stops by pressing again.

     • Analog Mode : Rotation speed changes according to the amount of pressing of the foot switch.

8. Power Switch

9. Motor A Connector

10.Motor B Connector

11.Foot Switch Connector

12.Power Cord Connector
