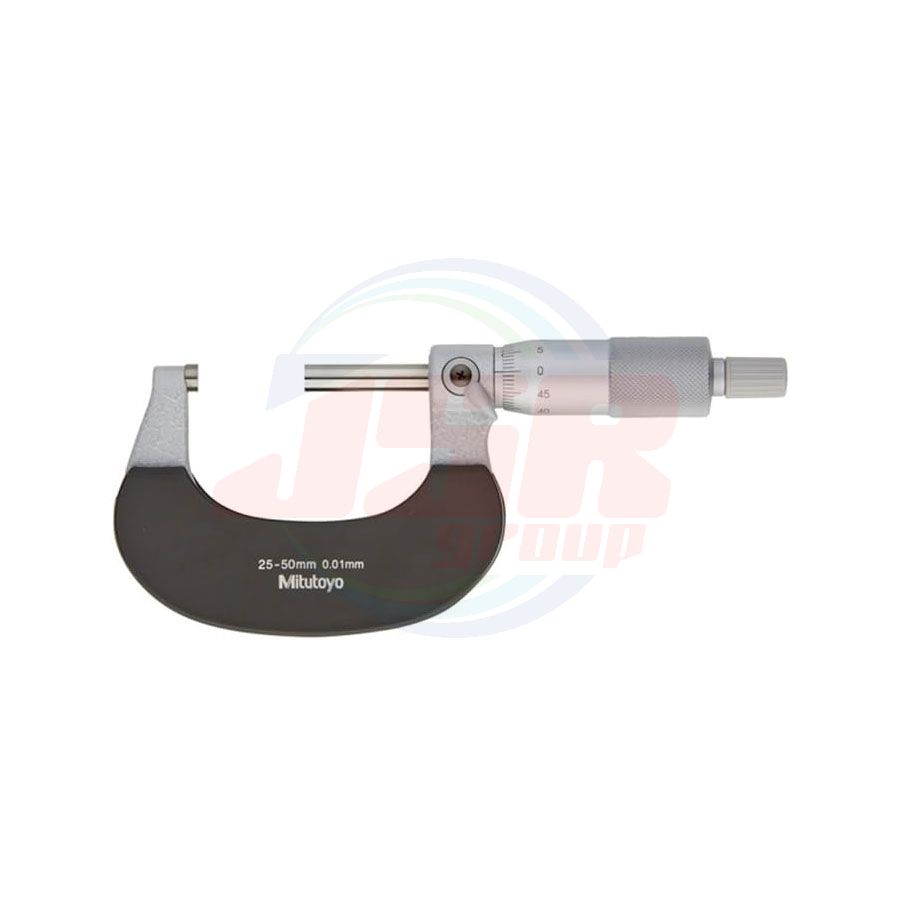

102-302 | Outside Micrometers SERIES 102 | MITUTOYO
ราคาพิเศษ
THB 0.00
THB 0.00
ราคาปรกติ
THB 2,279.10
พร้อมส่ง
SKU
102-302
• Standard analog micrometer. Thanks to a heat-insulated frame, it is resistant to heat and therefore delivers accurate measurement results.

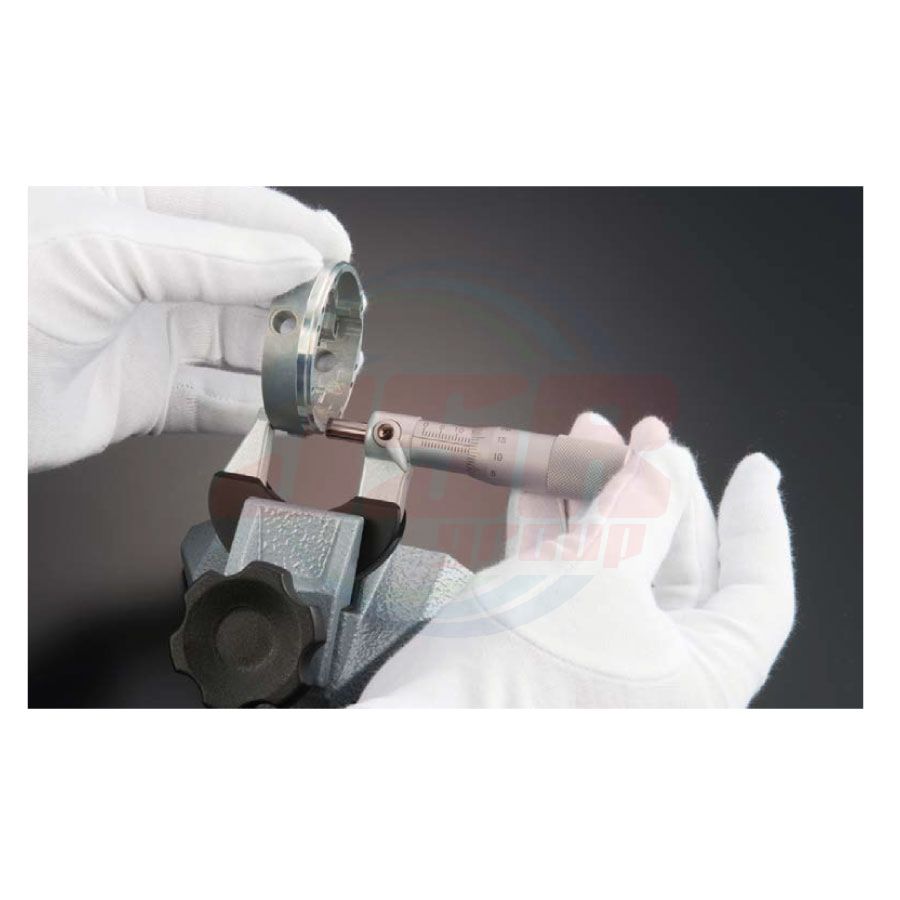

• Cut-away frame (behind anvil) for measuring in hard-to-reach places. • Equipped with Ratchet Stop for constant measuring force.
• Measuring faces: Carbide tipped
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Order No. | 103-302 (M310-50) |
| Range | 25 - 50 mm |
| Graduation | 0.01 mm |
| Measuring force (N) | 5 - 10 |
| Flatness | 0.6 µm |
| Parallelism | 2 µm |

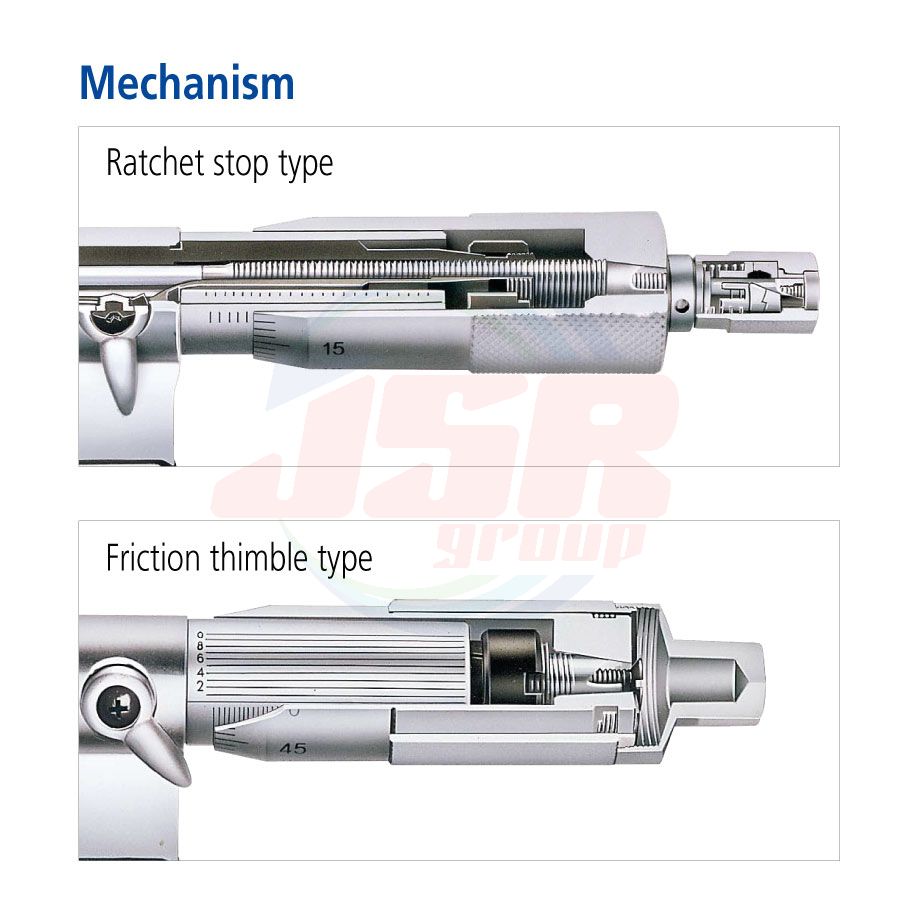

| Constant measuring force | Ratchet stop |
| Range (mm) | L | a | b | c |
| 0 - 25 | 0 | 5 | 26 | 2.5 |
| 25 - 50 | 25 | 7.8 | 32 | 2.5 |
| 50 - 75 | 50 | 10.6 | 45 | 2.5 |
| 75 - 100 | 75 | 11 | 58 | 2.5 |
