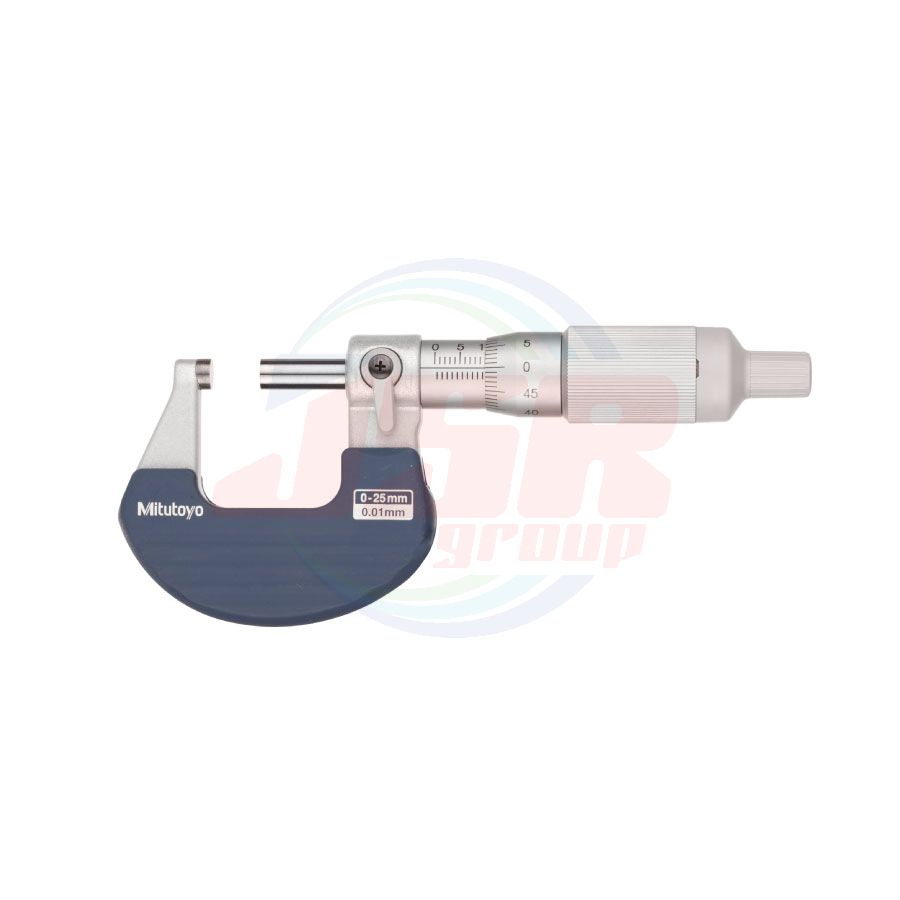

• The ratchet thimble mechanism enables easy one-handed operation, useful for inspecting samples during the manufacturing process.
• Ratchet function works both from the thimble and the speeder.
• Clearly audible ratchet operation for reassurance that measurement is being performed at constant, preset force.
• Heat-insulated frame.
• Measuring faces: Carbide tipped
SPECIFICATIONS
Metric
Order No. | Range (mm) |
Graduation (mm) |
Measuring force (N) |
Maximum permissible error J MPE (µm) |
Flatness (μm) | Parallelism (μm) | Mass (g) |
102-701 | 0 - 25 | 0.01 | 5 - 10 | ±2 | 0.6 | 2 | 180 |
102-707 | 0.001 | ||||||
102-702 | 25 - 50 | 0.01 | 270 | ||||
102-708 | 0.001 |
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models), Spanner (301336), 1 pc.
แบรนด์สินค้า | MITUTOYO |
---|---|
Digital/Analog | Analog |

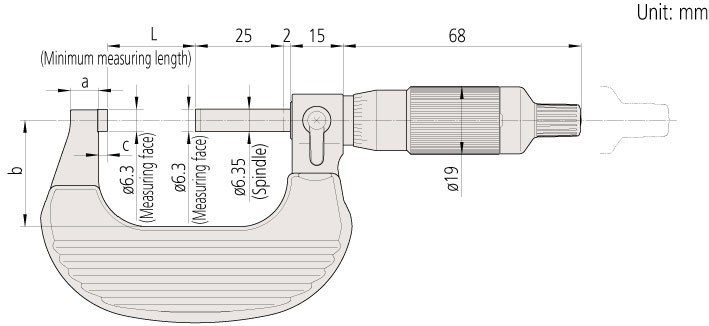

Order No. | L | a | b | c |
102-701 | 0 | 5 | 26 | 2.5 |
102-707 | ||||
102-702 | 25 | 7.8 | 30 | |
102-708 |
