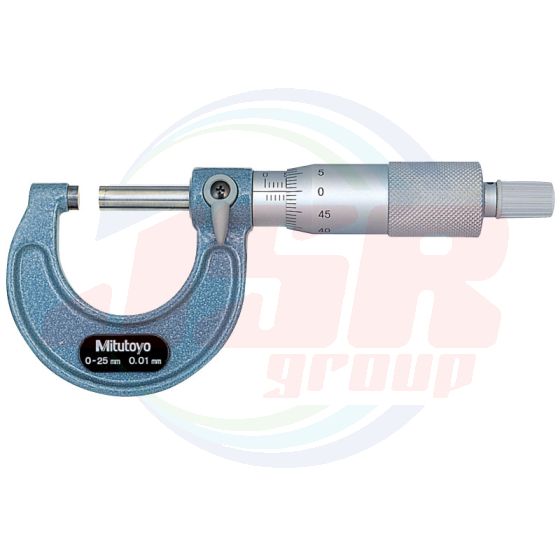

103-138 | Outside Micrometers SERIES 103 | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 967.29
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
103-138
QTY:
44

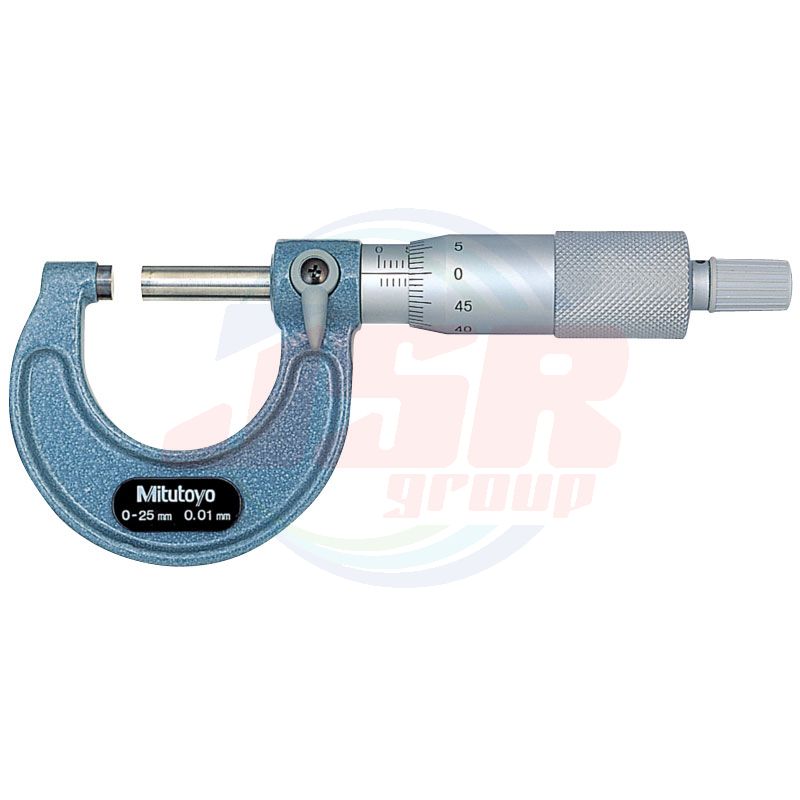

• This is a simple, classic analog micrometer that represents the roots of our company’s foundation.
• Measuring faces: Carbide tipped
• Equipped with Ratchet Stop for constant measuring force.
With ratchet stop
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Order No. | 103-137 (M110-25) |
| Range | 25 - 50 mm |
| Measuring force (N) | 5 - 10 |
| Graduation | 0.01 mm |
| Maximum Permissible Error J MPE | ±2 µm |
| Flatness | 0.6 µm |
| Parallelism | 2 µm |
| Range (mm) | L | a | b | c |
| 0 - 25 | 0 | 9 | 28 | 2.5 |
| 25 - 50 | 25 | 10 | 38 | 2.5 |
| 50 - 75 | 50 | 12 | 49 | 2.5 |
| 75 - 100 | 75 | 14 | 60 | 2.5 |
| 100 - 125 | 100 | 16.7 | 79 | 5.3 |
| 125 - 150 | 125 | 18.8 | 94 | 5.7 |
| 150 - 175 | 150 | 19.1 | 106 | 6.1 |
| 175 - 200 | 175 | 18.2 | 118 | 6.3 |
| 200 - 225 | 200 | 16.8 | 130 | 6.7 |
| 225 - 250 | 225 | 18 | 143 | 5.5 |
| 250 - 275 | 250 | 18 | 156 | 6.5 |
| 275 - 300 | 275 | 18 | 169 | 6.5 |
