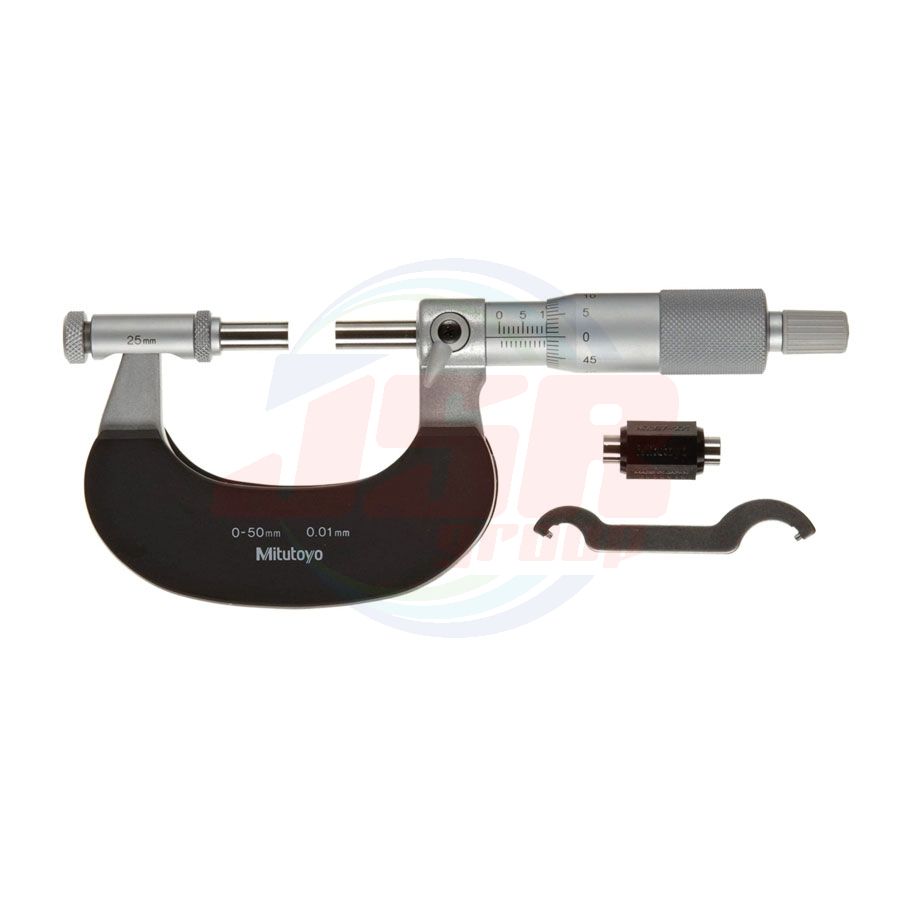

SERIES 104 | Outside Micrometers — with Interchangeable Anvils | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 4,483.30
พร้อมส่ง
SKU
1MIT-OMC-104
• Wide measuring range with interchangeable anvils.
• Measuring face of the spindle is carbide tipped (standard model).
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Spindle feed error (µm) |
Flatnessr (µm) |
Parallelism (µm) |
Interchangeable anvils |
Setting Standard | Micrometer head stroke (mm) | |
| Qty | Size (mm) | ||||||||
| Analog | |||||||||
| 104-171* | 0 - 50 | 0.01 | 3 | 0.6 | 2 | 1 pc. | 1 | 25 | 25 |
| 104-139A | 0 - 100 | 3 | 4 pcs. | 3 | 25 - 75 | ||||
| 104-135A | 0 - 150 | 6 pcs. | 5 | 25 - 125 | |||||
| 104-161A | 50 - 150 | 4 pcs. | 4 | 50 - 125 | |||||
| 104-140A | 100 - 200 | 4 | 100 - 175 | ||||||
| 104-136A | 150 - 300 | 5 | 6 pcs. | 6 | 150 - 275 | ||||
| 104-141A | 200 - 300 | 4 pcs. | 4 | 200 - 275 | |||||
| 104-142A | 300 - 400 | 1.0 | 6 | 300 - 375 | |||||
| 104-143A | 400 - 500 | 7 | 400 - 475 | ||||||
| 104-144A | 500 - 600 | 8 | 500 - 575 | ||||||
| 104-145A | 600 - 700 | 9 | 600 - 675 | ||||||
| 104-146A | 700 - 800 | 10 | 700 - 775 | ||||||
| 104-147A | 800 - 900 | 11 | 800 - 875 | ||||||
| 104-148A | 900 - 1000 | 12 | 900 - 975 | ||||||
* The frame is fitted with a heat shield.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
Interchangeable Anvil
| L: Range (mm) | |||||||
| Range | 0 - 150 mm models | 0 - 25 | 25 - 50 | 50 - 75 | 75 - 100 | 100 - 125 | 125 - 150 |
| Range | 150 - 300 mm models | 150 - 175 | 175 - 200 | 200 - 225 | 225 - 250 | 250 - 275 | 275 - 300 |
| Order No. | 303950 | 303951 | 303952 | 303953 | 303954 | 303955 | |
| c: Overall length (mm) | 135 | 110 | 85 | 60 | 35 | 10 | |
| Interchangeable anvil | M1 | M2 | M3 | M4 | M5 | M6 | |
| L: Range (mm) | |||||
| Range | 300 - 400 mm models | 300 - 325 | 325 - 350 | 350 - 375 | 375 - 400 |
| Range | 400 - 500 mm models | 400 - 425 | 425 - 450 | 450 - 475 | 475 - 500 |
| Range | 500 - 600 mm models | 500 - 525 | 525 - 550 | 550 - 575 | 575 - 600 |
| Range | 600 - 700 mm models | 600 - 625 | 625 - 650 | 650 - 675 | 675 - 700 |
| Range | 700 - 800 mm models | 700 - 725 | 725 - 750 | 750 - 775 | 775 - 800 |
| Range | 800 - 900 mm models | 800 - 825 | 825 - 850 | 850 - 875 | 875 - 900 |
| Range | 900 - 1000 mm models | 900 - 925 | 925 - 950 | 950 - 975 | 975 - 1000 |
| Order No. | 304001 | 304002 | 304003 | 304004 | |
| c: Overall length (mm) | 87 | 62 | 37 | 12 | |
| Interchangeable anvil | M3 | M4 | M5 | M6 | |
