SERIES 105 | Outside Micrometers — with Anvil Extension Collars (OMS)| MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 88,210.80
พร้อมส่ง
SKU
1MIT-OMS-P-105
• Square and round pipes are combined to create a lightweight, rigid frame.
• Wide measuring range with anvil extension collars.
• 50 mm/ 2 in spindle stroke.• Includes workpiece stopper.
• Measuring faces: Carbide tipped
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Graduation (mm) |
Extension Collars |
Setting Standard (pcs.) |
Spindle feed error (μm) |
Flatness (μm) |
Parallelism (μm) |
| (every 100 mm) | |||||||
| 105-408 | 1000 - 1100 | 0.01 | 1 pc. (50 mm) |
2 | 6 | 1.3 | 13 |
| 105-409 | 1100 - 1200 | 14 | |||||
| 105-410 | 1200 - 1300 | 15 | |||||
| 105-411 | 1300 - 1400 | 16 | |||||
| 105-412 | 1400 - 1500 | 17 | |||||
| 105-413 | 1500 - 1600 | 18 | |||||
| 105-414 | 1600 - 1700 | 19 | |||||
| 105-415 | 1700 - 1800 | 20 | |||||
| 105-416 | 1800 - 1900 | 21 | |||||
| 105-417 | 1900 - 2000 | 22 | |||||
| (every 200 mm) | |||||||
| 105-418 | 1000 - 1200 | 0.01 | 2 pcs. (50 mm, 100 mm) |
4 (every 50 mm) |
6 | 1.3 | 14 |
| 105-419 | 1200 - 1400 | 16 | |||||
| 105-420 | 1400 - 1600 | 18 | |||||
| 105-421 | 1600 - 1800 | 20 | |||||
| 105-422 | 1800 - 2000 | 22 | |||||
• Standard Accessories: Spanner (200154), 1 pc.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |

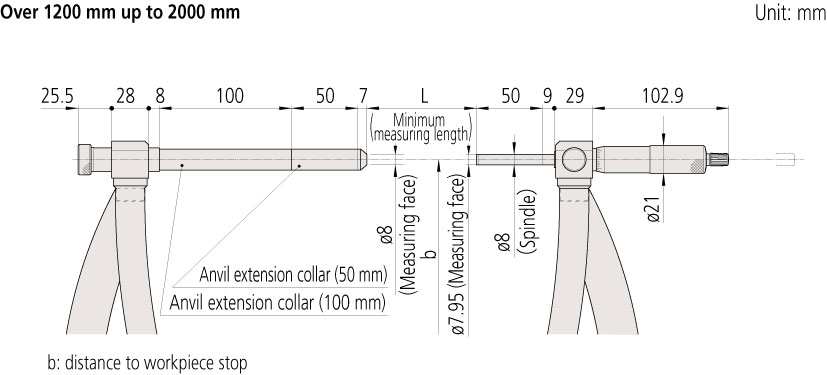

| Range (mm) | L | b |
| 1000 - 1200 | 1000 | 500 - 600 |
| 1200 - 1400 | 1200 | 600 - 700 |
| 1400 - 1600 | 1400 | 700 - 800 |
| 1600 - 1800 | 1600 | 800 - 900 |
| 1800 - 2000 | 1800 | 900 - 1000 |
