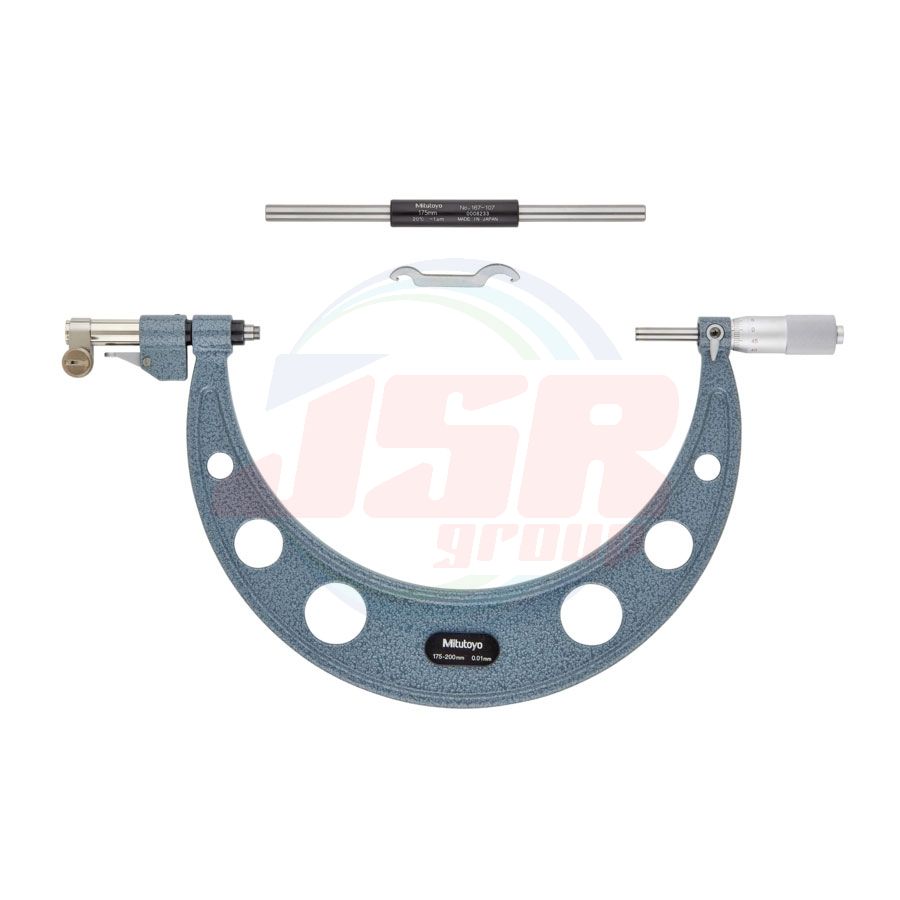

107-208 |Indicator Type Micrometers SERIES 107 | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 8,042.99
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
107-208
QTY:
0
• Designed to mount a dial indicator for direct GO/±NG judgment for mass-produced parts.
• Anvil retracting trigger for quick measurement.
• Various kinds of indicators* are available depending on the measurement type (accuracy required, measuring range, etc.).
• Measuring faces: Carbide tipped
• Anvil stroke: 3 mm
*Only stems of ø8 diameter are supported, but even these may not be supported by some models. Please contact our Customer Support Center or your nearest Mitutoyo sales office for detailed specifications.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Order No. | 107-208 (OMD-200R) |
| Range | 175 - 200 mm |
| Spindle feed error | 3 µm |
| Flatness | 0.6 µm |
| Parallelism | 4 µm |
| Range (mm) | b | d |
| 0 - 25 | 30 | 39 |
| 25 - 50 | 38 | 64 |
| 50 - 75 | 45 | 89.5 |
| 75 - 100 | 65 | 115.1 |
| 100 - 125 | 79 | 140.1 |
| 125 - 150 | 93 | 165.1 |
| 150 - 175 | 105 | 190 |
| 175 - 200 | 118 | 214 |
