SERIES 107 | Indicator Type Micrometers| MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 9,865.40
พร้อมส่ง
SKU
1MIT-OMD-R-107
• Designed to mount a dial indicator for direct GO/±NG judgment for mass-produced parts.
• Anvil retracting trigger for quick measurement.
• Various kinds of indicators* are available depending on the measurement type (accuracy required, measuring range, etc.).
• Measuring faces: Carbide tipped
• Anvil stroke: 3 mm
*Only stems of ø8 diameter are supported, but even these may not be supported by some models. Please contact our Customer Support Center or your nearest Mitutoyo sales office for detailed specifications.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Spindle feed error (μm) | Flatness (μm) | Parallelism (μm) |
| 107-201 | 0 - 25 | 3 | 0.6 | 2 |
| 107-202 | 25 - 50 | |||
| 107-203 | 50 - 75 | |||
| 107-204 | 75 - 100 | 3 | ||
| 107-205 | 100 - 125 | |||
| 107-206 | 125 - 150 | |||
| 107-207 | 150 - 175 | |||
| 107-208 | 175 - 200 | 4 |
• Setting standard, 1 pc. (except for measuring range 0 to 25 mm models), Spanner (301336), 1 pc.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |

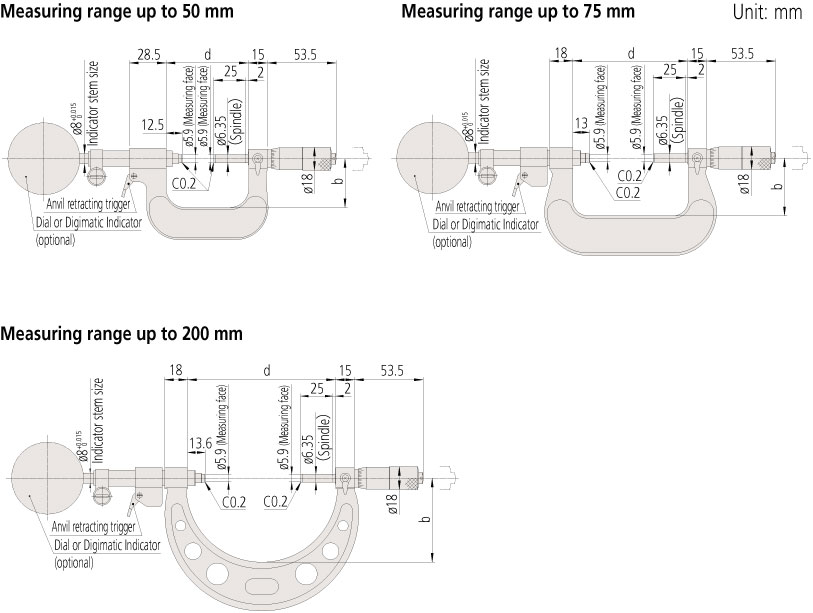

| Range (mm) | b | d |
| 0 - 25 | 30 | 39 |
| 25 - 50 | 38 | 64 |
| 50 - 75 | 45 | 89.5 |
| 75 - 100 | 65 | 115.1 |
| 100 - 125 | 79 | 140.1 |
| 125 - 150 | 93 | 165.1 |
| 150 - 175 | 105 | 190 |
| 175 - 200 | 118 | 214 |
