10WHNSB-TH | Carbide Oil Hole Non Step Borer 10D | MOLDINO
ราคาต่ำสุด
THB 0.00
ราคารวม VAT แล้ว
พร้อมส่ง
SKU
10WHNSB-TH
QTY:
0

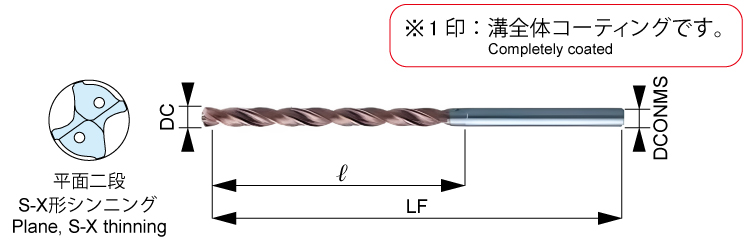

下表を参照
Refer to under table
| 商品コード Item code |
在庫 Stock |
寸法 Size(mm) | |||
|---|---|---|---|---|---|
| 直径 Tool dia. |
溝長 Flute length |
全長 Overall length |
シャンク径 Shank dia. |
||
| DC | ℓ | LF | DCONMS | ||
| ※1 10WHNSB0200-TH | ● | 2.0 | 30 | 80 | 3.0 |
| ※1 10WHNSB0210-TH | ● | 2.1 | 30 | 80 | 3.0 |
| ※1 10WHNSB0220-TH | ● | 2.2 | 30 | 80 | 3.0 |
| ※1 10WHNSB0230-TH | ● | 2.3 | 33 | 80 | 3.0 |
| ※1 10WHNSB0240-TH | ● | 2.4 | 33 | 80 | 3.0 |
| ※1 10WHNSB0250-TH | ● | 2.5 | 33 | 80 | 3.0 |
| ※1 10WHNSB0260-TH | ● | 2.6 | 35 | 85 | 3.0 |
| ※1 10WHNSB0270-TH | ● | 2.7 | 35 | 85 | 3.0 |
| ※1 10WHNSB0280-TH | ● | 2.8 | 39 | 85 | 3.0 |
| ※1 10WHNSB0290-TH | ● | 2.9 | 39 | 87 | 3.0 |
| ※1 10WHNSB0300-TH | ● | 3.0 | 39 | 87 | 3.0 |
| ※1 10WHNSB0310-TH | ● | 3.1 | 46 | 94 | 4.0 |
| ※1 10WHNSB0320-TH | ● | 3.2 | 46 | 94 | 4.0 |
| ※1 10WHNSB0330-TH | ● | 3.3 | 46 | 94 | 4.0 |
| ※1 10WHNSB0340-TH | ● | 3.4 | 46 | 94 | 4.0 |
| ※1 10WHNSB0350-TH | ● | 3.5 | 46 | 94 | 4.0 |
| ※1 10WHNSB0360-TH | ● | 3.6 | 52 | 101 | 4.0 |
| ※1 10WHNSB0370-TH | ● | 3.7 | 52 | 101 | 4.0 |
| ※1 10WHNSB0380-TH | ● | 3.8 | 52 | 101 | 4.0 |
| ※1 10WHNSB0390-TH | ● | 3.9 | 52 | 101 | 4.0 |
| ※1 10WHNSB0400-TH | ● | 4.0 | 52 | 101 | 4.0 |
| ※1 10WHNSB0410-TH | ● | 4.1 | 59 | 110 | 5.0 |
| ※1 10WHNSB0420-TH | ● | 4.2 | 59 | 110 | 5.0 |
| ※1 10WHNSB0430-TH | ● | 4.3 | 59 | 110 | 5.0 |
| ※1 10WHNSB0440-TH | ● | 4.4 | 59 | 110 | 5.0 |
| ※1 10WHNSB0450-TH | ● | 4.5 | 59 | 110 | 5.0 |
| ※1 10WHNSB0460-TH | ● | 4.6 | 66 | 117 | 5.0 |
| ※1 10WHNSB0470-TH | ● | 4.7 | 66 | 117 | 5.0 |
| ※1 10WHNSB0480-TH | ● | 4.8 | 66 | 117 | 5.0 |
| ※1 10WHNSB0490-TH | ● | 4.9 | 66 | 117 | 5.0 |
| ※1 10WHNSB0500-TH | ● | 5.0 | 66 | 117 | 5.0 |
| ※1 10WHNSB0510-TH | ● | 5.1 | 72 | 123 | 6.0 |
| ※1 10WHNSB0520-TH | ● | 5.2 | 72 | 123 | 6.0 |
| ※1 10WHNSB0530-TH | ● | 5.3 | 72 | 123 | 6.0 |
| ※1 10WHNSB0540-TH | ● | 5.4 | 72 | 123 | 6.0 |
| ※1 10WHNSB0550-TH | ● | 5.5 | 72 | 123 | 6.0 |
| ※1 10WHNSB0560-TH | ● | 5.6 | 79 | 130 | 6.0 |
| ※1 10WHNSB0570-TH | ● | 5.7 | 79 | 130 | 6.0 |
| ※1 10WHNSB0580-TH | ● | 5.8 | 79 | 130 | 6.0 |
| ※1 10WHNSB0590-TH | ● | 5.9 | 79 | 130 | 6.0 |
| ※1 10WHNSB0600-TH | ● | 6.0 | 79 | 130 | 6.0 |
| ※1 10WHNSB0610-TH | ● | 6.1 | 85 | 138 | 7.0 |
| ※1 10WHNSB0620-TH | ● | 6.2 | 85 | 138 | 7.0 |
| ※1 10WHNSB0630-TH | ● | 6.3 | 85 | 138 | 7.0 |
| ※1 10WHNSB0640-TH | ● | 6.4 | 85 | 138 | 7.0 |
| ※1 10WHNSB0650-TH | ● | 6.5 | 85 | 138 | 7.0 |
| ※1 10WHNSB0660-TH | ● | 6.6 | 92 | 145 | 7.0 |
| ※1 10WHNSB0670-TH | ● | 6.7 | 92 | 145 | 7.0 |
| ※1 10WHNSB0680-TH | ● | 6.8 | 92 | 145 | 7.0 |
| ※1 10WHNSB0690-TH | ● | 6.9 | 92 | 145 | 7.0 |
| ※1 10WHNSB0700-TH | ● | 7.0 | 92 | 145 | 7.0 |
| ※1 10WHNSB0710-TH | ● | 7.1 | 98 | 153 | 8.0 |
| ※1 10WHNSB0720-TH | ● | 7.2 | 98 | 153 | 8.0 |
| ※1 10WHNSB0730-TH | ● | 7.3 | 98 | 153 | 8.0 |
| ※1 10WHNSB0740-TH | ● | 7.4 | 98 | 153 | 8.0 |
| ※1 10WHNSB0750-TH | ● | 7.5 | 98 | 153 | 8.0 |
| ※1 10WHNSB0760-TH | ● | 7.6 | 105 | 160 | 8.0 |
| ※1 10WHNSB0770-TH | ● | 7.7 | 105 | 160 | 8.0 |
| ※1 10WHNSB0780-TH | ● | 7.8 | 105 | 160 | 8.0 |
| ※1 10WHNSB0790-TH | ● | 7.9 | 105 | 160 | 8.0 |
| ※1 10WHNSB0800-TH | ● | 8.0 | 105 | 160 | 8.0 |
| ※1 10WHNSB0810-TH | □ | 8.1 | 111 | 166 | 9.0 |
| ※1 10WHNSB0820-TH | □ | 8.2 | 111 | 166 | 9.0 |
| ※1 10WHNSB0830-TH | ● | 8.3 | 111 | 166 | 9.0 |
| ※1 10WHNSB0840-TH | ● | 8.4 | 111 | 166 | 9.0 |
| ※1 10WHNSB0850-TH | ● | 8.5 | 111 | 166 | 9.0 |
| 10WHNSB0860-TH | □ | 8.6 | 118 | 173 | 9.0 |
| 10WHNSB0870-TH | □ | 8.7 | 118 | 173 | 9.0 |
| 10WHNSB0880-TH | ● | 8.8 | 118 | 173 | 9.0 |
| 10WHNSB0890-TH | ● | 8.9 | 118 | 173 | 9.0 |
| 10WHNSB0900-TH | ● | 9.0 | 118 | 173 | 9.0 |
| 10WHNSB0910-TH | □ | 9.1 | 124 | 179 | 10.0 |
| 10WHNSB0920-TH | □ | 9.2 | 124 | 179 | 10.0 |
| 10WHNSB0930-TH | ● | 9.3 | 124 | 179 | 10.0 |
| 10WHNSB0940-TH | ● | 9.4 | 124 | 179 | 10.0 |
| 10WHNSB0950-TH | ● | 9.5 | 124 | 179 | 10.0 |
| 10WHNSB0960-TH | □ | 9.6 | 131 | 186 | 10.0 |
| 10WHNSB0970-TH | □ | 9.7 | 131 | 186 | 10.0 |
| 10WHNSB0980-TH | ● | 9.8 | 131 | 186 | 10.0 |
| 10WHNSB0990-TH | ● | 9.9 | 131 | 186 | 10.0 |
| 10WHNSB1000-TH | ● | 10.0 | 131 | 186 | 10.0 |
| 10WHNSB1010-TH | □ | 10.1 | 138 | 193 | 11.0 |
| 10WHNSB1020-TH | □ | 10.2 | 138 | 193 | 11.0 |
| 10WHNSB1030-TH | ● | 10.3 | 138 | 193 | 11.0 |
| 10WHNSB1040-TH | ● | 10.4 | 138 | 193 | 11.0 |
| 10WHNSB1050-TH | ● | 10.5 | 138 | 193 | 11.0 |
| 10WHNSB1060-TH | □ | 10.6 | 144 | 205 | 11.0 |
| 10WHNSB1070-TH | □ | 10.7 | 144 | 205 | 11.0 |
| 10WHNSB1080-TH | ● | 10.8 | 144 | 205 | 11.0 |
| 10WHNSB1090-TH | ● | 10.9 | 144 | 205 | 11.0 |
| 10WHNSB1100-TH | ● | 11.0 | 144 | 205 | 11.0 |
| 10WHNSB1110-TH | □ | 11.1 | 151 | 212 | 12.0 |
| 10WHNSB1120-TH | □ | 11.2 | 151 | 212 | 12.0 |
| 10WHNSB1130-TH | ● | 11.3 | 151 | 212 | 12.0 |
| 10WHNSB1140-TH | ● | 11.4 | 151 | 212 | 12.0 |
| 10WHNSB1150-TH | ● | 11.5 | 151 | 212 | 12.0 |
| 10WHNSB1160-TH | □ | 11.6 | 157 | 218 | 12.0 |
| 10WHNSB1170-TH | □ | 11.7 | 157 | 218 | 12.0 |
| 10WHNSB1180-TH | ● | 11.8 | 157 | 218 | 12.0 |
| 10WHNSB1190-TH | ● | 11.9 | 157 | 218 | 12.0 |
| 10WHNSB1200-TH | ● | 12.0 | 157 | 218 | 12.0 |
| 10WHNSB1210-TH | □ | 12.1 | 164 | 225 | 13.0 |
| 10WHNSB1220-TH | □ | 12.2 | 164 | 225 | 13.0 |
| 10WHNSB1230-TH | □ | 12.3 | 164 | 225 | 13.0 |
| 10WHNSB1240-TH | □ | 12.4 | 164 | 225 | 13.0 |
| 10WHNSB1250-TH | ● | 12.5 | 164 | 225 | 13.0 |
| 10WHNSB1260-TH | □ | 12.6 | 170 | 236 | 13.0 |
| 10WHNSB1270-TH | □ | 12.7 | 170 | 236 | 13.0 |
| 10WHNSB1280-TH | □ | 12.8 | 170 | 236 | 13.0 |
| 10WHNSB1290-TH | □ | 12.9 | 170 | 236 | 13.0 |
| 10WHNSB1300-TH | ● | 13.0 | 170 | 236 | 13.0 |
●印：標準在庫品です。● : Stocked items.
□印：特定代理店在庫です。弊社営業へお問い合せください。□： Stocked by specified distributor. Contact with our sales department.
