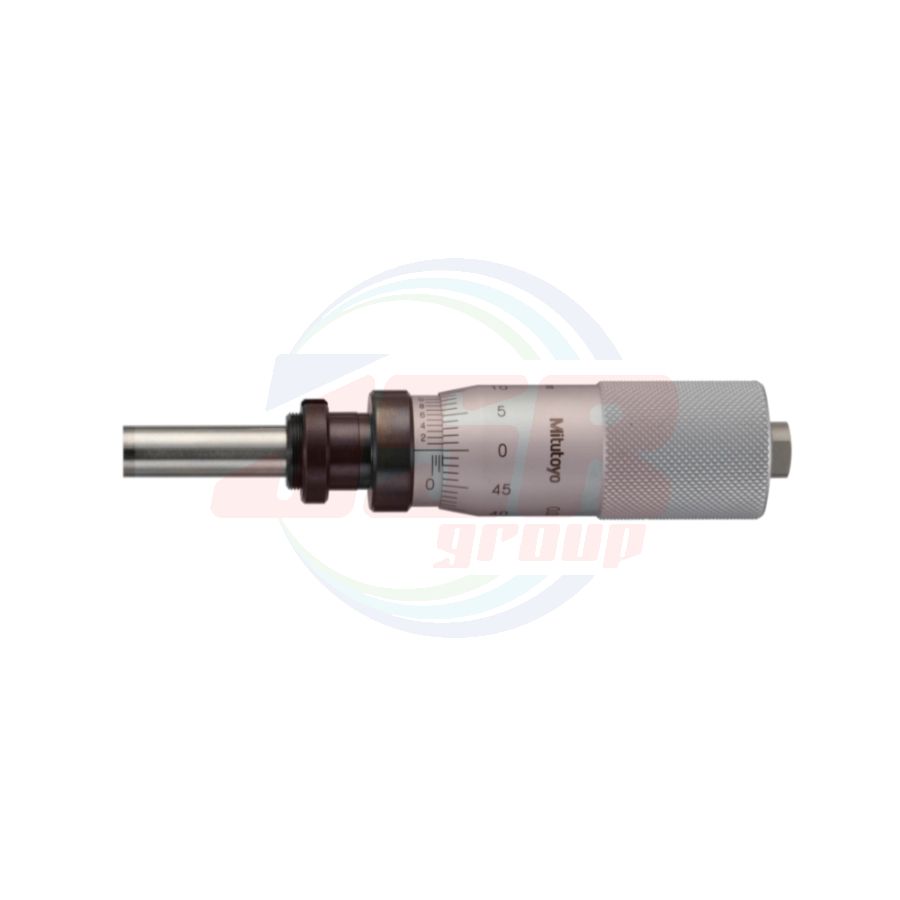

110-107-10 | Micrometer Heads SERIES 110 — Differential Screw Thread Translator (Extra-Fine Feed) Type | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 3,849.53
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
110-107-10
QTY:
10
• Differential movements of spindle threads and units allow extra-fine spindle feeding (0.05 mm/rev), resulting in high-resolution measurements.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Graduation (mm) | Graduation features | Stem dia. (mm) | Stem | Spindle end | Maximum permissible error J MPE*² (μm) | ||
| 110-101 | 0 - 2.5 | 0.001 | Standard | 12 | W/clamp nut | Flat (carbide tip) | ±5/±1.5 | ||
| 110-102 | 0.0001 | Fine | |||||||
| 110-105-10 | 0 - 1 | 0.001 | Standard | ±3/±1.5 | |||||
| 110-106-10 | 0.0001 | Fine | |||||||
| 110-107-10 | 0.001 | Standard | Spherical (SR10) (carbide tip) | ||||||
| 110-108-10 | 0.0001 | Fine | |||||||
| 110-502-10 | Thimble (fine) | 0 - 0.2 | Thimble (fine) | 0.0005 |
Dual scales; |
9.5 | Spherical | ±3/±1.5 | |
| Thimble (coarse) | 0 - 13 | Thimble (coarse) | 0.01 | ||||||
• Measuring face: Material / Carbide tip (110-502-10/504-10 are alloy tool steel), Hardness /90 HRA or more (Only 110-502-10/504-10 are 60 HRC or more), Lapped
• Scale finishing: Satin-chrome plated
*1 Made-to-order models
*2 Wide range/narrow range
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 110-107-10 (MHF4-1A) |
| Range | 0 - 1 mm |
| Graduation | 0.01 mm |
| Graduation features | Standard |
| Stem dia. | 12 mm |
| Stem | W/clamp nut |
| Spindle end | Spherical (SR10) (carbide tip) |
| Maximum permissible error J MPE | ±3/±1.5 μm |
