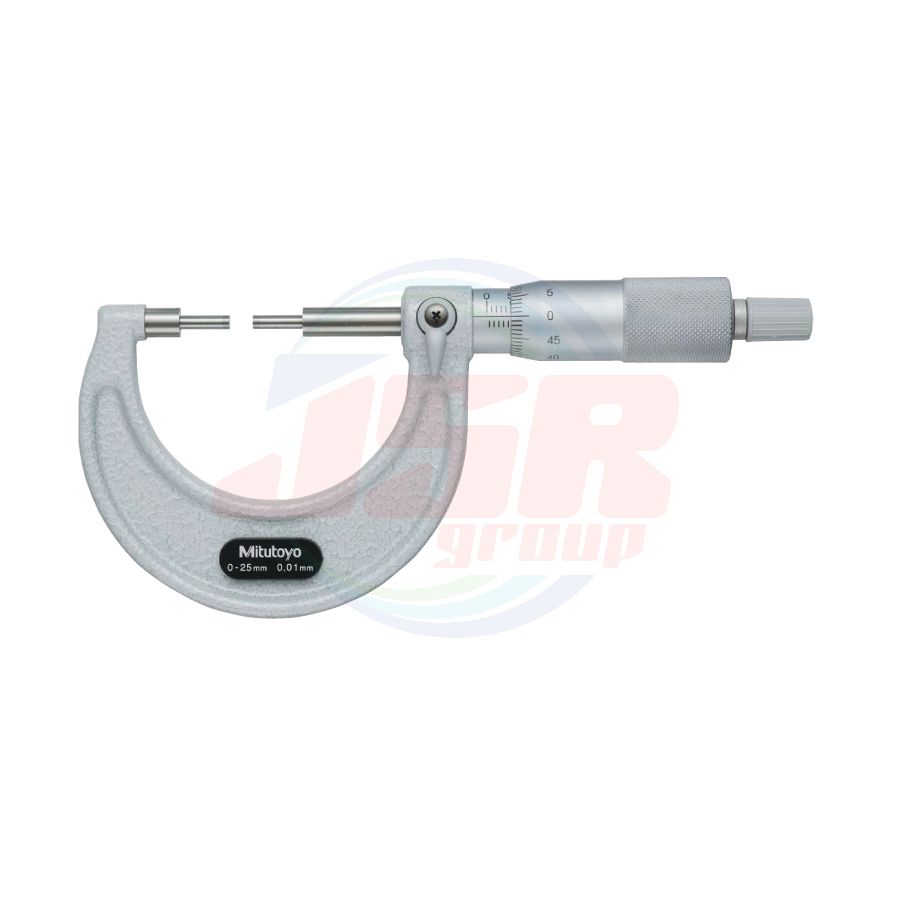

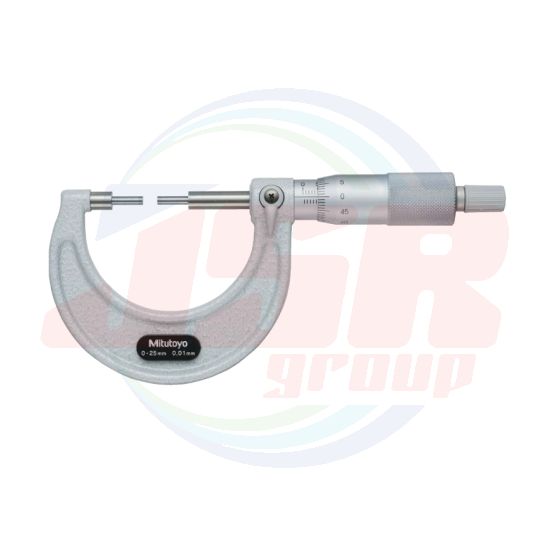

111-115 | Spline Micrometers SERIES 111 | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 2,349.53
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
111-115
QTY:
0
• The anvil and spindle have a small diameter for measuring splined shafts, slots and keyways.
• Measuring faces: Carbide tipped
• Equipped with Ratchet Stop for constant measuring force.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Order No. | 111-115 (SPM-25) |
| Range | 0 - 25 mm |
| Graduation | 0.01 mm |
| Flatness | 0.3 µm |
| Parallelism | 2 µm |

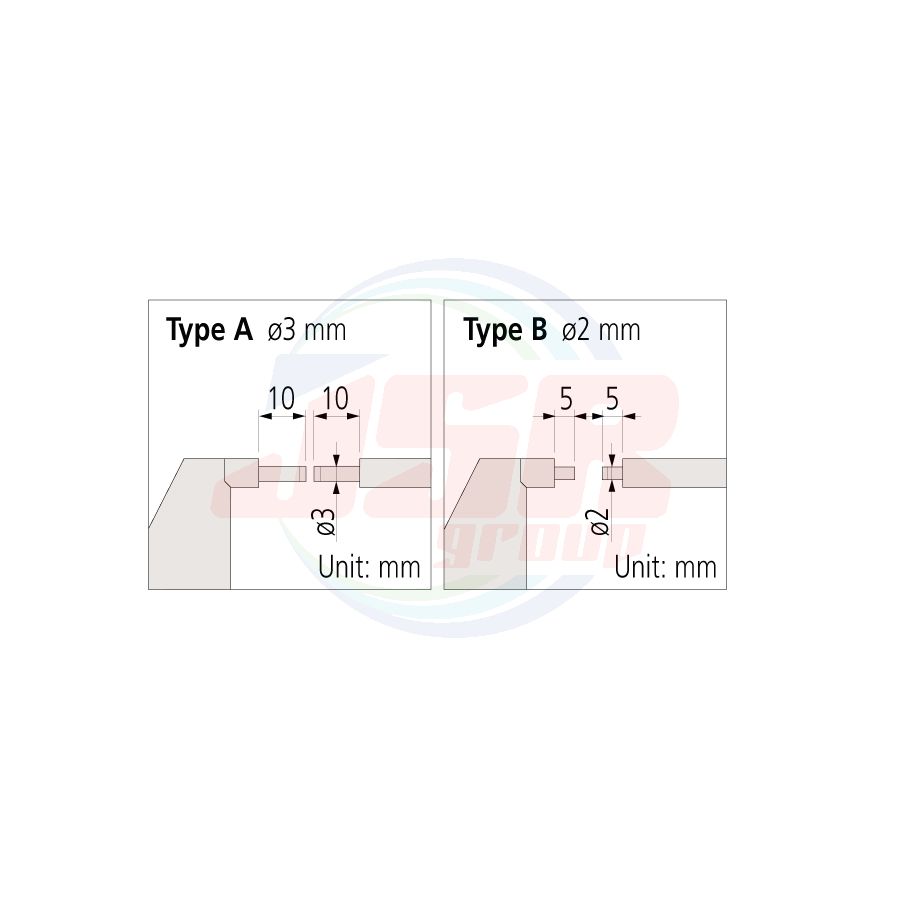

| Measuring face | Type A |
| Order No. | L | a | b | c |
| 111-215 | 0 | 10 | 38 | 17.5 |
| 111-115 | ||||
| 111-116 | 25 | 12 | 49 | |
| 111-117 | 50 | 14 | 60 | |
| 111-118 | 75 | 16.7 | 79 | 20.3 |
| 111-119 | 100 | 18.8 | 94 | 20.7 |
| 111-120 | 125 | 19.1 | 106 | 21.1 |
| 111-121 | 150 | 18.2 | 118 | 21.3 |
| 111-122 | 175 | 16.8 | 130 | 21.7 |
| 111-123 | 200 | 18 | 143 | 20.5 |
| 111-124 | 225 | 156 | 21.5 | |
| 111-125 | 250 | 169 | ||
| 111-126 | 275 | 181 |
