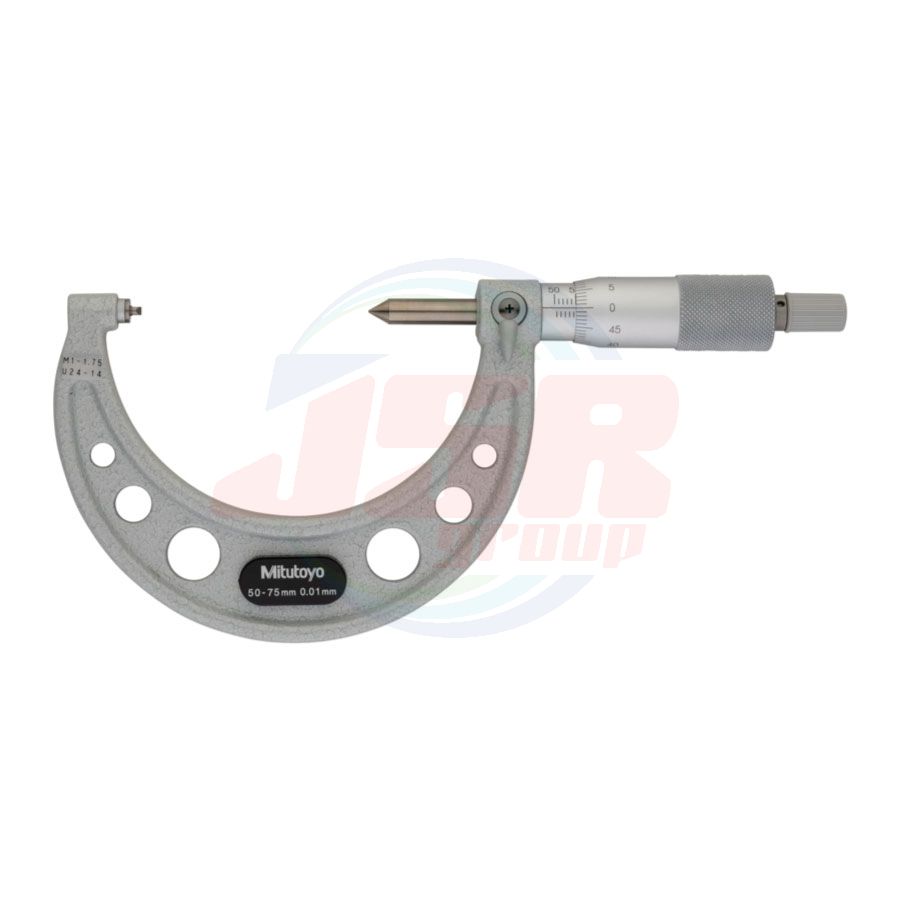

125-113 | Screw Thread Micrometers - Series 125 | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 3,615.89
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
125-113
QTY:
0
• Directly indicates screw pitch diameter (no need for calculation).
• Fixed anvil type. Select the right model to meet the specifications of your screw thread.
• Equipped with Ratchet Stop for constant measuring force.
• Supplied with a setting standard for adjusting zero point for metric (unified) 60º threads.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Order No. | 125-113 (TP 2-3MM) |
| Range | 50 - 75 mm |
| Thread to be measured (Metric / Unified) | 2 - 3 mm / 13 - 9 TPI |
| Spindle feed error | 3 μm |
| Graduation | 0.01 mm |
| Rnage (mm) | L | a | b |
| 0 - 25 | 0 | 13.8 | 25 |
| 25 - 50 | 25 | 13.8 | 32 |
| 50 - 75 | 50 | 12 | 49 |
| 75 - 100 | 75 | 14 | 63 |
