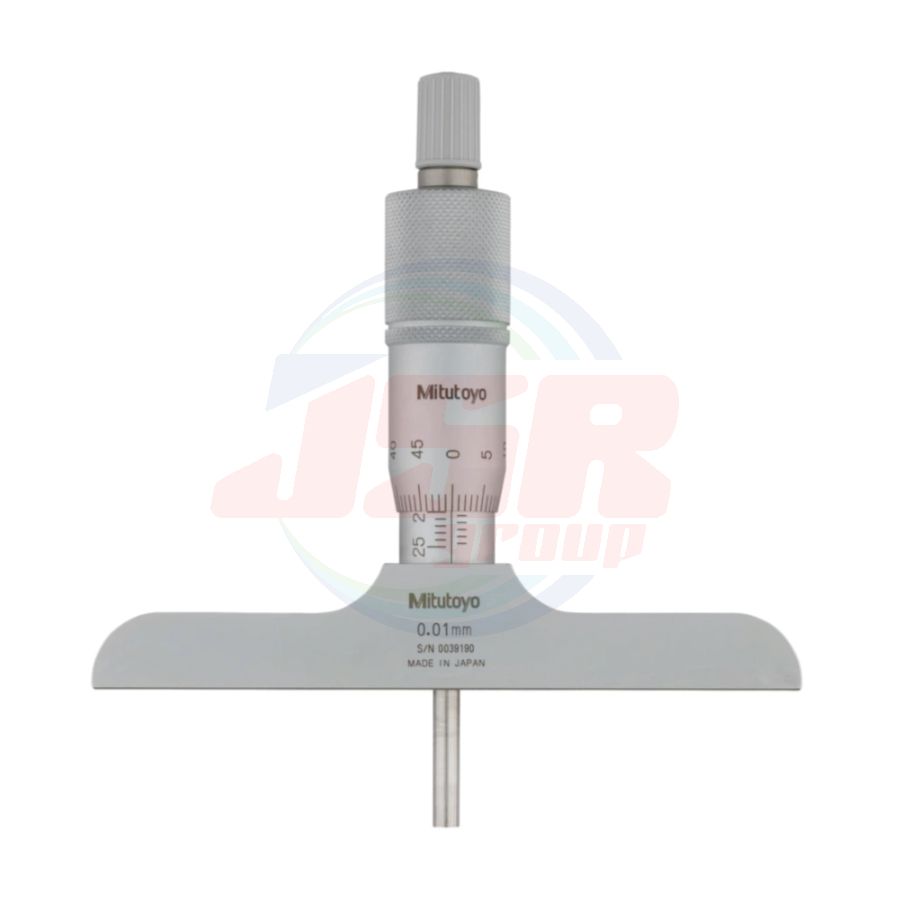

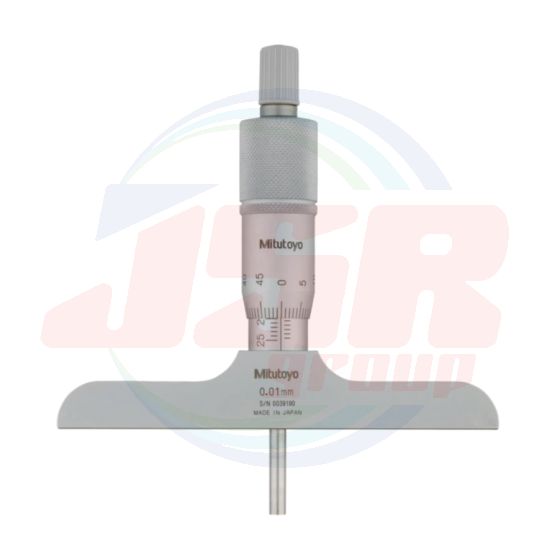

128-104 | Depth Micrometer SERIES 128 | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 2,631.78
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
128-104
QTY:
0
• Measuring rod diameter: ø4 mm.
• With measuring rod clamp. Note: The clamp is unseen in the picture.
• Carbide-tipped measuring rod model is available.With ratchet stop for constant measuring force.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Maximum permissible error J MPE (μm) |
Flatness of reference surface (base) (μm) |
Flatness of measuring face (rod) (μm) |
Parallelism between reference face and measuring rod face (μm |
Base (mm) |
| 128-101 | 0 - 25 | 0.01 | ±3 | 1.3 | 0.3 | within 5 | 63.5×16 |
| 128-103* | |||||||
| 128-102 | 2 | 101.6×16 | |||||
| 128-104* |
• Standard Accessories: 301336 Spanner
* With carbide-tipped measuring rod
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Order No. | 128-104 (DMS100-25W) |
| Range | 0 - 25 mm |
| Graduation | 0.01 mm |
| Maximum permissible error J MPE | ±3 μm |
| Flatness of reference surface (base) | 2 µm |
| Flatness of measuring face (rod) | 0.3 µm |
| Parallelism between reference face and measuring rod face | within 5 |
| Base | 101.6×16 mm |
