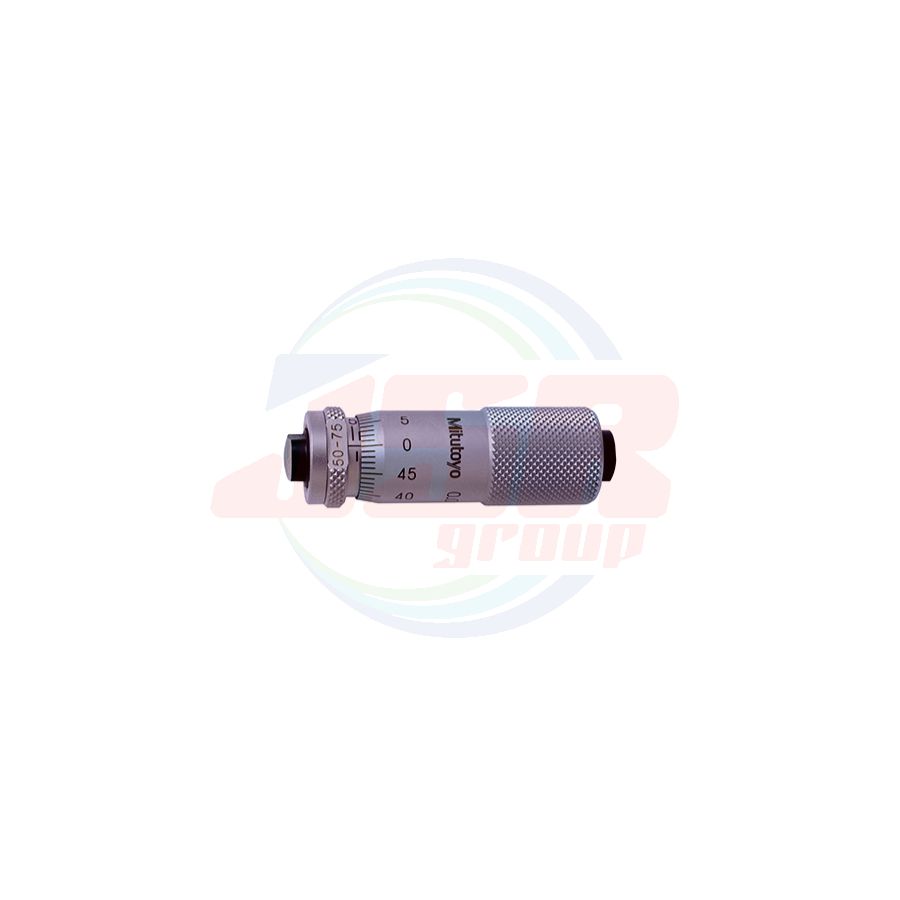

133-143 | Tubular Inside Micrometers SERIES 133 — Single-Rod Type | MITUTOYO
ราคาพิเศษ
THB 0.00
THB 0.00
ราคาปรกติ
THB 2,652.53
พร้อมส่ง
SKU
133-143
• Standard Single-rod Type inside micrometer.
• Carbide-tipped measuring faces.
• A reference gage is necessary for reference point setting.

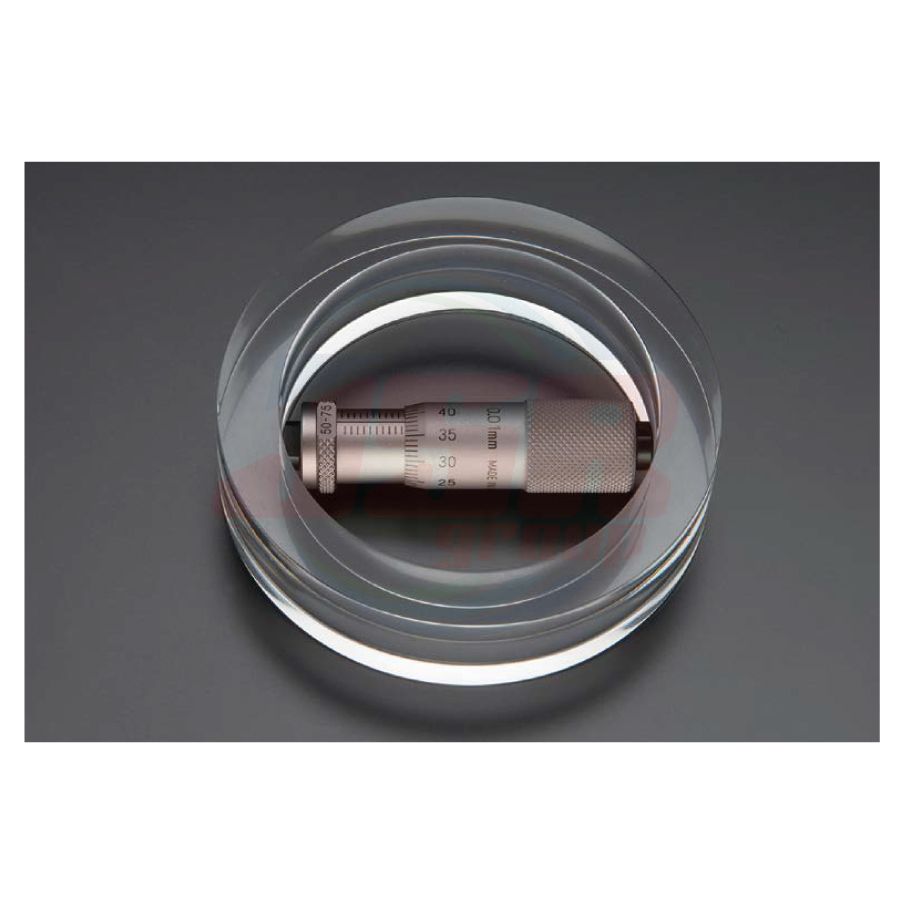

• An optional reference gage, such as Gauge Block Accessory Set, CERA inside Micro Checker or a setting ring, is required for accurately setting the micrometer before measuring.
SPECIFICATIONS
Metric ___ Individual
| Order No. | Range (mm) | Graduation (mm) | Maximum permissible error J MPE (μm) |
| 133-143 | 50 - 75 | 0.01 | ±3 |
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Inch-Metric | Metric |
| Digital/Analog | Analog |
| Order no. | 133-143 (IM-75) |
| Range | 50 - 75 mm |
| Graduation | 0.01 mm |
| Maximum permissible error J MPE | ±3 μm |

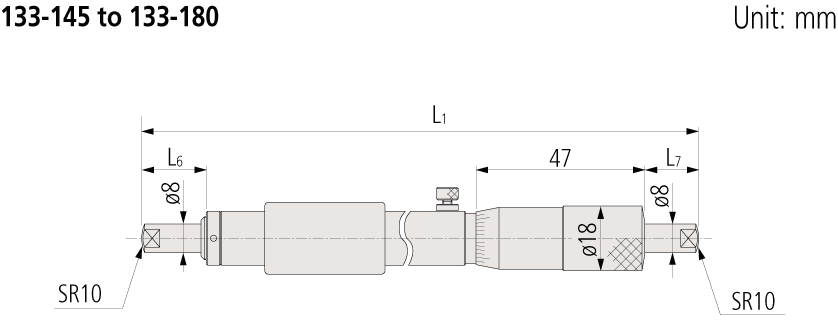

| Order No. | L1 | L6 | L7 |
| 133-145 | 100 | 5 | 3 |
| 133-146 | 125 | 5 | 3 |
| 133-147 | 150 | 18 | 15 |
| 133-148 | 175 | 18 | 15 |
|
133-149 | | | 133-180 |
200 | | | 975 |
18 | | | 18 |
15 | | | 15 |
