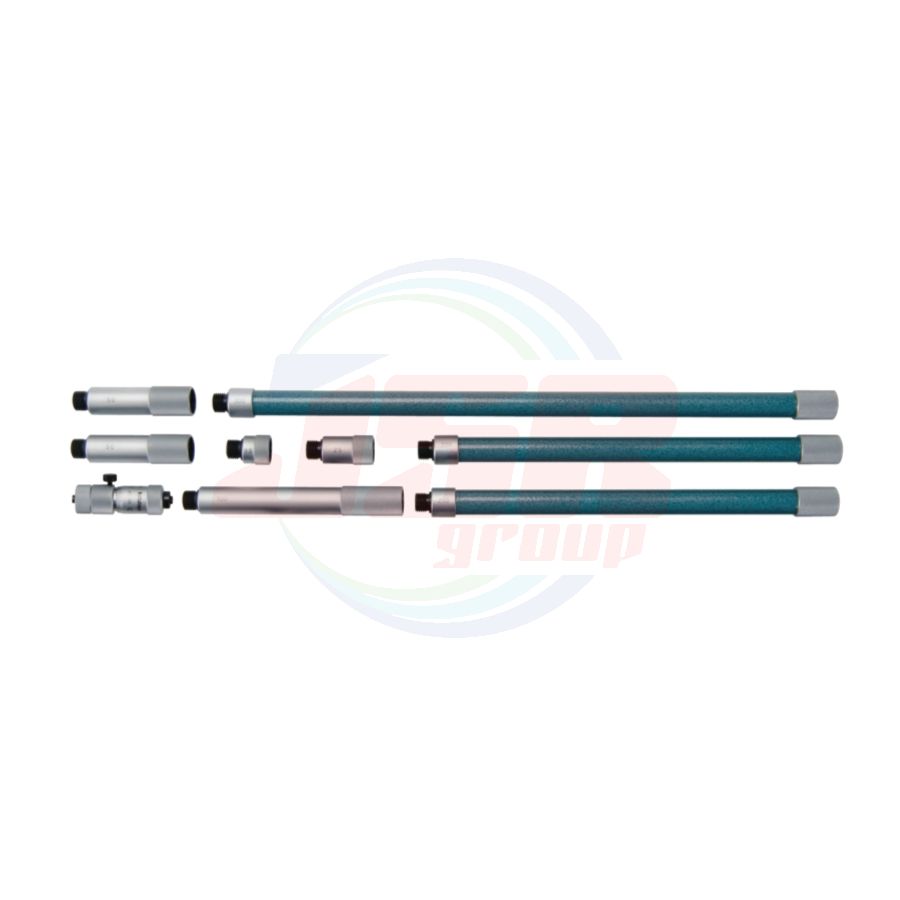

137-204 | Tubular Inside Micrometers SERIES 137 — Extension-Rod Type | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 5,842.06
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
137-204
QTY:
3
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Graduation (mm) |
Spindle feed error* (μm) |
Micrometer head stroke (mm) |
Extension rods | Main unit (mm) |
|
| Qty | Size (mm) | ||||||
| 137-201 | 50 -150 | 0.01 | 3 | 13 | 3 | 13, 25, 50 | 50 - 63 |
| 137-202 | 50 - 300 | 5 | 13, 25, 50 (2 pcs.), 100 | ||||
| 137-203 | 50 - 500 | 6 | 13, 25, 50 (2 pcs.), 100, 200 | ||||
| 137-204 | 50 - 1000 | 8 | 13, 25, 50 (2 pcs.), 100, 200 (2 pcs.), 300 |
||||
| 137-205 | 50 - 1500 | 10 | 13, 25, 50 (2 pcs.), 100, 200 (3 pcs.), 300 (2 pcs.) |
||||
| With carbide measuring face | |||||||
| 137-206 | 50 -150 | 0.01 | 3 | 13 | 3 | 13, 25, 50 | 50 - 63 |
| 137-207 | 50 - 300 | 5 | 13, 25, 50 (2 pcs.), 100 | ||||
| 137-208 | 50 - 500 | 6 | 13, 25, 50 (2 pcs.), 100, 200 | ||||
| 137-209 | 50 - 1000 | 8 | 13, 25, 50 (2 pcs.), 100, 200 (2 pcs.), 300 |
||||
| 137-210 | 50 - 1500 | 10 | 13, 25, 50 (2 pcs.), 100, 200 (3 pcs.), 300 (2 pcs.) |
||||
* "Spindle feed error” refers to the difference between the maximum and minimum indication error values within the measuring range of the micrometer head
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Order no. | 137-204 (IMZ-1000) |
| Range | 50 - 1000 mm |
| Graduation | 0.01 mm |
| Spindle feed error | 3 µm |
| Micrometer head stroke | 13 mm |
| Extension rod | 8 pcs. (13, 25, 50 (2 pcs.), 100, 200 (2 pcs.), 300 mm) |
| Main Unit | 50 - 63 mm |
