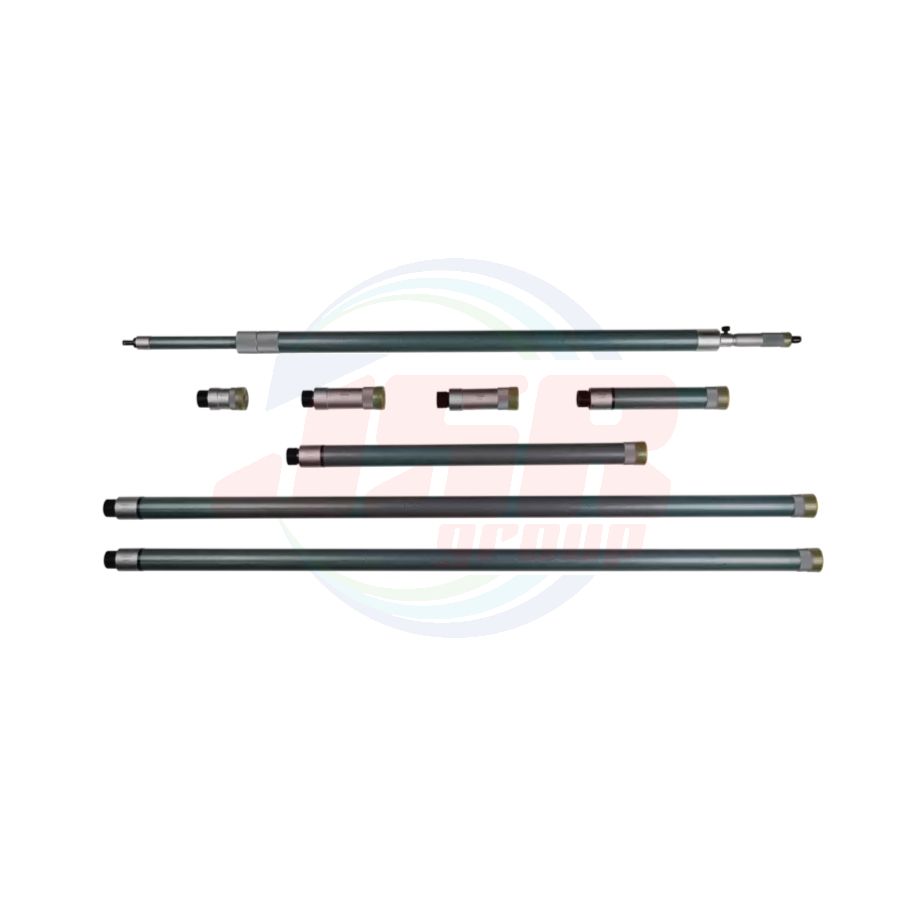

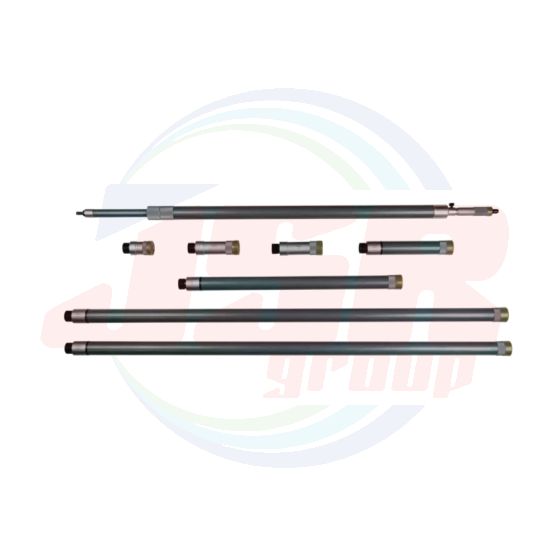

140-159 | Tubular Inside Micrometers SERIES 140 — Extension-Pipe Type | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 51,562.62
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
140-159
QTY:
2
• Wide range of inside measurements possible by combining Extension pipes and anvils with the micrometer head.
• An optional reference gage is required for accurately setting the micrometer before measuring.
• Carbide-tipped measuring faces.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Resolution (mm) |
Spindle feed error* (μm) |
Micrometer head stroke (mm) |
Extension pipes | Display unit (mm) |
|
| Qty | Size (mm) | ||||||
| 140-157 | 1000 - 2000 | 0.01 | 6 | 50 | 5 | 50, 100 (2 pcs.), 200, 500 | 100 - 125 |
| 140-158 | 1000 - 3000 | 6 | 50, 100 (2 pcs.), 200, 500, 1000 | ||||
| 140-159 | 1000 - 4000 | 7 | 50, 100 (2 pcs.), 200, 500, 1000 (2 pcs.) | ||||
| 140-160 | 1000 - 5000 | 8 | 50, 100 (2 pcs.), 200, 500, 1000 (3 pcs.) | ||||
* "Spindle feed error” refers to the difference between the maximum and minimum indication error values within the measuring range of the micrometer head
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Analog |
| Inch-Metric | Metric |
| Order no. | 140-159 (IMJ-4000) |
| Range | 1000 - 4000 mm |
| Graduation | 0.01 mm |
| Spindle feed error | 6 µm |
| Micrometer head stroke | 50 mm |
| Extension rod | 7 pcs. (50, 100 (2 pcs.), 200, 500, 1000 (2 pcs.)) |
| Main Unit | 1000 - 1050 mm |
