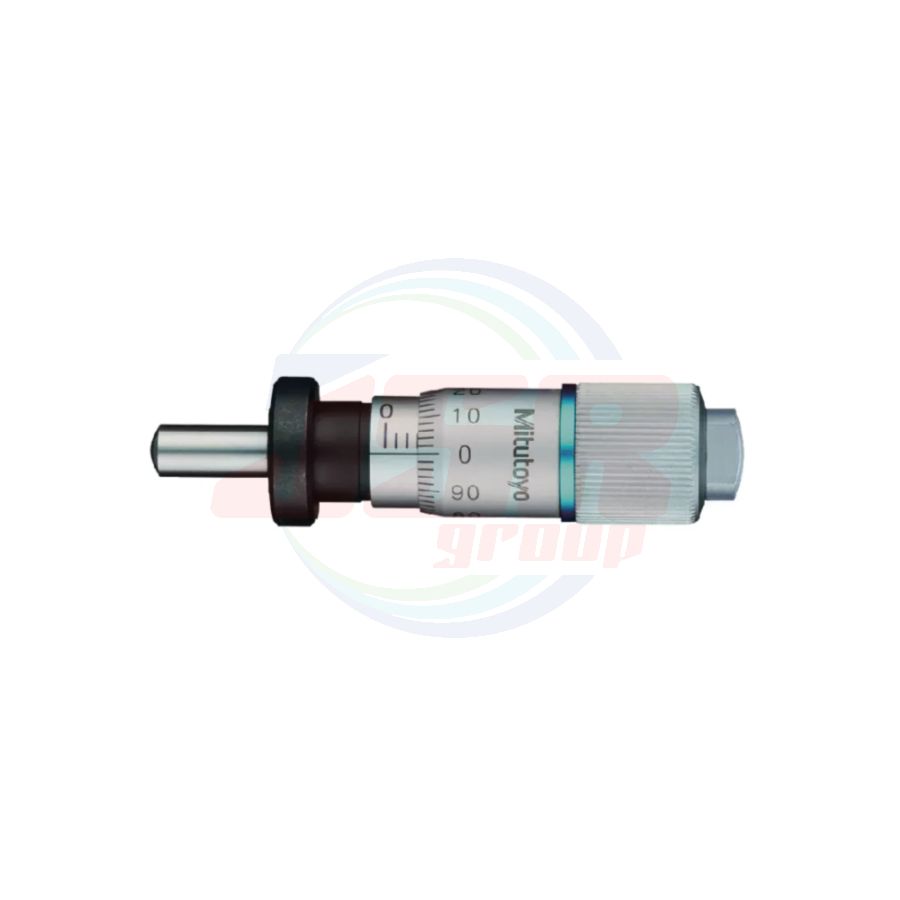

148-143-10 | Micrometer Heads SERIES 148 — Fine Spindle Feed of 0.1 mm/rev | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 1,906.54
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
148-143-10
QTY:
10
• Fine spindle feeding of just 0.1 mm/rev (one fifth compared with standard model). Suitable for extra-fine adjustment and positioning.
• External dimensions are compatible with standard 0.5 mm pitch heads.
• Suitable for the fine feeding of precision stages on semiconductor equipment and optical-axis alignment device.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Stem dia. (mm) |
Stem | Spindle end |
Spindle pitch (mm) |
Maximum permissible error J MPE (μm) |
Special features |
| 148-142-10 | 0 - 6.5 | 0.002 | 9.5 | Plain | Spherical (SR4) |
0.1 | ±2 | — |
| 148-143-10 | W/clamp nut | |||||||
| 148-342-10 | Plain | Thicker & shorter thimble | ||||||
| 148-343-10 | W/clamp nut | |||||||
| 148-242-10 | 6 | Plain | Spherical (SR3) |
±5 | Small thimble diameter |
|||
| 148-243-10 | W/clamp nut | |||||||
| 148-244 | 0 - 5 | 0.004 | 3.5 | Plain | Spherical (SR1.5) |
|||
| 148-245 | W/clamp nut |
• Measuring face: Material / Alloy tool steel, Hardness / 60 HRC or more, Lapped
• Scale finishing: Satin-chrome plated
| แบรนด์สินค้า | MITUTOYO |
|---|---|

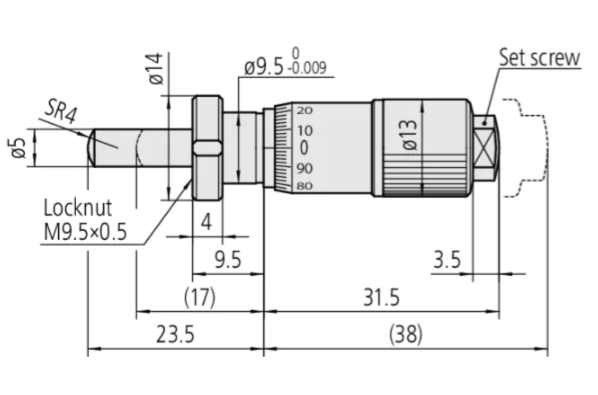

| Order No. | 148-143-10 (MHS4-6.5FPA) |
| Range | 0 - 6.5 mm |
| Graduation | 0.002 mm |
| Stem dia. | 9.5 mm |
| Stem | W/clamp nut |
| Spindle end | Spherical (SR4) |
| Spindle pitch | 0.1 mm |
| Maximum permissible error J MPE | ±2 μm |
| Special features | — |
