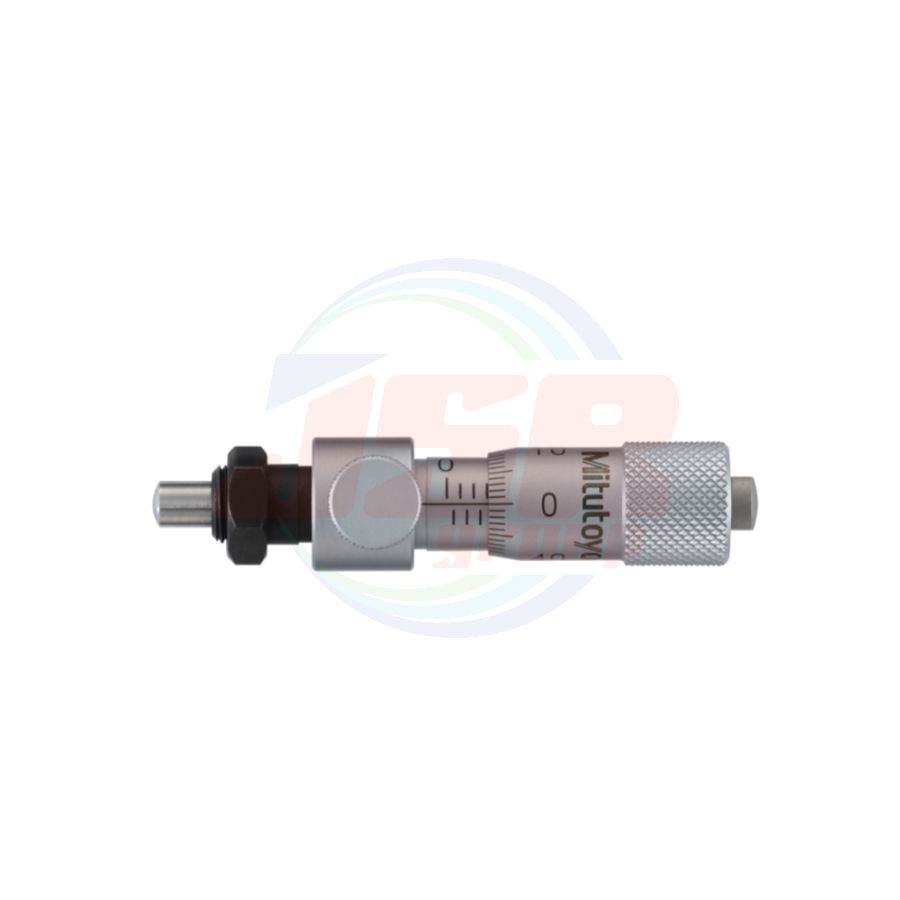

148-223-10 | Micrometer Heads SERIES 148 — Locking-screw Type | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 1,031.78
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
148-223-10
QTY:
0
• This model with enhanced clamping force created by a locking screw can be reliably used on positioning equipment or instruments constantly exposed to vibration.

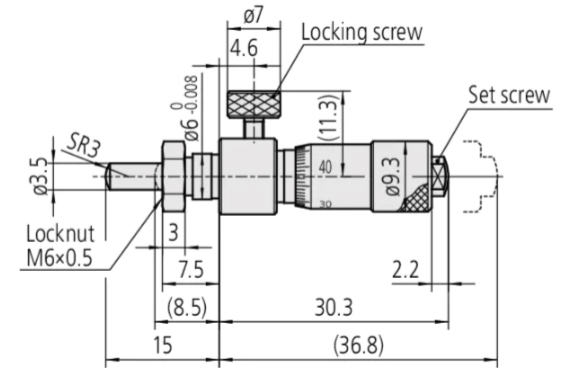

• Position of the locking screw is the same as the sleeve index line.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Stem dia. (mm) |
Stem | Spindle end | Graduation features |
Maximum permissible error J MPE (μm) |
| 148-220-10 | 0 - 6.5 | 0.01 | 6 | Plain | Flat | Standard | ±5 |
| 148-221-10 | W/clamp nut | ||||||
| 148-222-10 | Plain | Spherical (SR3) | |||||
| 148-223-10 | W/clamp nut | ||||||
| 148-150-10 | 0 - 13 | 9.5 | Plain | Flat | ±2 | ||
| 148-151-10 | W/clamp nut | ||||||
| 148-152-10 | Plain | Spherical (SR4) | |||||
| 148-153-10 | W/clamp nut | ||||||
| 148-316-10 | 0 - 6.5 | Plain | Flat | ||||
| 148-317-10 | W/clamp nut | ||||||
| 148-318-10 | Plain | Spherical (SR4) | |||||
| 148-319-10 | W/clamp nut |
• Measuring face: Material / Alloy tool steel, Hardness / 60 HRC or more, Lapped
• Scale finishing: Satin-chrome plated
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 148-223-10 (MHT4-6.5LCA) |
| Range | 0 - 6.5 mm |
| Graduation | 0.01 mm |
| Stem dia. | 6 mm |
| Stem | W/clamp nut |
| Spindle end | Spherical (SR3) |
| Graduation features | Standard |
| Maximum permissible error J MPE | ±5 μm |
