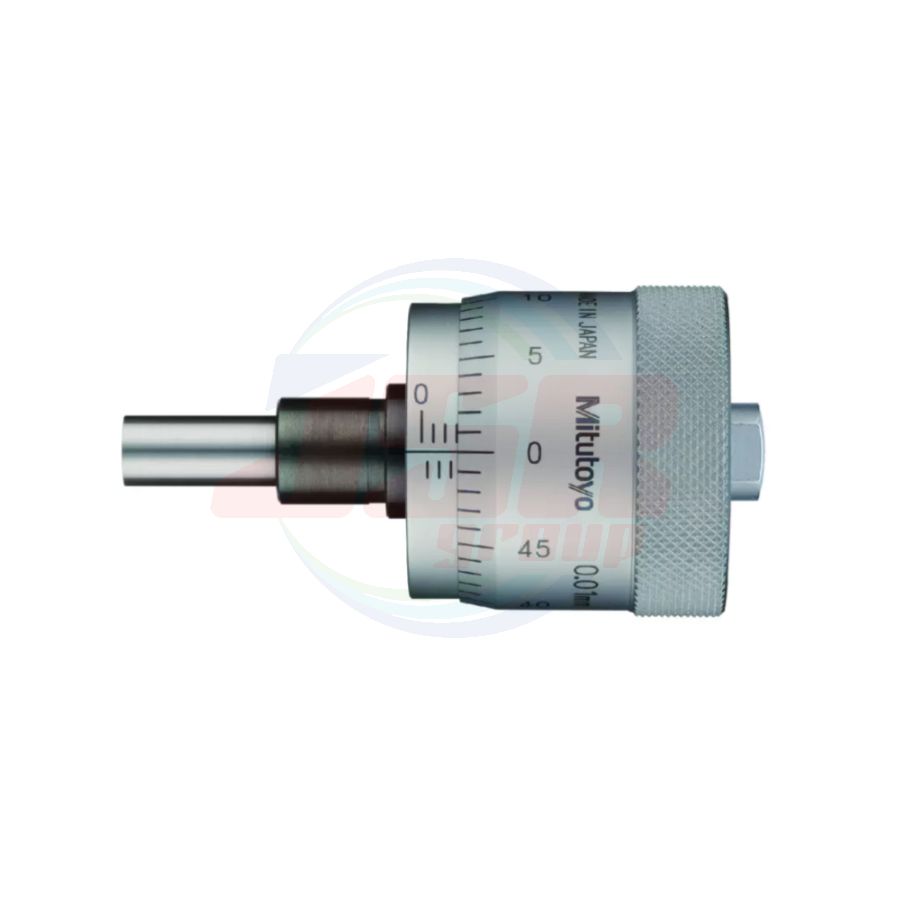

148-311-10 | Micrometer Heads SERIES 148 — Short Thimble with Choice of Diameter | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 1,353.27
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
148-311-10
QTY:
10
• Short body design maintains measuring range for limited space applications.
• Three types of thimble diameters can be selected depending on applications.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Maximum permissible error J MPE (μm) |
Stem dia. (mm) |
Stem | Spindle end | Thimble dia. (mm) |
| 148-301-10 | 0 - 6.5 | ±2 | 9.5 | Plain | Flat | 15 |
| 148-302-10 | W/clamp nut | |||||
| 148-303-10 | Plain | 20 | ||||
| 148-304-10 | W/clamp nut | |||||
| 148-313-10 | Plain | Spherical (SR4) |
15 | |||
| 148-314-10 | W/clamp nut | |||||
| 148-307-10 | 0 - 13 | Plain | Flat | 15 | ||
| 148-308-10 | W/clamp nut | |||||
| 148-309-10 | Plain | 20 | ||||
| 148-310-10 | W/clamp nut | |||||
| 148-311-10 | Plain | 29 | ||||
| 148-312-10 | W/clamp nut |
• Graduation: 0.01 mm
• Spindle pitch: 0.5 mm
• Measuring face: Material / Alloy tool steel, Hardness / 60 HRC or more, Lapped
• Scale finishing: Satin-chrome plated
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 148-311-10 (MHC1-13GA) |
| Range | 0 - 13 mm |
| Maximum permissible error J MPE | ±2 μm |
| Stem dia. | 9.5 mm |
| Stem | Plain |
| Spindle end | Flat |
| Thimble dia. (mm) | 29 mm |
