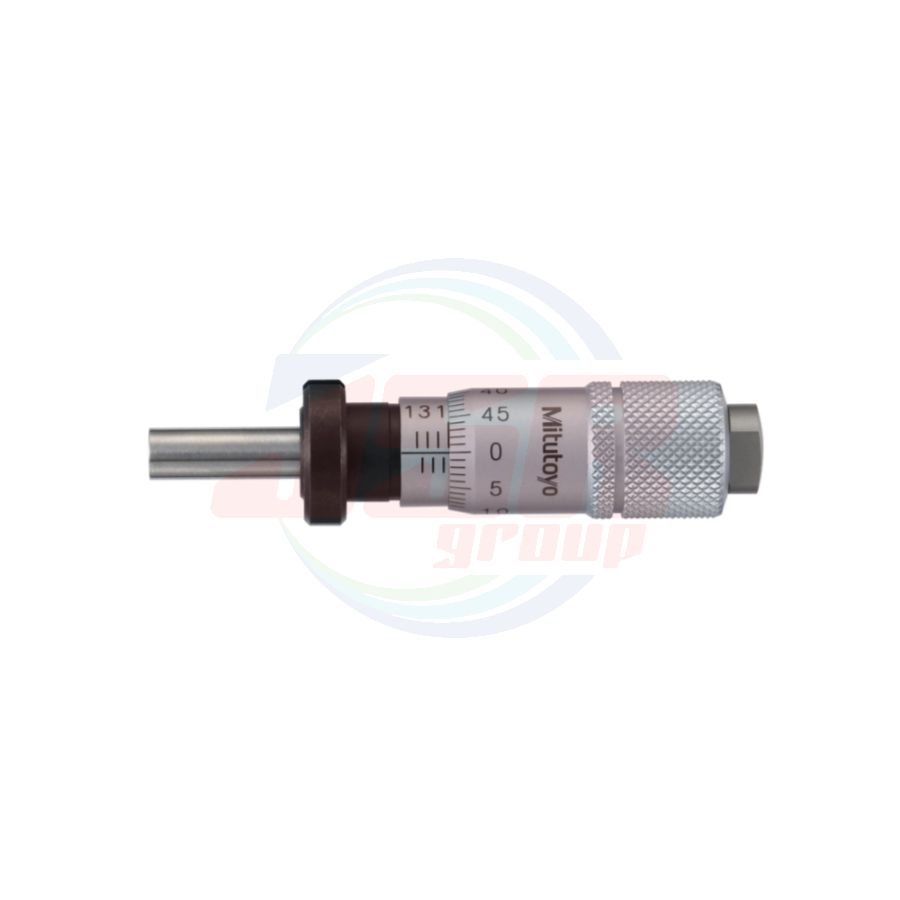

148-822-10 | Micrometer Heads SERIES 148 — Small Standard Type | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 1,021.50
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
148-822-10
QTY:
10
• Measuring range: 13 mm
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Maximum permissible error J MPE (μm) |
Stem dia. (mm) |
Stem | Spindle end | Graduation features |
| 148-104-10 | 0 - 13 | ±2 | 9.5 | Plain | Flat | Standard |
| 148-103-10 | W/clamp nut | |||||
| 148-121-10 | Plain* | |||||
| 148-120-10 | W/clamp nut* | |||||
| 148-801-10 | Plain | Spherical (SR4) |
||||
| 148-802-10 | W/clamp nut | |||||
| 148-803-10 | Plain* | |||||
| 148-804-10 | W/clamp nut* | |||||
| 148-821-10 | Plain | Flat | Reverse reading | |||
| 148-822-10 | W/clamp nut | |||||
| 148-823-10 | Plain* | |||||
| 148-824-10 | W/clamp nut* |
• Graduation: 0.01 mm
• Spindle pitch: 0.5 mm
• Measuring face: Material / Alloy tool steel, Hardness / 60 HRC or more, Lapped
• Scale finishing: Satin-chrome plated
* With spindle lock
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 148-822-10 (MHS6-13A) |
| Range | 0 - 13 mm |
| Maximum permissible error J MPE | ±2 μm |
| Stem dia. | 9.5 mm |
| Stem | W/clamp nut |
| Spindle end | Flat |
| Graduation features | Reverse reading |
