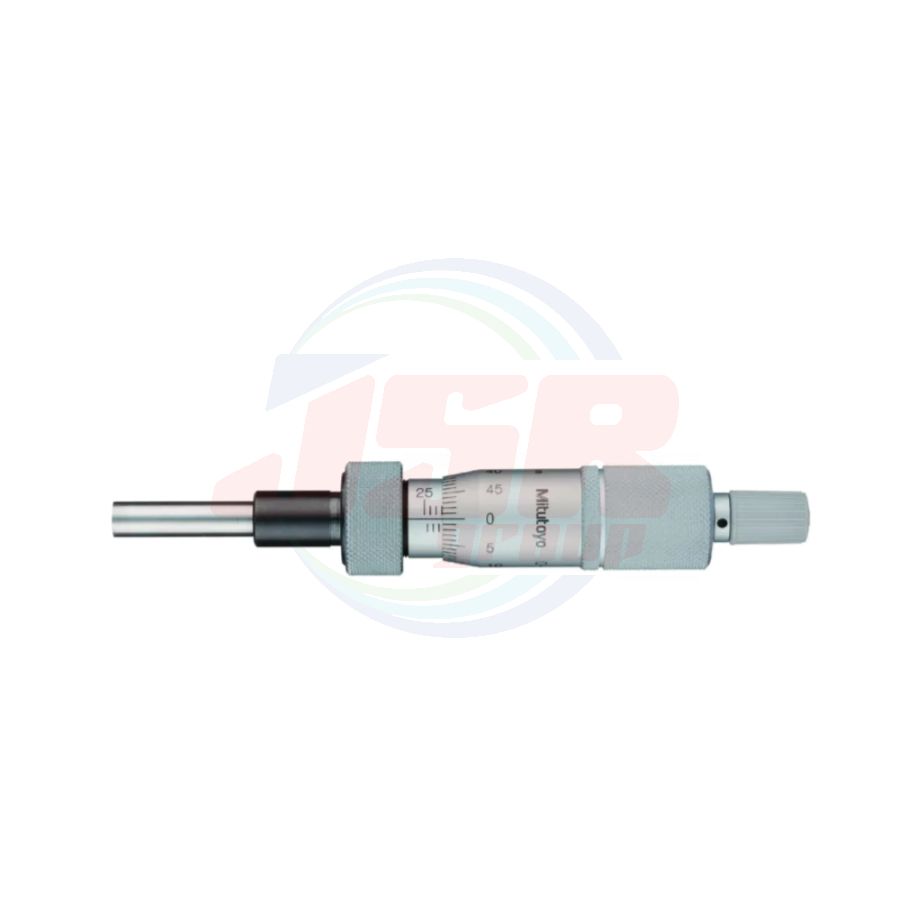

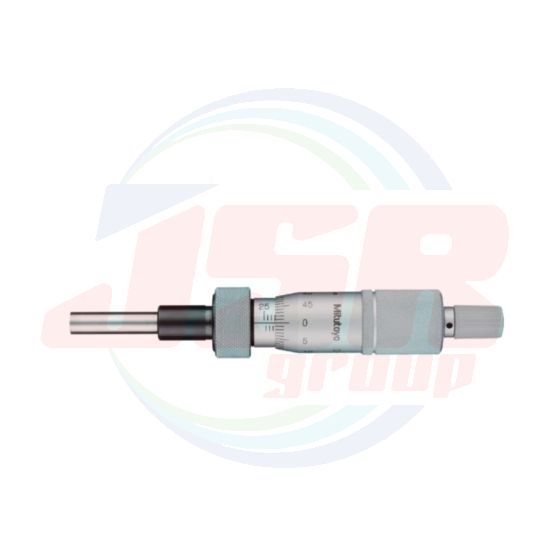

150-823 | Micrometer Heads SERIES 150 — Medium-sized Standard Type (Made-to-order models) | MITUTOYO
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
150-823
QTY:
10
• Measuring range: 25 mm
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Maximum permissible error J MPE (μm) |
Stem dia. (mm) | Stem | Spindle end | Special features |
| 150-192 | 0 - 25 | ±2 | 10 | Plain | Flat (carbide tip) |
Standard |
| 150-191 | W/clamp nut | |||||
| 150-209 | Plain*¹ | |||||
| 150-210 | W/clamp nut*¹ | |||||
| 150-801 | Plain | Spherical (SR4) (carbide tip) | ||||
| 150-802 | W/clamp nut | |||||
| 150-821 | Plain | Flat (carbide tip) |
Reverse reading | |||
| 150-822 | W/clamp nut | |||||
| 150-190 | Plain | W/vernier (0.001 mm) | ||||
| 150-189 | W/clamp nut | |||||
| 150-183*² | Plain*¹ | |||||
| 150-184 | W/clamp nut*¹ | |||||
| 150-196-10 | Plain | W/ o ratchet stop | ||||
| 150-195-10 | W/clamp nut | |||||
| 150-211-10 | Plain*¹ | |||||
| 150-212-10 | W/clamp nut*¹ | |||||
| 150-803*² | Plain*¹ | Spherical (SR4) (carbide tip) | Standard | |||
| 150-804*² | W/clamp nut*¹ | |||||
| 150-823*² | Plain*¹ | Flat (carbide tip) |
Reverse reading | |||
| 150-824*² | W/clamp nut*¹ |
• Graduation: 0.01 mm, 0.001 mm (w/vernier)
• Spindle pitch: 0.5 mm
• Measuring face: Material /Carbide tip (Only long spindle model is alloy tool steel), Hardness /90 HRA or more (Only long spindle model is 60 HRC or more), Lapped
• Scale finishing: Satin-chrome plated
*1 With spindle lock
*2 Made-to-order models
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 150-823 |
| Range | 0 - 25 mm |
| Maximum permissible error J MPE | ±2 μm |
| Stem dia. | 10 mm |
| Stem | Plain With spindle lock |
| Spindle end | Flat (carbide tip) |
| Special features | Reverse reading |
