151-260-10 | Micrometer Heads SERIES 151 — Medium-sized Standard Type with 8 mm Diameter Spindle | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 3,062.62
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
151-260-10
QTY:
10

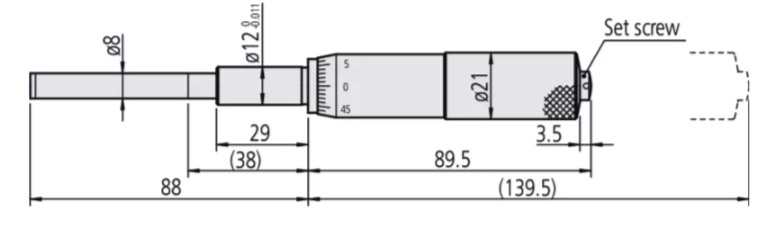

• Larger spindle (ø8 mm) for heavy-duty applications (normally ø6.35 mm).
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Maximum permissible error J MPE (μm) |
Stem dia. (mm) |
Stem | Spindle end | Special features |
| 151-224 | 0 - 25 | ±2 | 12 | Plain | Flat (carbide tip) |
— |
| 151-223 | W/clamp nut | |||||
| 151-214*² | Plain*¹ | |||||
| 151-213*² | W/clamp nut*¹ | |||||
| 151-222 | Plain | W/vernier (0.001 mm) |
||||
| 151-221 | W/clamp nut | |||||
| 151-212*² | Plain*¹ | |||||
| 151-211*² | W/clamp nut*¹ | |||||
| 151-227-10 | Plain | W/ o ratchet stop | ||||
| 151-228-10 | W/clamp nut | |||||
| 151-225-10 | Plain*¹ | |||||
| 151-226-10 | W/clamp nut*¹ | |||||
| 151-256 | 0 - 50 | ±4 | Plain | — | ||
| 151-255 | W/clamp nut | |||||
| 151-260-10 | Plain | W/ o ratchet stop | ||||
| 151-259-10 | W/clamp nut |
• Graduation: 0.01 mm, 0.001 mm (w/vernier)
• Spindle pitch: 0.5 mm
• Measuring face: Material /Carbide tip, Hardness /90 HRA or more, Lapped
• Scale finishing: Satin-chrome plated
*1 With spindle lock
*2 Made-to-order models
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 151-260-10 (MHH1-50TA) |
| Range | 0 - 50 mm |
| Maximum permissible error J MPE | ±4 μm |
| Stem dia. | 12 mm |
| Stem | Plain |
| Spindle end | Flat (carbide tip) |
| Special features | W/ o ratchet stop |
