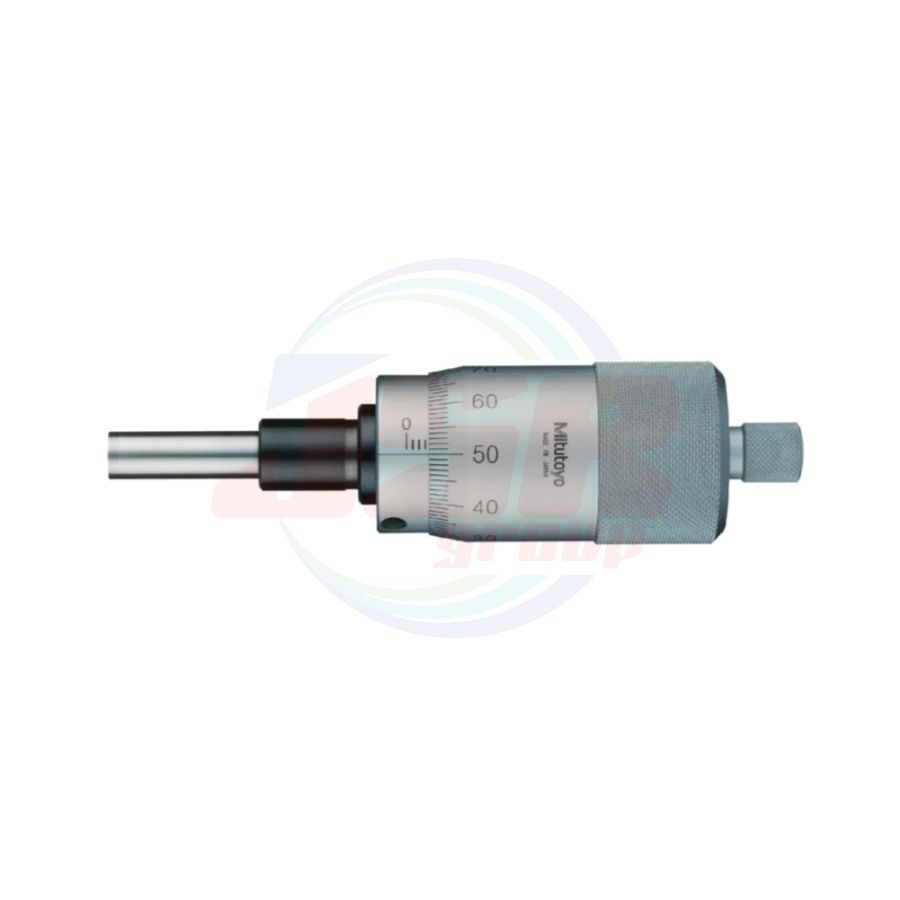

152-102 | Micrometer Heads SERIES 152 — Quick Spindle Feed of 1 mm/rev | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 1,488.79
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
152-102
QTY:
0
• This model enables double-speed spindle feeding of 1 mm/rev (compared with 0.5 mm/rev on typical products) to enable quick positioning.
• It also has a good load-bearing capacity.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Stem dia. (mm) |
Stem | Spindle end | Spindle pitch (mm) |
Maximum permissible error J MPE (μm) |
| 152-101 | 0 - 15 | 0.01 | 12 | Plain | Flat (carbide tip) | 1 | ±2 |
| 152-102 | 0 - 25 |
• Measuring face: Material / Carbide tip, Hardness /90 HRA or more, Lapped
• Scale finishing: Satin-chrome plated
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 152-102 (MHL1-25) |
| Range | 0 - 25 mm |
| Graduation | 0.01 mm |
| Stem dia. | 12 mm |
| Stem | Plain |
| Spindle end | Flat (carbide tip) |
| Spindle pitch | 1 mm |
| Maximum permissible error J MPE | ±2 μm |
