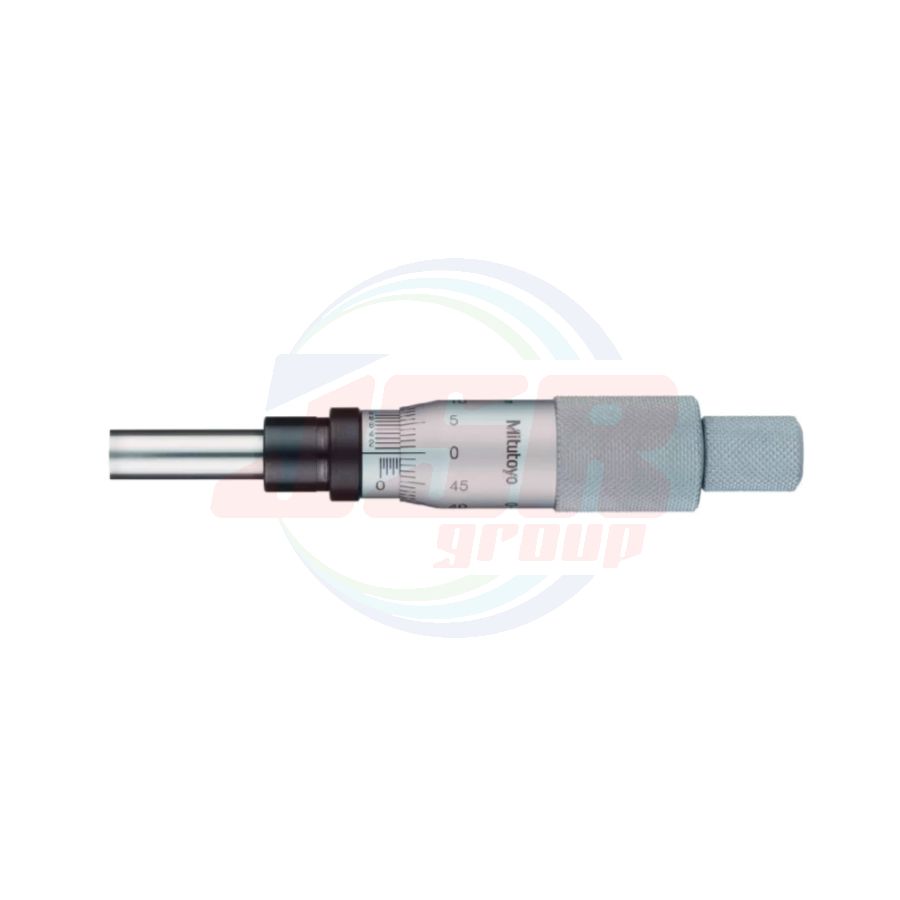

153-204 | Micrometer Heads SERIES 153 — Non-rotating Spindle Type | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 1,894.39
*ราคายังไม่รวม VAT
สินค้าหมด
SKU
153-204
QTY:
0
• Micrometer head with non-rotating spindle.
• Torsion-free feed reduces workpiece deformation and wear.
• Allows highly accurate positioning.
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Graduation (mm) |
Graduation features | Stem dia. (mm) |
Stem | Spindle end | Spindle pitch (mm) |
Maximum permissible error J MPE (μm) |
| 153-101 | 0 - 15 | 0.01 | Standard | 9.5 | Plain | Flat (carbide tip) |
0.5 | ±3 |
| 153-201*¹ | 0 - 25 | 12 | ||||||
| 153-202*¹ | 0.001 | W/vernier (0.001 mm) | ||||||
| 153-203 | 0.01 | Standard | ||||||
| 153-204 | 0.001 | W/vernier (0.001 mm) |
• Measuring face: Material / Carbide tip, Hardness / 90 HRA or more, Lapped
• Scale finishing: Satin-chrome plated
*1 With ratchet stop *2 Made-to-order model
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 153-204 (MHK-25V) |
| Range | 0 - 25 mm |
| Graduation | 0.001 mm |
| Graduation features | W/vernier (0.001 mm) |
| Stem dia. | 12 mm |
| Stem | Plain |
| Spindle end | Flat (carbide tip) |
| Spindle pitch | 0.5 mm |
| Maximum permissible error J MPE | ±3 μm |
