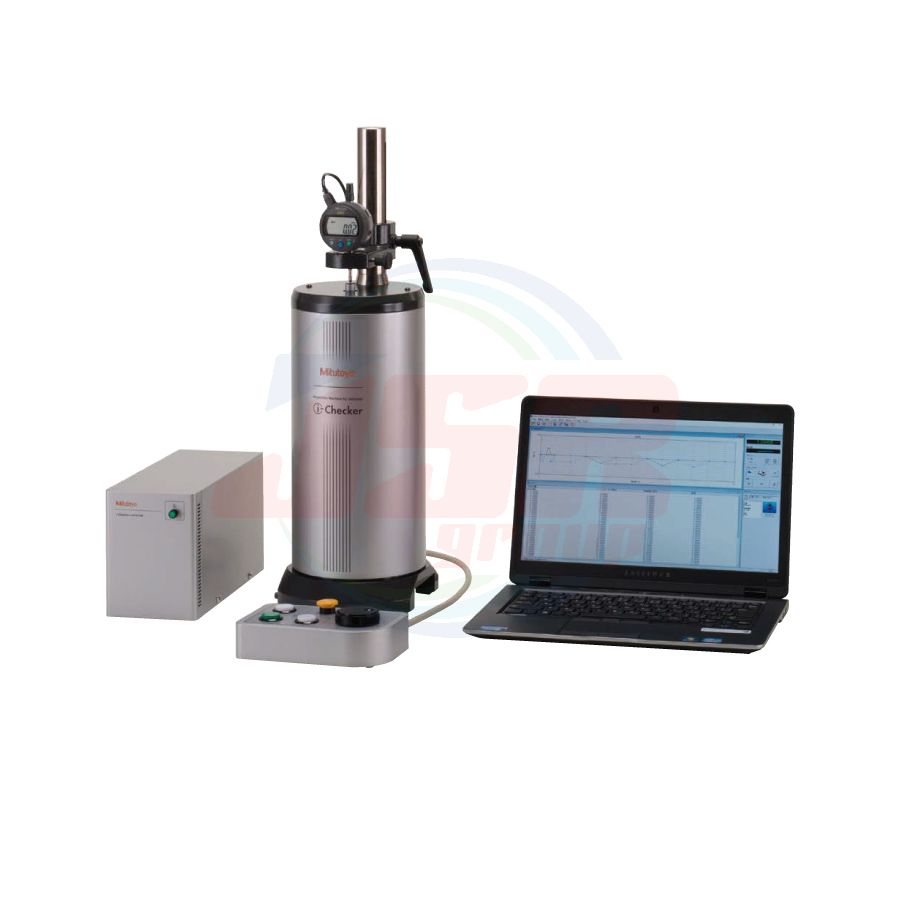

170-402 | i-Checker IC2000 SERIES 170 | MITUTOYO
THB 0.00
THB 0.00
พร้อมส่ง
SKU
170-402
>
| Order No. | 170-402 | 170-403 | |
| Measuring Range | 100 mm | ||
| Resolution | 0.01 μm | ||
| Accuracy (20 °C) |
vertical orientation | (0.1 + 0.4L/100) μm L=Arbitrary length (mm) | |
| lateral orientation | (0.15 + 0.6L/100) μm L=Arbitrary length (mm) | ||
| Feed speed | Maximum 10 mm/s | ||
| Drive method | Motor drive (semi-automatic / fully-automatic) | ||
| Measuring Unit | Separate type Linear Encoder | ||
| Measurement method | Semi-automatic measurement | ||
| Fully automatic measurement (only when using an indicator equipped with data output function)*¹ *² |
|||
| Mass | 20 kg | ||
| Operating temperature | 20 °C±0.5 °C | ||
| Remarks | with 8 mm bush | with 3/8 in bush | |
*1 Automatic measurement requires the indicator’s connection cable. Additionally some form of indicator, along with the normally connected accessory (the optional accessory for the indicator such as a Digimatic power-supply unit in an EF counter) will be required.
*2 The indicator measured via RS-232C has the capability to receive data from the main unit and output the counter value.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Measuring Range | 100 mm |
| Resolution | 0.01 μm |
| Accuracy (20 °C) - vertical orientation | (0.1 + 0.4L/100) μm L=Arbitrary length (mm) |
| Accuracy (20 °C) - lateral orientation | (0.15 + 0.6L/100) μm L=Arbitrary length (mm) |
| Feed speed | Maximum 10 mm/s |
| Drive method | Motor drive (semi-automatic / fully-automatic) |
| Measuring Unit | Separate type Linear Encoder |
| Operating temperature | 20 °C±0.5 °C |
| Remarks | with 8 mm bush |
