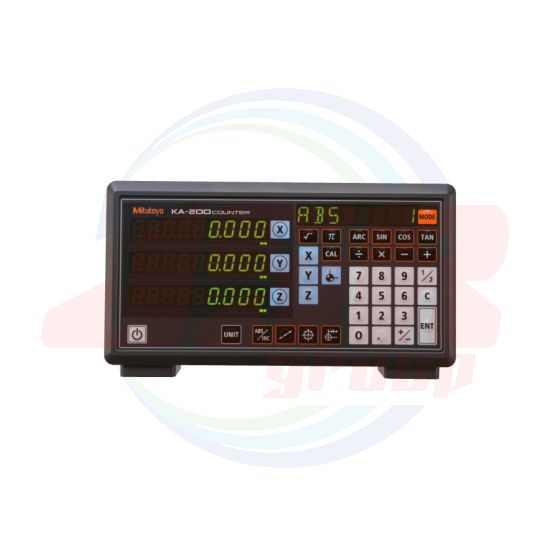

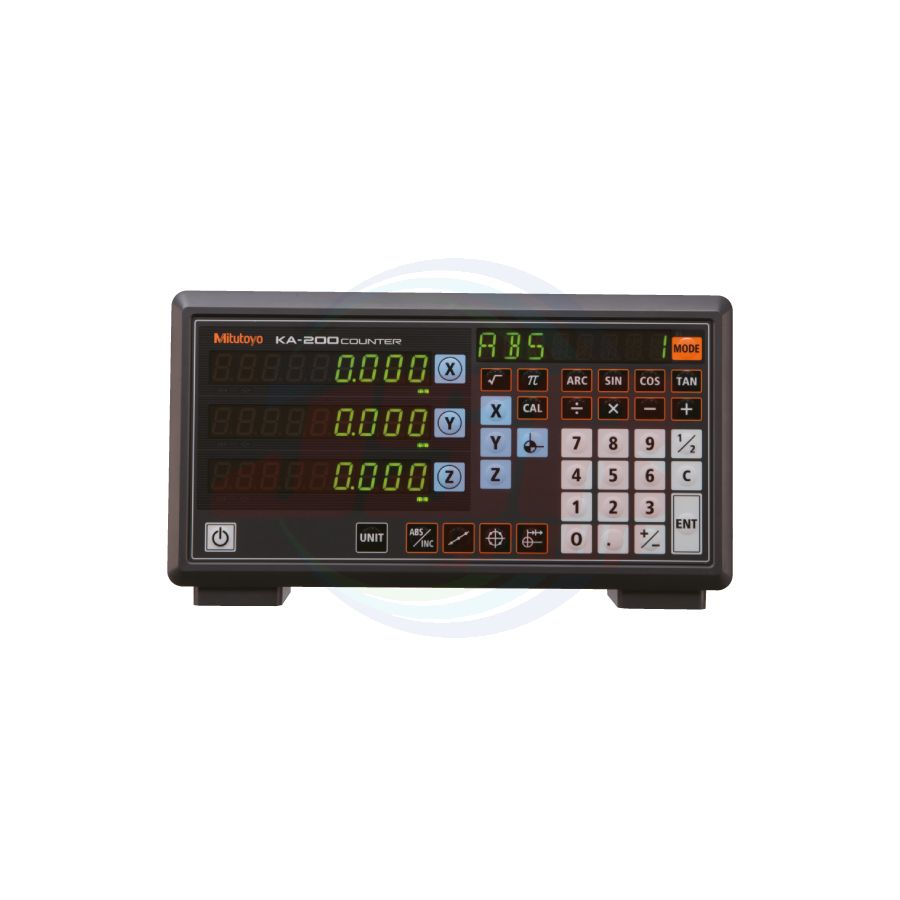

174-183E | Display Unit for Linear Scale - KA-200 COUNTER | MITUTOYO
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
174-183E
QTY:
2
FEATURES
• Absolute and incremental modes (10 presets each)
• Non-linear and linear error compensation
• Adjustable high-brightness, high-refresh rate LED displays
• Calculator function
• Outputs data into spreadsheets (optional USB card)
| Order No. | 174-183A | 174-185A |
| Model | 2-axis KA-212 Counter | 3-axis KA-213 Counter |
| Resolution | With AT100 Series: 0.05 - 0.0001 mm, .02" - .000005" With AT715: 0.01 - 0.0005 mm, .02" - .000020" |
|
| Scale input ports | 2 or 3* | |
| Display type / digit | 7-segment, 8-digit + sign + 8-character alphabet LED display | |
| Output (optional) | RS-232C / USB | |
| Macro functions | Rectangular drilling and round milling newly added | |
| Main features | Feed speed display; taper machining function; tool data; multi-point compensation; scale check function; calculation function |
|
| Dimensions | Size (W×D×H) 30×168×70mm | |
*2nd and 3rd axis display can be disabled
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 174-183E (KA-212) |
| Model | 2-axis KA-212 Counter |
| Resolution | With AT100 Series: 0.05 - 0.0001 mm, .02" - .000005" With AT715: 0.01 - 0.0005 mm, .02" - .000020" |
| Scale input ports | 2 or 3* *2nd and 3rd axis display can be disabled |
| Display type / digit | 7-segment, 8-digit + sign + 8-character alphabet LED display |
| Output (optional) | RS-232C / USB |
| Macro functions | Rectangular drilling and round milling newly added |
| Main features | Feed speed display; taper machining function; tool data; multi-point compensation; scale check function; calculation function |
| Dimensions | Size (W×D×H) 30×168×70mm |
