176-818-11 | TM SERIES 176 — Toolmakers' Microscopes | MITUTOYO

THB 0.00 THB 0.00
พร้อมส่ง
SKU
176-818-11

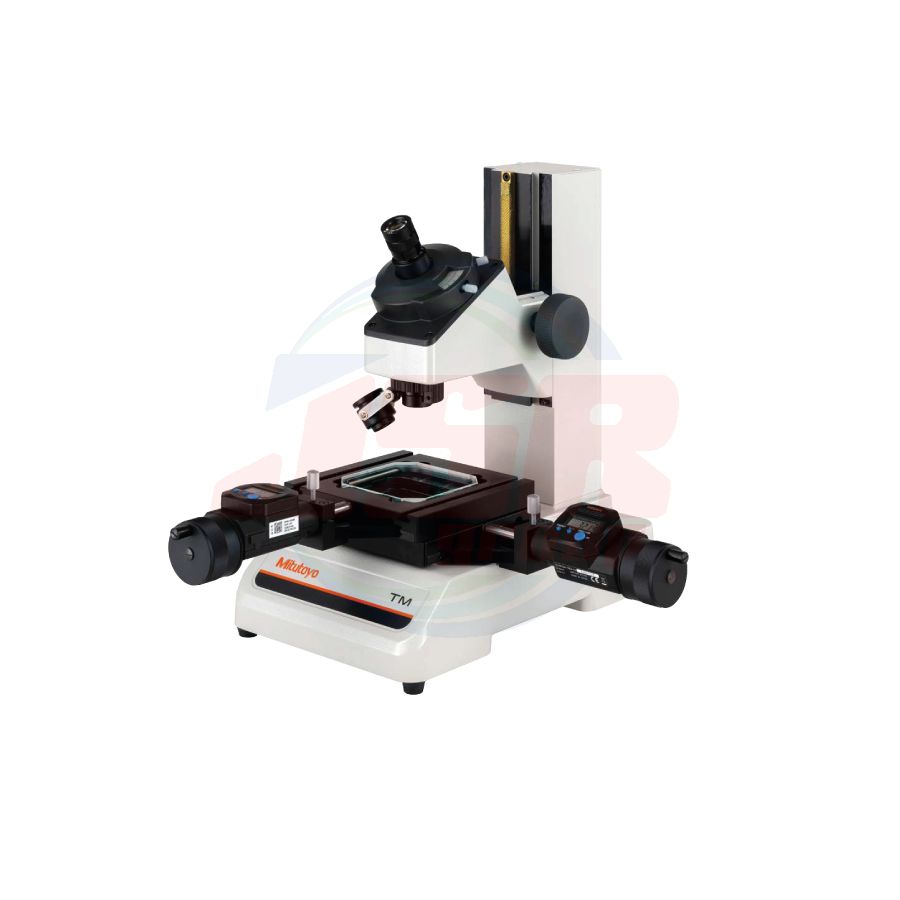

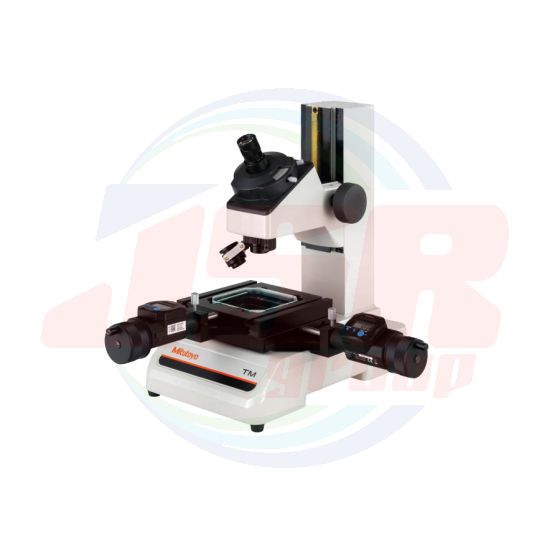

Compact universal toolmakers' microscope that can be installed on any site.

• The newly designed LED light ensures clear observation. It also provides excellent color reproduction.

• Attaching an optional circular LED light expands the range of observation.

• TM-505B achieves a maximum measuring height of 115 mm despite the compact size.

• Digimatic micrometer head (164-163, 164-164, optional) makes measurement easy and precise.

176-818-11 | TM SERIES 176 — Toolmakers' Microscopes | MITUTOYO
176-818-11 | TM SERIES 176 — Toolmakers' Microscopes | MITUTOYO

SPECIFICATIONS

Model TM-505B TM-1005B
Code No. 176-818-11 176-819-11
Optical tube Monocular type (Vertical tilt angle: 30°)
Observation image Erect
Eyepiece protractor Resolution (graduation): 1°, Rotation angle: 360°,
Resolution (angle): 6', Adjustable zero point
Eyepiece Standard accessory: 15X (field number: 13), Options: 10X, 20X
Objective Standard accessory: 2X, Optional: 5X, 10X
Microscope
head
Maximum height of
workpiece
115 mm 107 mm
Focusing method Manual (Coarse feed)
Illumination
unit
Transmitted
illumination
Stepless brightness adjustment, White LED light source with green filter
Reflected illumination Oblique single-source type, Stepless brightness adjustment, White LED light source
Cross-travel
stage
Measuring range 50×50 mm 100×50 mm
(An optional 50 mm gauge block is required to
cover full range. A CERA block is recommended.)
Table size 152×152 mm 240×152 mm
Usable area of the
stage glass
96×96 mm 154×96 mm
Maximu 5 kg
Linear measurement method Micrometer head*
Resolution Depends on the micrometer head specifications*
164-163 (mm): 0.001 mm or 164-164 (inch / mm): 0.00005 in /0.001 mm
Micrometer head travel range 164-163 (mm): 50 mm or 164-164 (inch /mm): 2 in / 50 mm
Power source AC100 to 240 V 50 /60 Hz Maximum power consumption: 4.2 W
Mass 14 kg 15 kg

* Micrometer heads are optional for TM-505B and TM-1005B.

ข้อมูลเพิ่มเติม
แบรนด์สินค้า MITUTOYO
Order No. 176-818-11
Model TM-505B
Optical tube Monocular type (Vertical tilt angle: 30°)
Observation image Erect
Eyepiece protractor Resolution (graduation): 1°, Rotation angle: 360°, Resolution (angle): 6', Adjustable zero point
Eyepiece Standard accessory: 15X (field number: 13), Options: 10X, 20X
Objective Standard accessory: 2X, Optional: 5X, 10X
Microscope head : Maximum height of workpiece 115 mm
Microscope head : Focusing method Manual (Coarse feed)
Illumination unit : Transmitted illumination Stepless brightness adjustment, White LED light source with green filter
Illumination unit : Reflected illumination Oblique single-source type, Stepless brightness adjustment, White LED light source
Cross-travel stage : Measuring range 50×50 mm
Cross-travel stage : Table size 152×152 mm
Cross-travel stage : Usable area of the stage glass 96×96 mm
Cross-travel stage : Maximum stage glass loading 5 kg
Linear measurement method Micrometer head
Resolution Depends on the micrometer head specifications* 164-163 (mm): 0.001 mm or 164-164 (inch / mm): 0.00005 in /0.001 mm
Power source AC100 to 240 V 50 /60 Hz Maximum power consumption: 4.2 W
