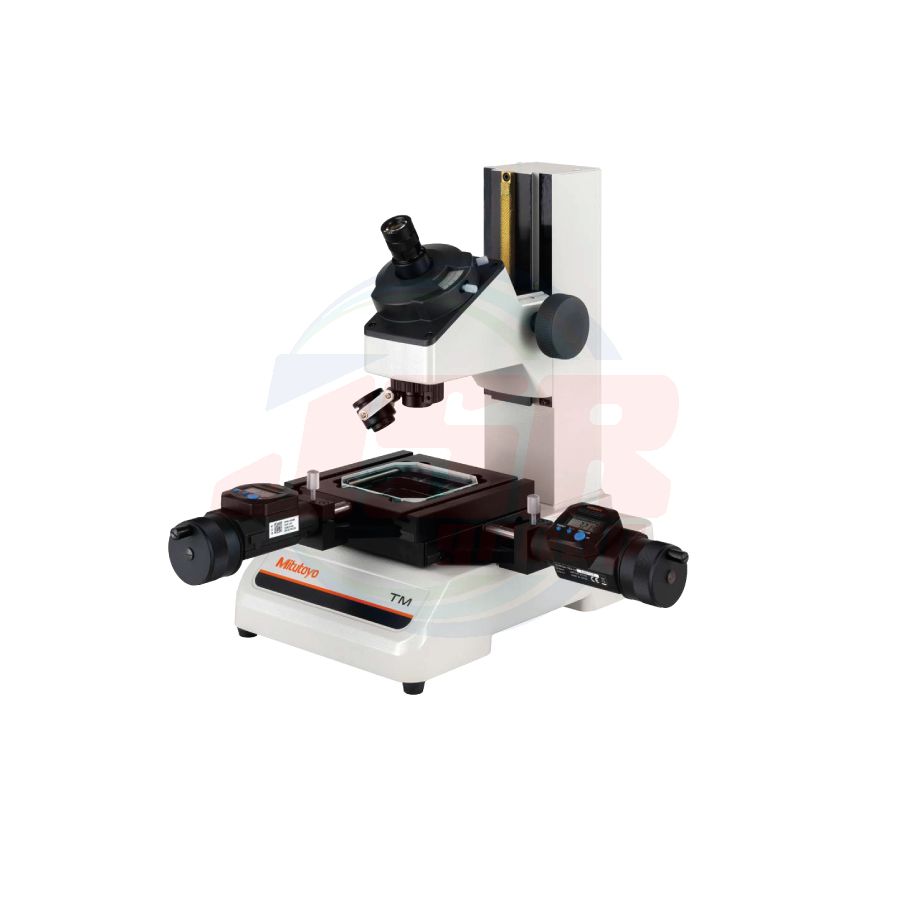

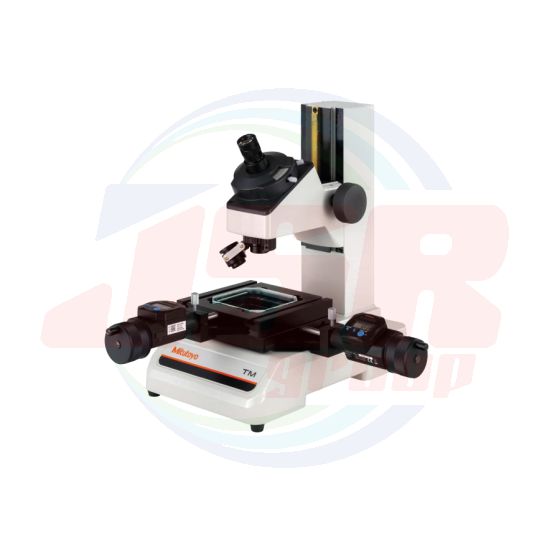

Compact universal toolmakers' microscope that can be installed on any site.
• The newly designed LED light ensures clear observation. It also provides excellent color reproduction.
• Attaching an optional circular LED light expands the range of observation.
• TM-505B achieves a maximum measuring height of 115 mm despite the compact size.
• Digimatic micrometer head (164-163, 164-164, optional) makes measurement easy and precise.
SPECIFICATIONS
Model | TM-505B | TM-1005B | |
Code No. | 176-818-11 | 176-819-11 | |
Optical tube | Monocular type (Vertical tilt angle: 30°) | ||
Observation image | Erect | ||
Eyepiece protractor | Resolution (graduation): 1°, Rotation angle: 360°, Resolution (angle): 6', Adjustable zero point |
||
Eyepiece | Standard accessory: 15X (field number: 13), Options: 10X, 20X | ||
Objective | Standard accessory: 2X, Optional: 5X, 10X | ||
Microscope head |
Maximum height of workpiece |
115 mm | 107 mm |
Focusing method | Manual (Coarse feed) | ||
Illumination unit |
Transmitted illumination |
Stepless brightness adjustment, White LED light source with green filter | |
Reflected illumination | Oblique single-source type, Stepless brightness adjustment, White LED light source | ||
Cross-travel stage |
Measuring range | 50×50 mm | 100×50 mm (An optional 50 mm gauge block is required to cover full range. A CERA block is recommended.) |
Table size | 152×152 mm | 240×152 mm | |
Usable area of the stage glass |
96×96 mm | 154×96 mm | |
Maximu | 5 kg | ||
Linear measurement method | Micrometer head* | ||
Resolution | Depends on the micrometer head specifications* 164-163 (mm): 0.001 mm or 164-164 (inch / mm): 0.00005 in /0.001 mm |
||
Micrometer head travel range | 164-163 (mm): 50 mm or 164-164 (inch /mm): 2 in / 50 mm | ||
Power source | AC100 to 240 V 50 /60 Hz Maximum power consumption: 4.2 W | ||
Mass | 14 kg | 15 kg |
* Micrometer heads are optional for TM-505B and TM-1005B.
แบรนด์สินค้า | MITUTOYO |
---|---|
Order No. | 176-819-11 |
Model | TM-1005B |
Optical tube | Monocular type (Vertical tilt angle: 30°) |
Observation image | Erect |
Eyepiece protractor | Resolution (graduation): 1°, Rotation angle: 360°, Resolution (angle): 6', Adjustable zero point |
Eyepiece | Standard accessory: 15X (field number: 13), Options: 10X, 20X |
Objective | Standard accessory: 2X, Optional: 5X, 10X |
Microscope head : Maximum height of workpiece | 107 mm |
Microscope head : Focusing method | Manual (Coarse feed) |
Illumination unit : Transmitted illumination | Stepless brightness adjustment, White LED light source with green filter |
Illumination unit : Reflected illumination | Oblique single-source type, Stepless brightness adjustment, White LED light source |
Cross-travel stage : Measuring range | 100×50 mm (An optional 50 mm gauge block is required to cover full range. A CERA block is recommended.) |
Cross-travel stage : Table size | 240×152 mm |
Cross-travel stage : Usable area of the stage glass | 154×96 mm |
Cross-travel stage : Maximum stage glass loading | 5 kg |
Linear measurement method | Micrometer head |
Resolution | Depends on the micrometer head specifications* 164-163 (mm): 0.001 mm or 164-164 (inch / mm): 0.00005 in /0.001 mm |
Power source | AC100 to 240 V 50 /60 Hz Maximum power consumption: 4.2 W |
