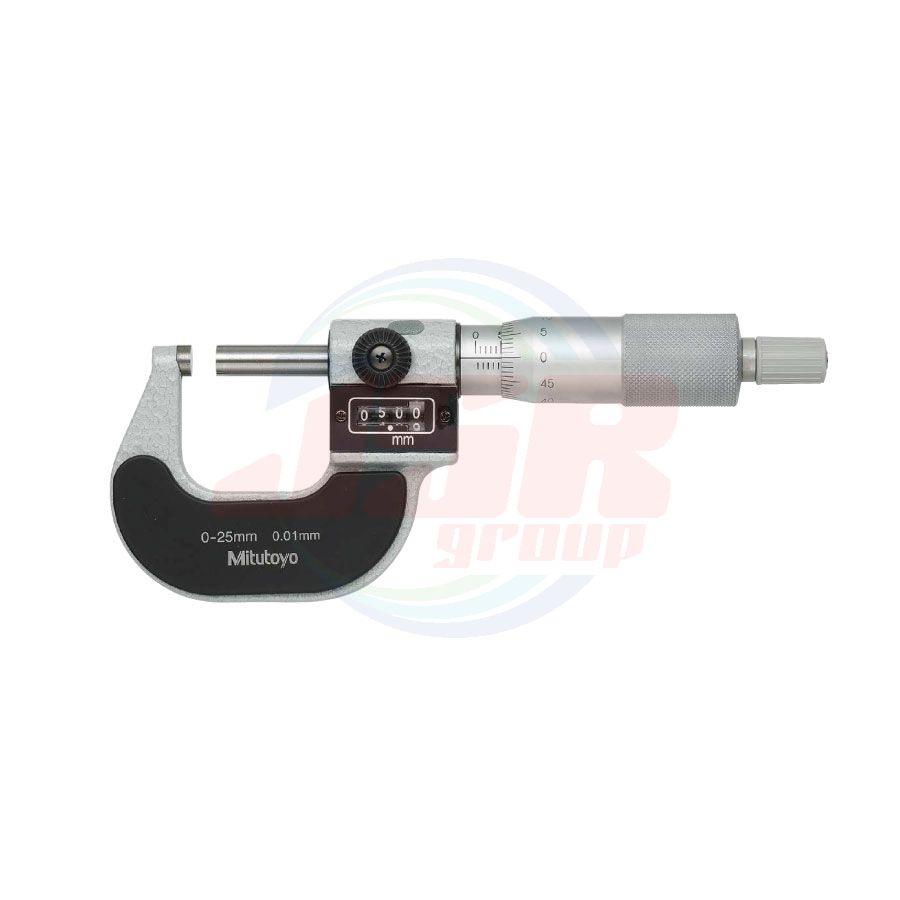

SERIES 193 | Digit Outside Micrometers | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 3,745.00
พร้อมส่ง
SKU
1MIT-DIGIM-193
• Mechanical digit counter with 0.01 mm or 0.001 in resolution for quick and error-free reading.
• Counter resolution 0.01 mm• Measuring faces: Carbide tipped
• Equipped with Ratchet Stop for constant measuring force.
SPECIFICATIONS
Metric ___ With ratchet stop
| Order No. | Range (mm) | Maximum permissible error J MPE (µm) | Flatness (μm) | Parallelism (μm) | Graduation (mm) |
| 193-111 | 0 - 25 | ±2 | 0.6 | 2 | 0.001 (reading is obtained with vernier) |
| 193-112 | 25 - 50 | ||||
| 193-113 | 50 - 75 | ||||
| 193-114 | 75 - 100 | ±3 | 3 | ||
| 193-101 | 0 - 25 | ±2 | 2 | 0.01 | |
| 193-102 | 25 - 50 | ||||
| 193-103 | 50 - 75 | ||||
| 193-104 | 75 - 100 | ±3 | 3 |
Metric ___ Micrometer set
| Order No. | Range (mm) | Models included | Flatness (μm) | Parallelism (μm) |
| 193-901 | 0 - 75 (3 pcs. / set) |
• 193-101, 193-102, 193-103 • 2 micrometer standards |
0.6 | 2 |
| 193-902 | 0 - 100 (4 pcs. / set) |
• 193-101, 193-102, 193-103, 193-104 • 3 micrometer standards |
3 |
• Standard accessories: Setting standard, 1 pc. (except for measuring range 0 to 25 mm (0 to 1 in) models), Spanner (301336), 1 pc.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digit |

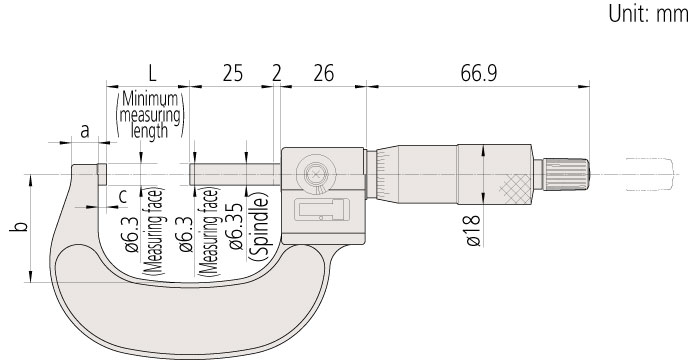

| Range (mm) | L | a | b | c |
| 0 - 25 | 0 | 5 | 26 | 2.5 |
| 25 - 50 | 25 | 8 | 32.5 | 2 |
| 50 - 75 | 50 | 9 | 45 | 2 |
| 75 - 100 | 75 | 9 | 57 | 2 |
