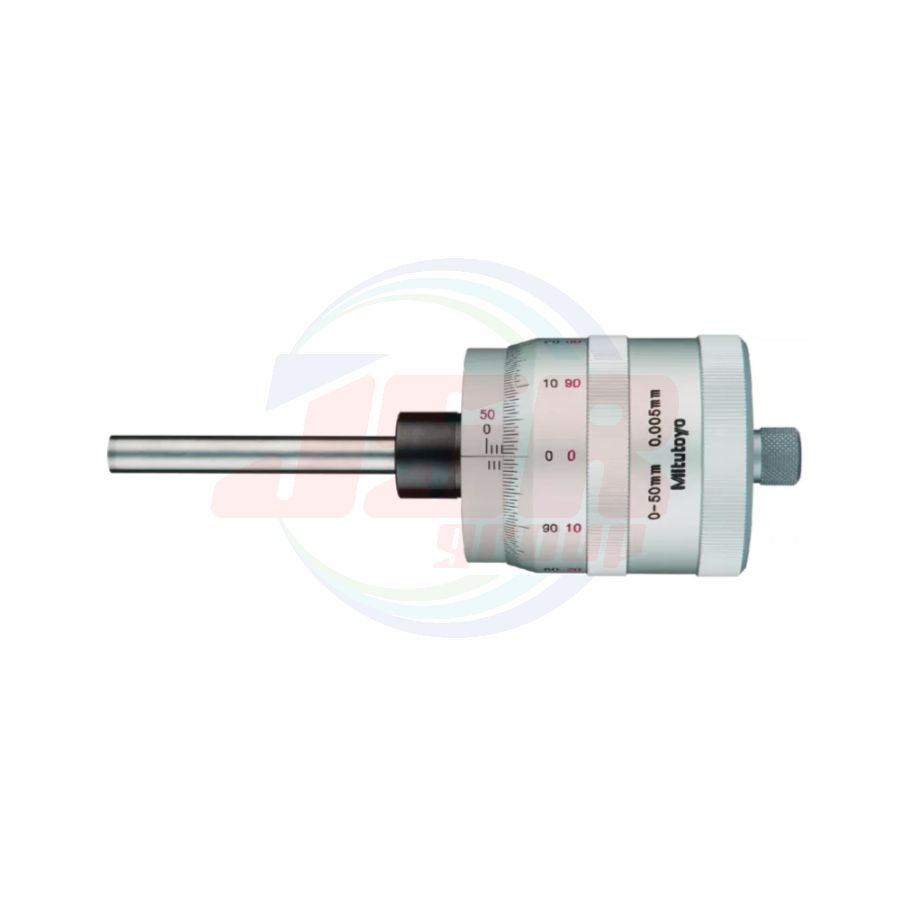

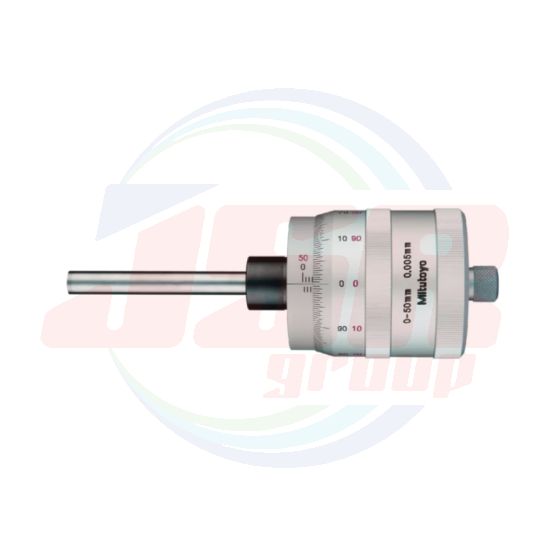

197-101 | Micrometer Heads SERIES 197 — Long Stroke Non-rotating Spindle | MITUTOYO
ราคาพิเศษ
THB 0.00
THB 0.00
ราคาปรกติ
THB 9,747.70
สินค้าหมด
SKU
197-101
• Large-thimble micrometer head with non-rotating spindle. Dual-spindle mechanism for quick feeding and bidirectional graduation for easy reading.
• Floating thimble allows easy zero setting at any spindle position.
SPECIFICATIONS
Metric
| Order No. | Range | Graduation | Graduation features |
Stem dia. | Stem | Spindle end | Spindle pitch | Maximum permissible error J MPE |
| 197-101 | 0 - 50 mm | 0.005 mm | Bidirectional | 18 mm | Plain | Flat (carbide tip) | 1 mm | ±5 μm |
• Measuring face: Material / Carbide tip, Hardness /90 HRA or more, Lapped
• Scale finishing: White anodized aluminum
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 197-101 (MHQ-50) |
| range of Micrometer head | 0 - 50 mm |
| Graduation | 0.005 mm |
| Graduation features | Bidirectional |
| Stem dia. | 18 mm |
| Stem | Plain |
| Spindle end | Flat (carbide tip) |
| Spindle pitch | 1 mm |
| Maximum permissible error J MPE | ±5 μm |
