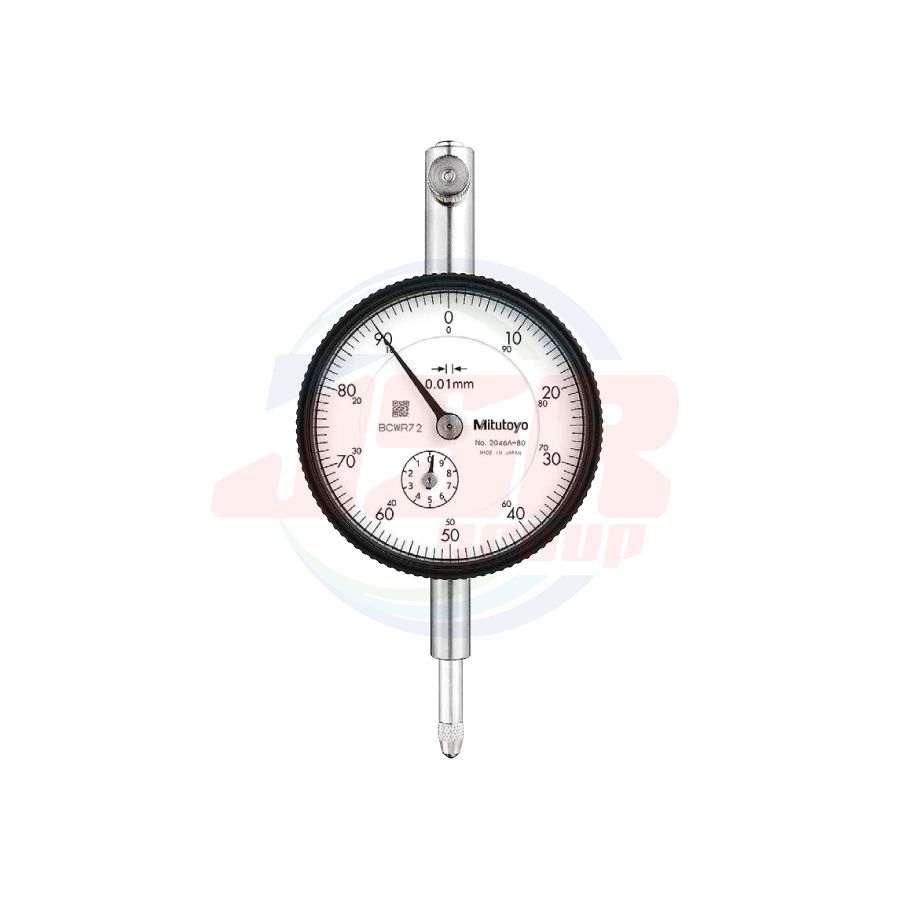

2046A-80 | Dial Indicators SERIES 2 — Special Dial Indicators | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 1,931.78
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
2046A-80
QTY:
3
• A mechanism holds the pointer and the spindle at the position of maximum depression and hence displays the maximum value.
Note: Clearance of peak hold: Push the nut in the direction of the arrow indicated in the dimensional drawing for 2046A-80.
SPECIFICATIONS
Metric
| Order No. | Graduation (mm) |
Range (range/rev) (mm) |
Maximum permissible error (MPE) (μm) | Dial reading |
Measuring force (N | ||||||
| w/ lug | Flat-back | Indication error | Hysteresis | Repeatability | |||||||
| 1/10 Rev | 1/2 Rev | 1 Rev | Measuring range | ||||||||
| 2046A-80 | 2046AB-80 | 0.01 | 10 (1) | 5 | 9 | 10 | 15 | - | - | ±0-100 | 5.0 or less |
Note: Completed products inspection is performed in the vertical orientation (contact point downward) and the stated accuracy is guaranteed.
 Continuous scale |
||||||
 |
||||||
|
Graduation: 0.01 mm, |
2046A-80 |
|||||
 |
Peak retaining | |||||
FEATURES
Metric
| Order No. | |
 |
|
 |
|
| w/lug | Flat-back | ||||
| 2046A-80 | 2046AB-80 | √ | √ | ||
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 2046A-80 (DG0.01-10MM) |
| Graduation | 0.01 mm |
| Range (range/rev) | 10 (1) mm |
| MPE measuring range | 15 μm |
| MPE Hysteresis | - |
| MPE Repeatability | - |
| Dial reading | ±0-100 |
| Measuring force (N) | 5.0 or less |
| Order No. | A | B | C | D | E | F | G | H | I | Mass (g) | |
| w/lug | Flat-back | ||||||||||
| 2046A-80 | 55.8 | 65.2 | 57 | 18.1 | 20 | 16.9 | 19.8 | 52 | 7.6 | 158 | 149 |
