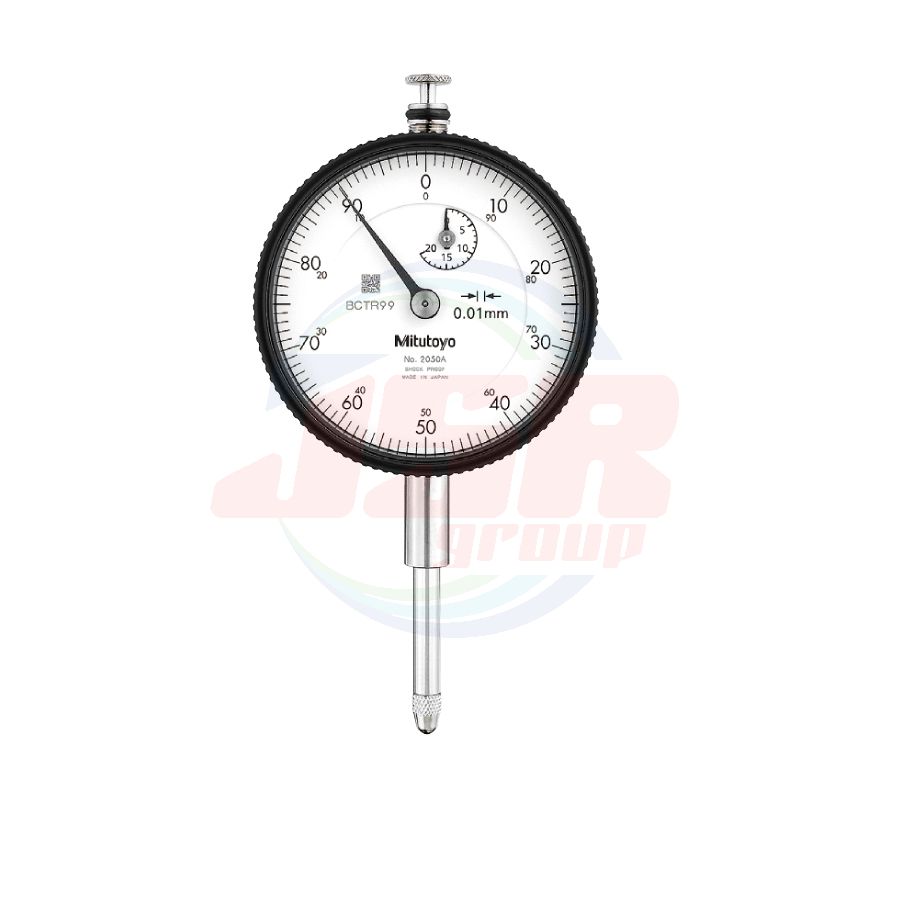

2050A | Dial Indicators SERIES 2 — Long Stroke Type | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 1,353.27
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
2050A
QTY:
22
• Long stroke dial indicators with measuring range of 20 mm or more have a ø57 mm bezel.
• The indicator is highly durable thanks to its oil- and water-tight design, quenched hardened stainless-steel, carbide contact point, and a grand gear made of wear- and deformation-resistant material.
• Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.
• The lifting lever (optional) cannot be used with models that are water-proof or which have a measurement range of 30 mm.
SPECIFICATIONS
Metric
| Order No. | Graduation (mm) |
Range (range/rev) (mm) |
Maximum permissible error (MPE) (μm) | Dial reading |
Measuring force (N | ||||||
| w/ lug | Flat-back | Indication error | Hysteresis | Repeatability | |||||||
| 1/10 Rev | 1/2 Rev | 1 Rev | Measuring range | ||||||||
| 2050A | 2050AB | 0.01 | 20 (1) | 8 | 10 | 15 | 20 | 5 | 4 | ±0-100 | 2.0 or less |
| 2050A-60 | 2050AB-60 | 0.01 | 20 (1) | 8 | 10 | 15 | 20 | 5 | 4 | ±0-100 | 2.5 or less |
| 2050A-19 | 2050AB-19 | 0.01 | 20 (1) | 8 | 10 | 15 | 20 | 5 | 4 | ±0-100 | 2.0 or less |
| 2320A-10 | 2320AB-10 | 0.01 | 20 (1) | 8 | 10 | 15 | 20 | 5 | 4 | ±0-100 | 2.0 or less |
| 2052A | 2052AB | 0.01 | 30 (1) | 10 | 12 | 15 | 25 | 7 | 5 | ±0-100 | 2.5 or less |
| 2052A-19 | 2052AB-19 | 0.01 | 30 (1) | 10 | 12 | 15 | 25 | 7 | 5 | ±0-100 | 2.5 or less |
| 2330A-10 | 2330AB-10 | 0.01 | 30 (1) | 10 | 12 | 15 | 25 | 7 | 5 | ±0-100 | 2.5 or less |
| 2952A | 2952AB | 0.01 | 30 (1) | 10 | 12 | 15 | 25 | 7 | 5 | 100-0 | 2.5 or less |
* 2050A-60 and 2050AB-60 are water-proof types that use a rubber bellows to cover the spindle.
Note that the outer diameter of the bellows (ø9.5) is larger than that of the stem (ø8).
Note: Completed products inspection is performed in the vertical orientation (contact point downward) and the stated accuracy is guaranteed.
 Continuous scale |
Continuous scale |
|||||
 |
 |
|||||
| Graduation: 0.01 mm, |
2050A |
Graduation: 0.01 mm, | 2052A | |||
| Measuring range: 20mm |  |
With damper at lowest rest point |
Measuring range: 30mm | |
With damper at lowest rest point |
|
| 2050A-19 | 2052A-19 | |||||
 |
Shockproof | |
Shockproof | |||
 |
Jeweled bearing | |
Jeweled bearing | |||
|
With damper at lowest rest point |
|
With damper at lowest rest point |
|||
| 2050A-60 | ||||||
 |
Waterproof | |||||
| Continuous scale |
Continuous scale |
|||||
 |
 |
|||||
| Graduation: 0.01 mm, |
2330A-10 |
Graduation: 0.01 mm, |
2320A-10 |
|||
| Measuring range: 30mm |  |
With coaxial revolution counter |
Measuring range: 20mm | |
With coaxial revolution counter |
|
|
With damper at lowest rest point |
|
With damper at lowest rest point |
|||
|
Jeweled bearing | |
Jeweled bearing | |||
 Reverse reading |
||||||
 |
||||||
| Graduation: 0.01 mm, |
2952A |
|||||
| Measuring range: 30mm | |
With damper at lowest rest point |
||||
FEATURES
Metric
| Order No. | |
 |
|
|
|
|
|
|
|
| w/lug | Flat-back | ||||||||
| 2050A | 2050AB | √ | √ | ||||||
| 2050A-60 | 2050AB-60 | √ | √ | ||||||
| 2050A-19 | 2050AB-19 | √ | √ | √ | √ | ||||
| 2320A-10 | 2320AB-10 | √ | √ | √ | √ | ||||
| 2052A | 2052AB | √ | √ | ||||||
| 2052A-19 | 2052AB-19 | √ | √ | √ | √ | ||||
| 2330A-10 | 2330AB-10 | √ | √ | √ | √ | ||||
| 2952A | 2952AB | √ | √ | ||||||
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 2050A (DG0.01-20MM) |
| Graduation | 0.01 mm |
| Range (range/rev) | 20 (1) mm |
| MPE measuring range | 20 μm |
| MPE Hysteresis | 5 μm |
| MPE Repeatability | 4 μm |
| Dial reading | ±0-100 |
| Measuring force (N) | 2.0 or less |

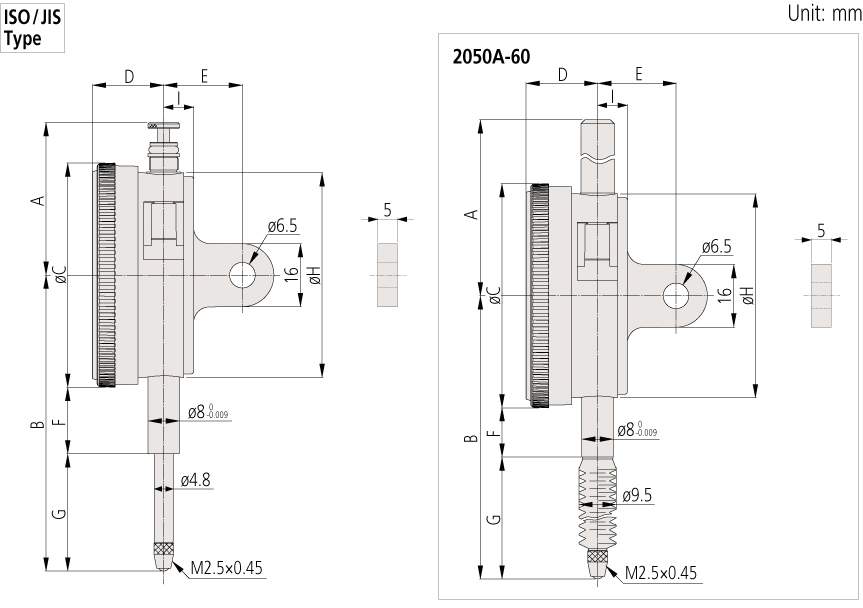

| Order No. | A | B | C | D | E | F | G | H | I | Mass (g) | |
| w/lug | Flat-back | ||||||||||
| 2050A | 38.5 | 75.2 | 57 | 18.1 | 20 | 16.9 | 29.8 | 52 | 7.6 | 149 | 140 |
| 2050A-60 | 58.2 | 87.2 | 57 | 18.1 | 20 | 12.3 | 46.4 | 52 | 7.6 | 155 | 146 |
| 2050A-19 | 38.5 | 75.2 | 57 | 18.1 | 20 | 16.9 | 29.8 | 52 | 7.6 | 149 | 140 |
| 2320A-10 | 38.5 | 75.2 | 57 | 18.1 | 20 | 16.9 | 29.8 | 52 | 7.6 | 150 | 141 |
| 2052A | 38.5 | 88.7 | 57 | 18.1 | 20 | 16.9 | 43.3 | 52 | 7.6 | 152 | 143 |
| 2052A-19 | 38.5 | 88.7 | 57 | 18.1 | 20 | 16.9 | 43.3 | 52 | 7.6 | 152 | 143 |
| 2330A-10 | 38.5 | 88.7 | 57 | 18.1 | 20 | 16.9 | 43.3 | 52 | 7.6 | 153 | 144 |
| 2952A | 38.5 | 88.7 | 57 | 18.1 | 20 | 16.9 | 43.3 | 52 | 7.6 | 152 | 143 |
