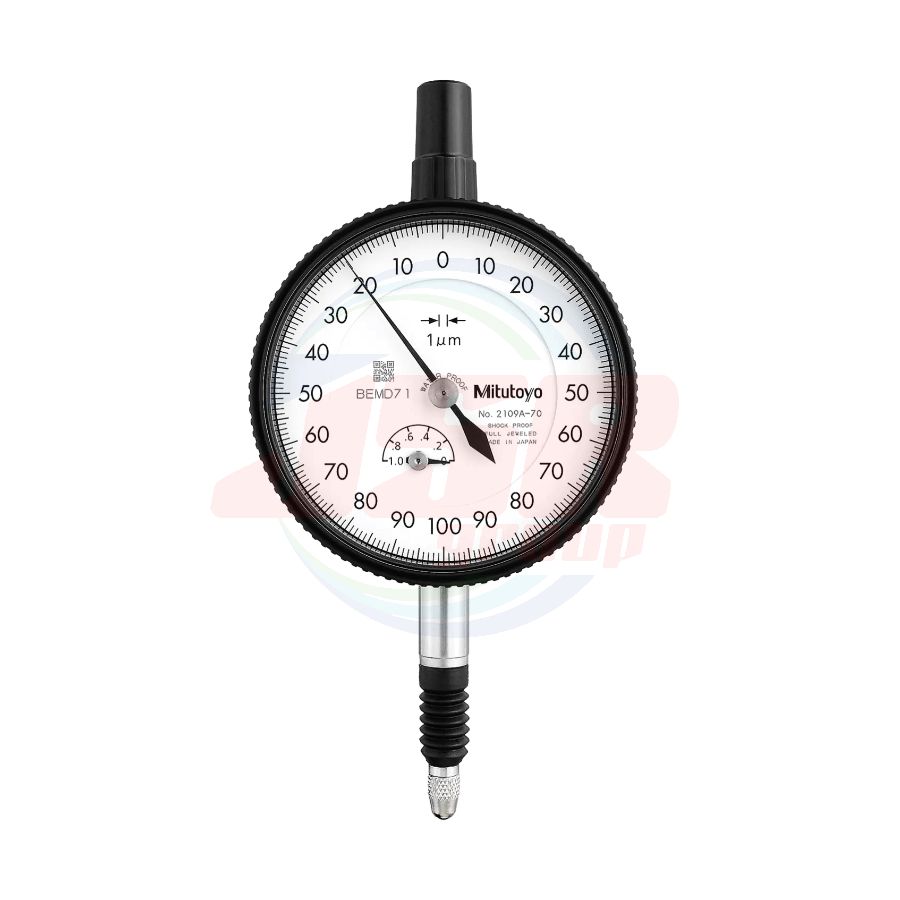

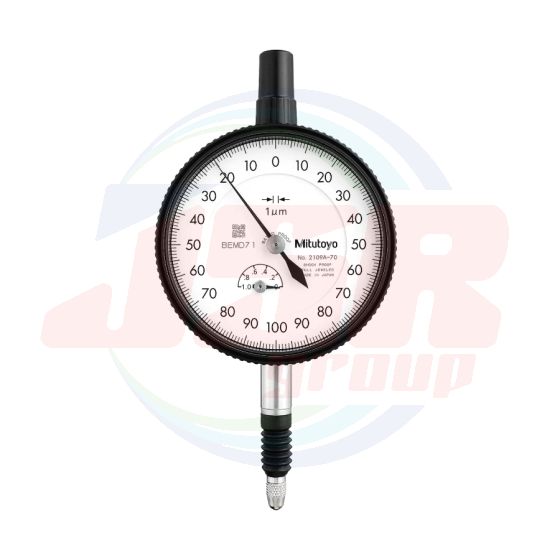

2109A-70 | Dial Indicators SERIES 2 — Water-proof Type, 0.01 mm & 0.001 mm Graduation | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 2,263.55
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
2109A-70
QTY:
7
• Standard 0.01 mm and 0.001 mm graduation dial indicators have a highly water-resistant bezel with an outside diameter of 57 mm.
• O-rings and rubber bellows are used to prevent water and oil penetration.
• Excellent in accuracy and durability.
• The indicator is highly durable thanks to its oil- and water-tight design, quenched hardened stainless-steel, carbide contact point, and a grand gear made of wear- and deformation-resistant material.
• Application of an anti-reflective and hard surface coating improves scale visibility along with scratch and chemical resistance.
SPECIFICATIONS
Metric
| Order No. | Graduation (mm) |
Range (range/rev) (mm) |
Maximum permissible error (MPE) (μm) | Dial reading |
Measuring force (N | ||||||
| w/ lug | Flat-back | Indication error | Hysteresis | Repeatability | |||||||
| 1/10 Rev | 1/2 Rev | 1 Rev | Measuring range | ||||||||
| 2046A-60 | 2046AB-60 | 0.01 | 10(1) | 5 | 9 | 10 | 13 | 3 | 3 | ±0-100 | 2.5 or less |
| 2044A-60 | 2044AB-60 | 0.01 | 5(1) | 5 | 9 | 10 | 12 | 3 | 3 | ±0-100 | 2.5 or less |
| 2109A-70 | 2109AB-70 | 0.001 | 1(0.2) | 2 | 3 | 4 | 5 | 2 | 0.5 | 0-100-0 | 2.0 or less |
| 2110A-70 | 2110AB-70 | 0.001 | 1(0.1) | 2 | 3 | 4 | 5 | 2 | 0.5 | ±0-100 | 2.0 or less |
Note: Completed products inspection is performed in the vertical orientation (contact point downward) and the stated accuracy is guaranteed.
 Continuous scale |
Continuous scale |
|||||
 |
 |
|||||
| Graduation: 0.01 mm, |
2046A-60 |
Graduation: 0.01 mm, | 2044A-60 | |||
| Measuring range: 10 mm |  |
Waterproof | Measuring range: 5 mm | |
Waterproof | |
 |
With damper at top rest point |
|
With damper at top rest point |
|||
 Balanced scale |
Continuous scale |
|||||
 |
 |
|||||
| Graduation: 0.001 mm, | 2109A-70 | Graduation: 0.001 mm, | 2110A-70 | |||
| Measuring range: 1 mm | |
Waterproof | Measuring range: 1 mm | |
Waterproof | |
 |
Shockproof |  |
Double scale spacing | |||
 |
Jeweled bearing | |
Shockproof | |||
|
Jeweled bearing | |||||
FEATURES
Metric
| Order No. | |
|
|
|
|
|
|
|
| w/lug | Flat-back | |||||||
| 2046A-60 | 2046AB-60 | √ | √ | √ | ||||
| 2044A-60 | 2044AB-60 | √ | √ | √ | ||||
| 2109A-70 | 2109AB-70 | √ | √ | √ | √ | |||
| 2110A-70 | 2110AB-70 | √ | √ | √ | √ | √ | ||
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Order No. | 2109A-70 (DG0.001-1MM) |
| Graduation | 0.001 mm |
| Range (range/rev) | 1 (0.2) mm |
| MPE measuring range | 5 μm |
| MPE Hysteresis | 2 μm |
| MPE Repeatability | 0.5 μm |
| Dial reading | 0-100-0 |
| Measuring force (N) | 2.0 or less |
| Order No. | A | B | C | D | E | F | G | H | I | Mass (g) | |
| w/lug | Flat-back | ||||||||||
| 2046A-60 | 47.2 | 74.7 | 57 | 18.1 | 20 | 12.3 | 33.9 | 52 | 7.6 | 147 | 138 |
| 2044A-60 | 47.2 | 70 | 57 | 18.1 | 20 | 12.3 | 29.2 | 52 | 7.6 | 147 | 138 |
| 2109A-70 | 47.2 | 65.3 | 57 | 18.1 | 20 | 12.3 | 24.5 | 52 | 7.6 | 149 | 140 |
| 2110A-70 | 47.2 | 67.5 | 57 | 18.1 | 20 | 12.3 | 26.7 | 52 | 7.6 | 150 | 141 |
