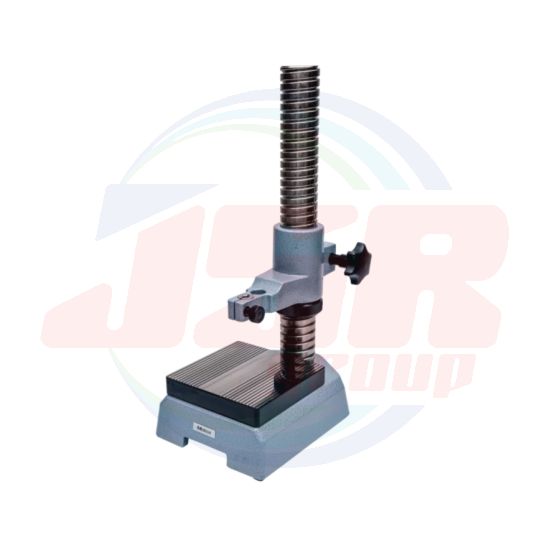

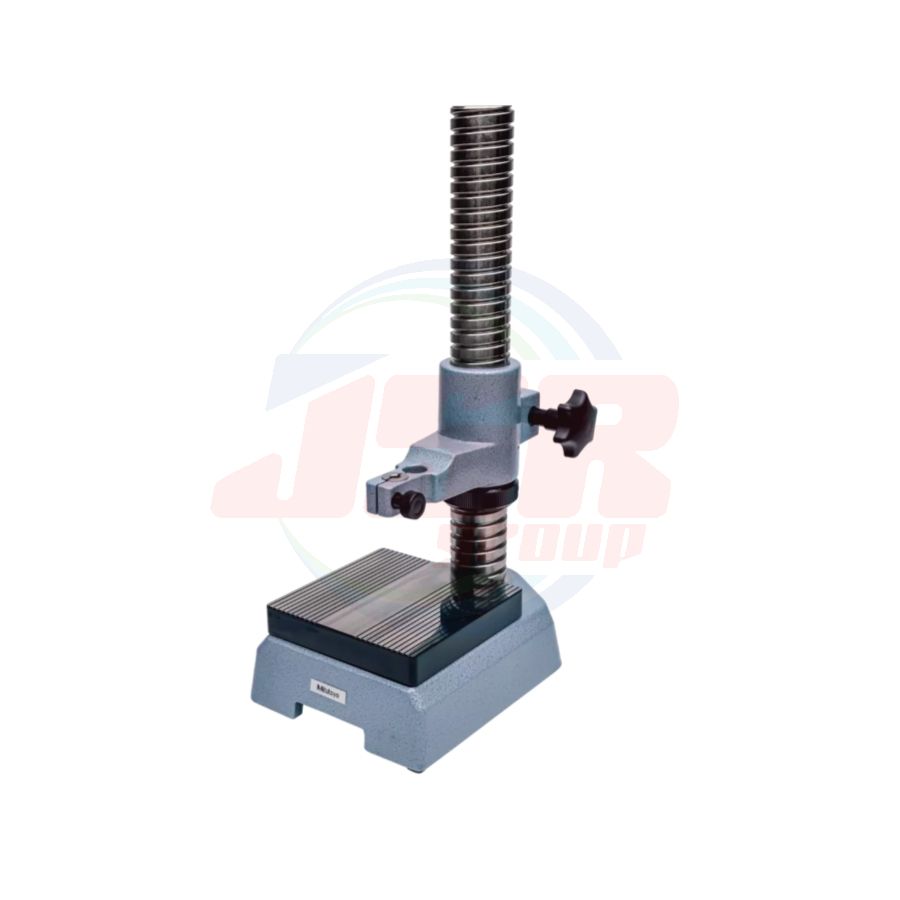

215-505-10 | SERIES 215 — Cast Iron Base Comparator Stands | MITUTOYO
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 14,622.43
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
215-505-10
QTY:
2
• Comparator Stands are designed for comparison measurements of size using a dial indicator or Digimatic Indicator.
• The partially serrated anvil prevents very flat workpieces from wringing to it.
| Order No. | Anvil | Clamping range on column (mm | Micromotion mechanism (Adjustment range)) |
Stem hole (mm) |
| 215-405-10 | Square semi-serrated anvil (110×110 mm) |
0 to 235 | Vertical fine adjustment (1 mm) |
ø0.375 in, ø8 with Bush |
| 215-505-10 | Square semi-serrated anvil (150×150 mm) |
0 to 275 | Micromotion screw | ø20, ø0.375 in with Bush, ø8 with Bush |
Note 1: Perpendicularity of the stem hole to the anvil is better than 0.4 mm/100 mm.
Note 2: Take note that when mounting high-accuracy Linear Gages (with resolution of 0.1 μm or better) to these stands, accuracy may be affected depending on the perpendicularity of the mounting hole to the top surface of the anvil (cosine effect).
Note 3: Compact dial indicators (bezel ø31, ø36) are not suitable for use with these stands.
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Magnetic Stands indicators | 215-505-10 |
| Anvil | Square semi-serrated anvil (150×150 mm) |
| Clamping range on column | 0 to 275 mm |
| Micromotion mechanism (Adjustment range) | Micromotion screw |
